AEM 30-5500

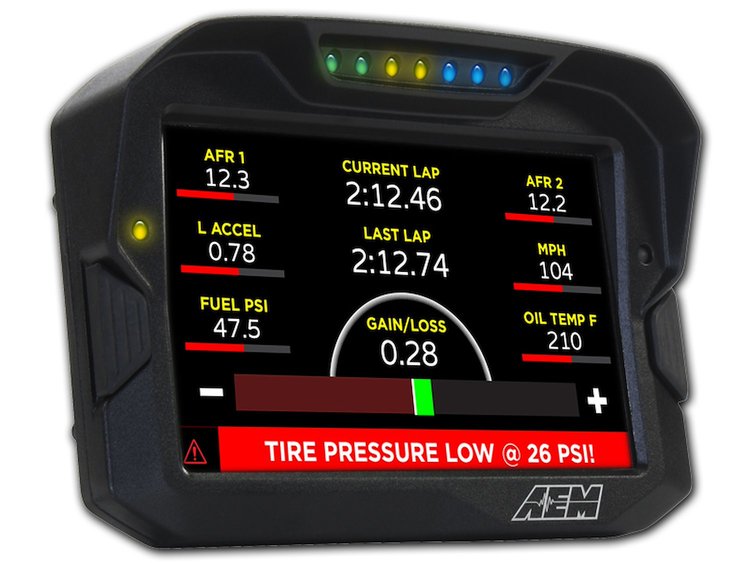

CD-7 Digital Display Racing Dash Non-Data Logging

AEM 30-5500


made in usa
jegs shipping
FREE Shipping
Estimated ship date 03/19/18 if Ordered Today
Easy Returns
Easy Returns
Lowest Price Guarantee
Lowest Price Guarantee
AEM 30-5500 CD-7 Digital Display Racing Dash Non-Data Logging $1,299.00
CD-7 Digital Display Racing Dash
  • Non-Data Logging
  • CAN Input Only
  • Harness & USB Cable

  • AEM 30-5500 Details

    Non-Data Logging Displays


    Manufacturer's Part Number:

    Plays well with others!

    The AEM CD-7 is designed to communicate all of AEM's CAN based products and has been validated and confirmed to work with over 150 third party applications with CAN connectivity. The CD-7 power cable and third part plug and play adapter cables for certain applications help to simplify the installation.

    CD-7 Digital Racing Dash Displays also feature a super bright, high contrast, sunlight readable display and include an integrated glare diffuser and shade hood. They are designed to accept channels from CAN bus connections and do not include analog inputs.

    Two CAN Bus Channels are included so that it can receive and collect data from AEMnet enabled devices such as the Infinity ECU, Series 2 EMS or EMS-4, and 3rd Party Devices, including PDM’s, CAN sensor modules and programmable engine management systems. The CD-7 is CAN ready and does not require external modules for CAN to CAN communication, just load your configuration and go! All channels can be named in virtually any language so that the information displayed makes sense to the user, whether on the main screens or warning alerts.

    Seven Ultra-Bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are also duplicated on the rear connector allowing the user to mount remote buttons on the steering wheel if desired. Two additional programmable LEDs are located above the toggle buttons on the sides of the housing.


    • Full color 7” screen with 800x480 resolution
    • Direct sunlight readable
    • Water resistance for boats and motorcycles
    • Accepts channels from two separate user programmable CAN bus connections
    • ECU CAN bus ready
    • Seven programmable pages
    • Dedicated Alarm page quickly identifies problems
    • Free DashDesign Graphics Editor software
    • Seven programmable and dimmable LED RPM/shift light indicators
    • Two programmable LEDs above toggle buttons
    • Over 200 supplied fully programmable warning icons, and you can add your own
    • ‘Headlight-in’ connection dims the dash and LEDs during night operation
    • Two extra switch inputs included for displaying user-triggered events
    • User supplied graphics can be changed based on channel values
