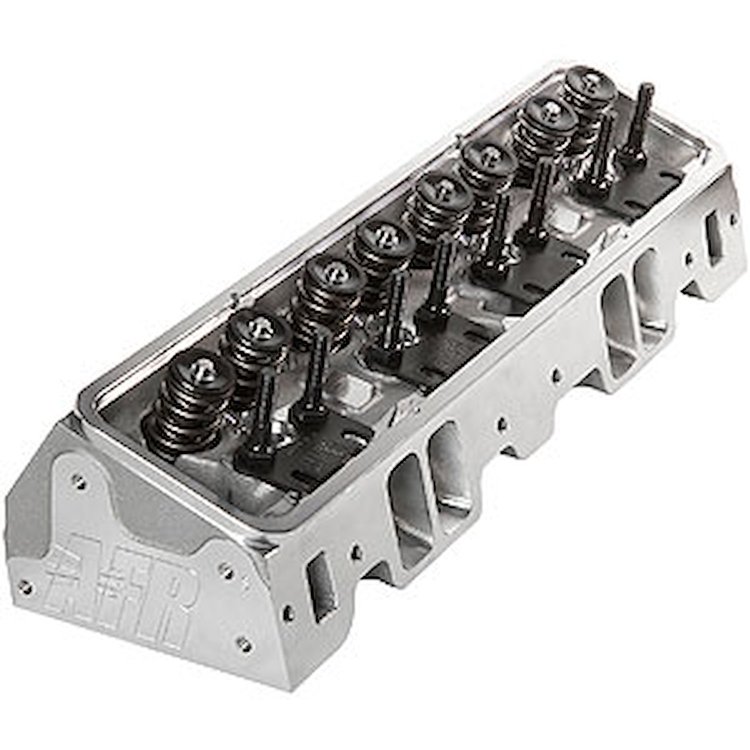

AFR - Airflow Research 1110 220cc Eliminator Race Aluminum Cylinder Heads Small Block Chevy
033-1110
Product Q&A
View Now
Items You Need
| Ratings |
|---|
| Price |
| Brand |
Competition Package Race Ready CNC Porting Eliminator Heads
| Small Block Chevy 220cc Eliminator Race Basic Package Components | |
| 100% CNC Ported Combustion Chambers | |
| 100% CNC Ported Exhaust Ports | |
| 100% CNC Ported Intake Ports | |
| Competition 5-Angle Valve Job | |
| Intake Valve, 2.100'' x 5.006'' o.a.l. | |
| Exhaust Valve, 1.600'' x 5.024'' o.a.l. | |
| 1.550'' OD Solid Roller Dual Valve Spring, 225 lbs. on seat, .710'' maximum lift, max RPM 7200-7400 | |
| 10º Manley 4140 Chrome Moly Retainers | |
| 10º Valve Locks | |
| 7/16'' Rocker Studs | |
| Adjustable 5/16'' Guide Plates | |
| Viton Valve Seals | |
| Hardened Spring Cups | |
| Intake Valve Seats | |
| Exhaust Valve Seats | |
| Bronze Valve Guides | |
| Small Block Chevy 220cc Eliminator Race Head Specifications | |
| Head Torque w/Moly Lube | 65-70 Ft. Lbs. |
| Rocker Stud Torque | 55 Ft. Lbs. |
| Intake Port Gasket, 1.310'' x 2.180'' w/ 3/8'' radius | Fel-Pro 375-1206 - DO NOT PORT MATCH Intake Manifold to Fel-Pro Gasket. |
| Exhaust Port Gasket | Fel Pro 375-1405 |
| Head Gasket | 350ci Fel Pro 375-1003 400ci Fel Pro 375-1014 |
| Head Bolts & Studs | Standard ARP |
| Head Bolt Washers | Manley Standard |
| Stud Girdle | Standard |
| Suggested Manifold | AFR p/n 033-4801, AFR p/n 033-4802 or Edelbrock Vic Jr p/n 350-2975 or Super Victor p/n 350-2925 |
| Spark Plug Starting Range | Autolite 3910 |
| Combustion Chambers | 65cc |
| Intake Port | 220cc |
| Exhaust Port | 80cc |
| Spring Pocket can be cut to 1.750, no deeper. | |
| Valve Spacing | Standard GM |
| Rocker Arms | Standard |
| Valve Angle | 23° |
| Angle Mill | .008'' per cc |
| Flat Mill | .006'' per cc |
| NOTE: | Flat and Angle mills might require a .120'' thick head gasket. |
