Blueprint Engines BP3472CT

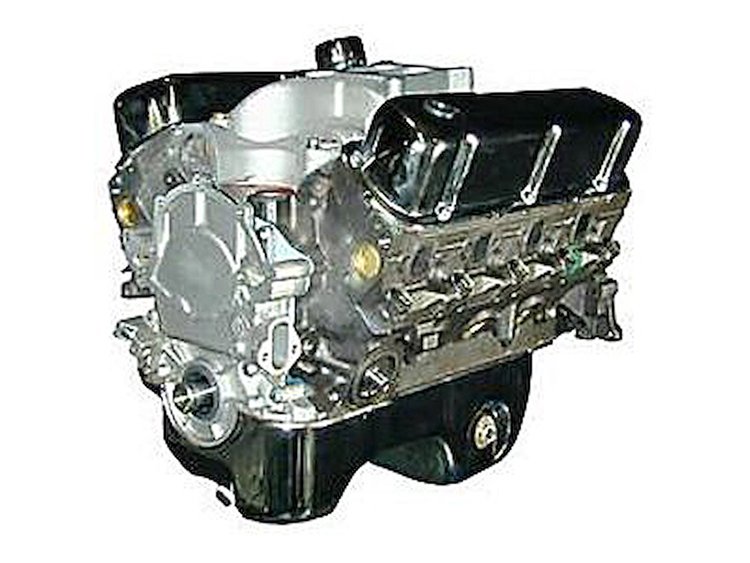

Small Block Ford 347ci Base Engine 330HP/380TQ

Blueprint Engines BP3472CT

138-BP3472CT

made in usa
jegs shipping
Estimated ship date 03/07/18 if Ordered Today
Easy Returns
Easy Returns
Lowest Price Guarantee
Lowest Price Guarantee
Truck Freight: $159.00
Blueprint Engines BP3472CT Small Block Ford 347ci Base Engine 330HP/380TQ $3,750.00
Small Block Ford 347ci Base Engine
  • 330HP/380TQ

  • Specifications:

    Engine Balance (oz.)
    External, 28 imbalance
    Engine Make/Size
    Ford Small Block
    Engine Assembly Style
    Long block
    Engine Balance
    External, 28 imbalance
    Assembled
    Yes
    RPM Power Range
    1800-5800
    Horsepower
    330
    Cylinder Heads Included
    Yes
    Crate Engine Cylinder Head Material
    Cast iron
    Camshaft Style
    Hydraulic roller tappet
    Intake Manifold Included
    Yes
    Carburetor Included
    No
    Distributor Included
    No
    Throttle Body Included
    No
    Oil Pan Included
    Yes
    Timing Cover Included
    Yes
    Water Pump Included
    No
    Harmonic Balancer Included
    No
    Valve Covers Included
    Yes
    Flexplate Included
    No
    Flywheel Included
    No
    Air Cleaner Included
    No
    Spark Plugs Included
    No
    Spark Plug Wires Included
    No
    Computer Included
    No
    Wiring Harness Included
    No
    Rear Main Seal Style
    1-piece
    Quantity
    Sold individually
    Emission
    Not Legal
    CARB EO Number
    N/A
    CARB EO Number
    N/A
    Manufacturer's Part Number:
    BP3472CT

    Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
    Best of all they feature a 30 month/50,000 mile warranty.

    Recommended Stall Converter: 1800-2200 rpm
    Recommended Fuel: 91 Octane

    Block:

    • Seasoned block bored .040'' over
    • Square and parallel decked
    • Align honed main bearing bore
    • Cylinders are sonic tested for thickness
    • Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness

      Rotating Assembly:
    • New cast iron 3.4'' stroke crankshaft
    • New 5.4'' rods with 150,000psi bolts
    • Keith Black hypereutectic pistons
    • Hastings Moly rings
    • Clevite bearings
    • Balanced rotating assembly (28.4oz external)
    • Melling high volume oil pump
    • Heavy duty double roller timing set

      Cylinder Heads:
    • Modified Ford cast iron heads
    • Hardened retainers and 1.437'' springs
    • 1.94'' swirl polished intake valves
    • 1.60'' swirl polished exhaust valves
    • Hardened pushrods

      Camshaft Specs:
    • Hydraulic Flat Tappet
    • Duration @ .050'' Lift: 224 Intake / 234 Exhaust
    • Lift: .496'' Intake / .520'' Exhaust
    • Lobe Separation: 110°

      Other Features:
    • Professional Products dual-plane satin aluminum intake
    • Chrome steel valve covers
    • New 5-quart rear sump oil pan
    • Brass freeze plugs
    • 9.5:1 compression

      Dress Model Adds:
    • Holley 600 cfm Electric Choke Vacuum Secondary Aluminum Street Carburetor - 510-0-80457SA
    • Edelbrock Standard Rotation Water Pump
    • Edelbrock Fuel Pump
    • MSD Distributor
    • MSD Coil
    • MSD Spark Plug Wires
    • Professional Products Harmonic Balancer
    • Braided Fuel Line



      Note: Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

    • Part Number: BP3472CT
    • Fuel Delivery Type: Carbureted, 600cfm
    • Spark Plug: NGK 2817
    • Spark Plug Gap: .045"
    • Harmonic Balancer: 28.4 Ounce, 6.4" Diameter
    • Flexplate/Flywheel: 28.4 Ounce Weighted
    • Intake Manifold: Dual plane
    • Fuel Recommendation: 91 Octane
    • Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
    • Firing Order: 1-3-7-2-6-5-4-8

    JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

    I have a 66 mustang 289 will my ac and steering pump bolt on this engine. My oil stick is in the timing cover

    Asked by: Billy b
    Yes, those accessories should bolt to this engine.
    Answered by: Rusty B
    Date published: 2017-12-22

    Will this fit in a1966 mustang with this oil pan. Will 1966 28 oz. flywheel and harmonic balancer be ok

    Asked by: Doug57
    Oil pan installed on this motor will not fit your 66 Mustang Chassis, this you will need to change. You are able to use your 28 oz flywheel and damper.
    Answered by: Jegs Tech
    Date published: 2017-08-22
