Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC1635LP

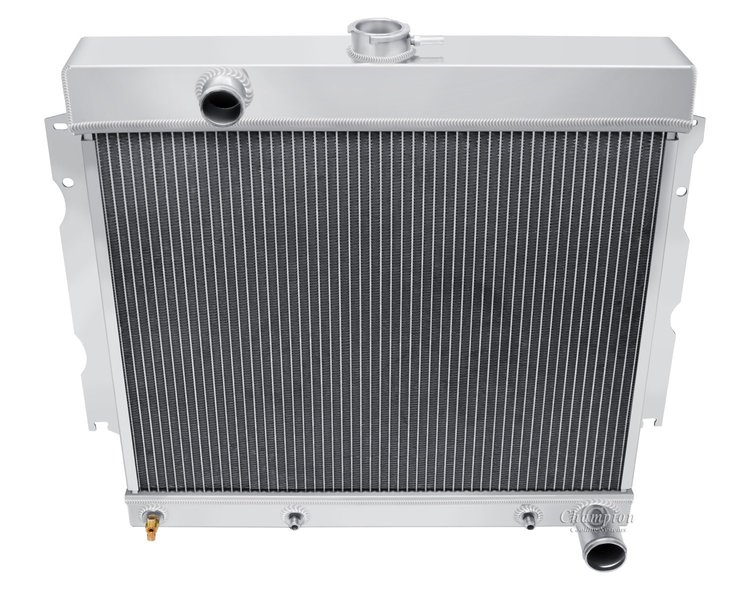

All-Aluminum Radiator 1963-1967 Mopar Small Block 318/340/360 V8
$25499
Ships on Sep 11, 2026
Lowest Price GuaranteeDodge
All-Aluminum Radiator1963-1967 Mopar For Small Block 318/340/360 V8 with Passenger Side Water Pump Outlet Champion Core 3-Row Radiator Cap Included
Features:
- All-aluminum design with 3-rows of 5/8 in. (.625) tubing
- Brazed core technology with welded seams (no epoxy)
- Billet fill neck
- Max cool louvered fin technology
- Tubes are spaced 3/8 (.375) in. apart
- OEM style brass petcock
- Mounts with brackets
- Transmission cooler fittings: 1/2-20 male unified screw thread (UNF)
- 16 lbs. standard radiator cap included
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height8.0
Package Width25.0
Package Length39.0
Weight30.0 PG
Overall Height23.75 in (603.3 mm)
Outlet Size1.5 in (38.1 mm)
Radiator Cap IncludedYes
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold individually
Mounting Hardware IncludedNo
Inlet LocationUpper
Inlet Size (In.)1.50
Core Height17.5 in (444.5 mm)
Mounting Brackets IncludedNo
Core Width22 in (558.8 mm)
Row Quantity3
Outlet LocationLower
Overall Width26 in (660.4 mm)
Radiator FinishPolished
Fan IncludedNo
Part FitmentDirect Fit
Radiator StyleCrossflow
Vendor Part NumberCC1635LP
Package Qty1
Package TypeEA
