Chevrolet Performance 19301326

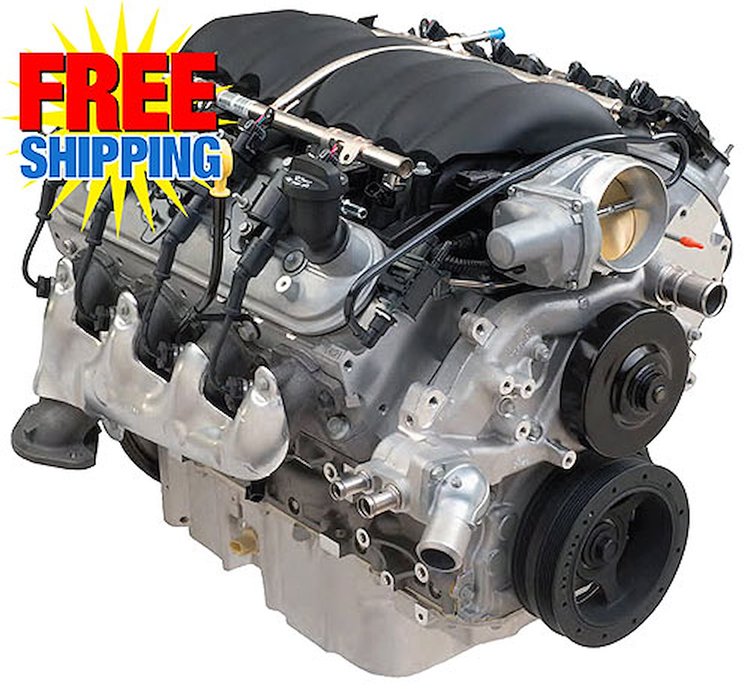

LS3 6.2L 376ci Engine w/ Aluminum Heads 430 HP @ 5900 RPM

Chevrolet Performance 19301326
Chevrolet Performance® Crate Engine or Transmission Rebate
Expires on December 31, 2017

Purchase a qualifying Chevrolet Performance crate engine or Chevrolet Performance transmission and receive a $250 Chevrolet Performance Visa Prepaid Card!

View All Chevrolet Performance products

809-19301326

jegs shipping
FREE Shipping
Ships
Easy Returns
Easy Returns
Lowest Price Guarantee
Lowest Price Guarantee
Please login to receive private and specific offers Click Here
Chevrolet Performance 19301326 LS3 6.2L 376ci Engine w/ Aluminum Heads 430 HP @ 5900 RPM $6,979.77
LS3 6.2L 376ci Engine
  • 430 HP @ 5900 RPM
  • 425 ft/lbs TQ @ 4600 RPM
  • Aluminum Cylinder Heads

  • Chevrolet Performance 19301326 Details

    LS3 6.2L 376ci Base Engine

    Installation Notes:

    • Corvette 14-inch automatic transmission flexplate included
    • Non-Corvette applications require flexplate - - 809-12602448 or 555-601060
    • Assembly does not include any electronics
    • LS3 Controller Kit - p/n 809-19258270, available for non-Corvette/Camaro SS applications. Kit includes electronic throttle pedal, which is required for throttle input to the ECU.
    • Includes Chevy SS mid wet sump oil pan installed. This oil pan will ONLY fit 2010-15 Camaro SS/ZL1, 2012-15 Caprice PPV, 2014-15 Chevy SS, 2008-09 Pontiac G8 chassis. THIS INSTALLED OIL PAN WILL NOT WORK WITH MUSCLE CAR LS ENGINE SWAPS. OIL PAN CHANGE IS REQUIRED FOR MUSCLE CAR LS ENGINE SWAPS. (Click here to see oil pan dimensions)
    • Not intended for marine applications

    Specifications:

    Flywheel Included
    No
    Engine Balance
    Internal
    Wiring Harness Included
    No
    Air Cleaner Included
    No
    Assembled
    Yes
    Carburetor Included
    No
    Computer Included
    No
    Crate Engine Cylinder Head Material
    Aluminum
    Cylinder Heads Included
    Yes
    Distributor Included
    Yes
    Engine Assembly Style
    Long block
    Flexplate Included
    Yes
    Harmonic Balancer Included
    Yes
    Intake Manifold Included
    Yes
    Oil Pan Included
    Yes
    Quantity
    Sold individually
    Spark Plug Wires Included
    Yes
    Spark Plugs Included
    Yes
    Throttle Body Included
    Yes
    Timing Cover Included
    Yes
    Valve Covers Included
    Yes
    Water Pump Included
    Yes
    Rear Main Seal Style
    1-piece
    Manufacturer's Part Number:
    19301326

    The LS3...A New Classic!

    Free Shipping!

    As the standard engine in the fifth-generation Camaro SS and C6 Corvette, the high-revving, deep-breathing LS3 6.2L is poised to go down in history as one of Chevrolet's best and most versatile engines. It's no surprise that enthusiasts and builders have made it one of the most popular LS swap engines. It's a brute of a small block with 376 cubic inches just waiting for you.

    The LS series engine has broken new ground for efficiency and performance from a pushrod platform engine. The LS3 is filled with components designed for high performance and longevity. In the bottom end, the aluminum 6-bolts/main block features 4.065-inch bores and 3.622-inch stroke. A nodular iron crankshaft, powdered metal rods, and aluminum pistons (10.7:1 compression ratio) round out a rev-happy short block. The sturdy reciprocating assembly combined with L92-type rectangular-port heads deliver a 10.7:1 compression ratio. A high-lift, hydraulic roller camshaft complements the LS3's tremendous airflow capability and enhances its broad torque curve. Out-of-the-crate Horsepower is 430, with an impressive 425 lb.-ft. torque.

    This LS3 crate engine comes complete from the SS-specific oil pan to the ignition system. It also includes the intake manifold assembly with injectors and throttle body, exhaust manifolds, water pump, balancer, 58x reluctor wheel and 14-inch automatic-transmission flexplate. The SS oil pan doesn't suit all applications. So you will need to use the vehicle specific oil pan for original LS-powered vehicles or Chevrolet Performance's Muscle Car Oil Pan Kit (p/n 809-19212593) for older vehicles.

    LS3 6.2L TECH SPECS
  • Engine Type: LS-Series Gen IV Small-Block V-8
  • Displacement: 376ci (6.2L)
  • Bore x Stroke: 4.065'' x 3.622'' (103.25 x 92mm)
  • Block: Cast-aluminum with six-bolt, cross-bolted main caps
  • Crankshaft: Nodular iron
  • Connecting Rods: Powdered metal
  • Pistons: Hypereutectic aluminum
  • Camshaft Type: Hydraulic roller
  • Valve Lift: .551'' intake / .522'' exhaust
  • Camshaft Duration (@.050 in.): 204° intake / 211° exhaust
  • Cylinder Heads: Aluminum L92-style port; ''as cast'' with 68cc chambers
  • Valve Size: 2.165'' intake / 1.590'' exhaust
  • Compression Ratio: 10.7:1
  • Rocker Arms: Investment-cast, roller trunnion
  • Rocker Arm Ratio: 1.7:1
  • Recommended Fuel: 92 octane
  • Maximum Recommended rpm: 6600
  • Reluctor Wheel: 58X
  • Balanced: Internal
  • JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

    GM Warranty

    19301326 - Chevrolet Performance LS3 6.2L 430HP Crate Engine is rated 4.5 out of 5 by 2.
    Rated 5 out of 5 by from Love Love Love my new LS3 Love Love Love my new LS3. I put it in my 1966 C10 truck and it's truly a dream to drive. I can travel across country or cruise the country, my wife love's it and that's truly sweet.
    Date published: 2017-09-15
    Rated 4 out of 5 by from Good Value I would have liked to have seen more documentation with the engine, i.e. warranty information. Had to go to web site for info.
    Date published: 2016-10-19
    • y_2017, m_11, d_20, h_24
    • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
    • cp_1, bvpage1
    • co_hasreviews, tv_0, tr_2
    • loc_en_US, sid_10001_10001_2835871, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_jegs

    Does this come with the coil packs? Also is there a list of what sensors are included installed?

    Asked by: Rich123
    Please refer to the instruction tab on the web page for more information.
    Answered by: Rusty B
    Date published: 2017-10-27

    Will this fit in a 1994 chevy lumina z34 ?

    Asked by: Marky dee
    No, the Lumina is a front wheel drive car, these engines are designed for rear wheel drive applications.
    Answered by: Rusty B
    Date published: 2017-09-21
