Chevrolet Performance 88890534

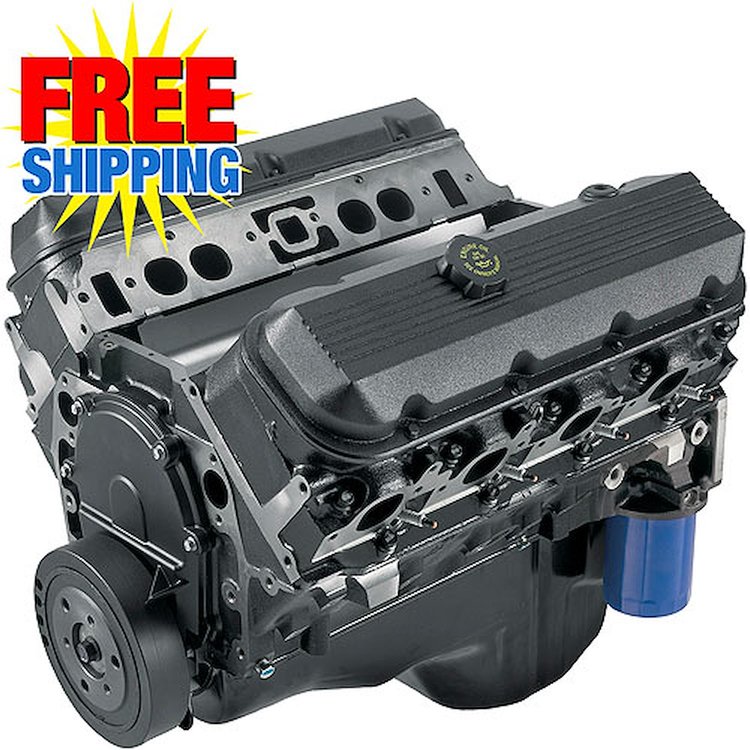

HT502 502ci Truck Engine 406 HP @ 4200 RPM

Chevrolet Performance 88890534

809-88890534

jegs shipping
FREE Shipping
Ships 12/12/16 if Ordered Today
Chevrolet Performance 88890534 HT502 502ci Truck Engine 406 HP @ 4200 RPM $6,063.34
HT502 502ci Truck Engine
  • 406 HP @ 4200 RPM
  • 541 ft/lbs TQ @ 3200 RPM

  • Chevrolet Performance 88890534 Details

    INSTALLATION NOTES:
  • New block casting incorporates the best designs of Mark IV and Gen VI. New water jackets for use with Mark IV or Gen Vi cylinder heads.
  • Requires the addition of carburetor, intake manifold, water pump, fuel pump, starter, distributor and ignition system (not included)
  • Clutch linkage bosses are now drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads, for clearance
  • 502 engines now have a mechanical fuel pump boss! (NOTE: There is NO fuel pump lobe behind the boss)
  • Comes with an externally balanced 14'' automatic transmission flexplate. Use externally balanced flywheel P/N 809-14096987 and 11'' clutch assembly for manual transmission applications
  • Designed for pre-1976 street vehicles or any off-road vehicle
  • Not intended for marine applications

  • Specifications:

    Flywheel Included
    No
    Engine Balance
    External
    Wiring Harness Included
    No
    Air Cleaner Included
    No
    Assembled
    Yes
    Carburetor Included
    No
    Computer Included
    No
    Crate Engine Cylinder Head Material
    Cast iron
    Cylinder Heads Included
    Yes
    Distributor Included
    No
    Engine Assembly Style
    Long block
    Flexplate Included
    Yes
    Harmonic Balancer Included
    Yes
    Intake Manifold Included
    No
    Oil Pan Included
    Yes
    Quantity
    Sold individually
    Spark Plug Wires Included
    No
    Spark Plugs Included
    Yes
    Throttle Body Included
    No
    Timing Cover Included
    Yes
    Valve Covers Included
    Yes
    Water Pump Included
    No
    Rear Main Seal Style
    1-piece
    Manufacturer's Part Number:
    88890534

    An Affordable, Big-Inch Alternative to Rebuilding

    Free Shipping!

    Don't bother repowering your trusty Big-Block-powered truck with a rebuild or reconditioned used engine. Chevrolet Performance HT502 crate engine is an affordable alternative with more power and greater durability, including a whopping 541 lb.-ft. of trailer-tugging torque. That's more than the factory ever offered and more than you'll get with a stock-type rebuild.

    It is uniquely suited to pre-1978 trucks, but is adaptable to a variety of applications, and it's built with the latest-generation block casting with four-bolt main caps. An all-forged rotating assembly delivers exceptional strength and durability, while a mild 8.75:1 compression ratio is suitable for regular pump gasoline at all altitudes and engine loads.

    This assembly comes with the heads and a balancer installed. An induction system, ignition, starter, water pump and other accessories are required to finish the engine. All necessary components are available, here at JEGS.com or you can give one of our technical specialist a call at 1-800-345-4545.

    HT502 TECH SPECS:
  • Engine Type: Chevy Big-Block V-8
  • Displacement: 502ci
  • Bore x Stroke: 4.470'' x 4.000''
  • Block: Cast-iron with four-bolt main caps
  • Crankshaft: Forged steel
  • Connecting Rods: Forged steel, shot peened
  • Pistons: Forged aluminum
  • Camshaft Type: Hydraulic roller
  • Camshaft Lift: .480'' intake / .483'' exhaust
  • Camshaft Duration (@.050 in.): 204° intake / 209° exhaust
  • Cylinder Heads: Iron oval port, 118cc combustion chambers
  • Valve Size: 2.070'' intake / 1.730'' exhaust
  • Compression Ratio: 8.75:1
  • Rocker Arms: Stamped steel
  • Rocker Arm Ratio: 1.7:1
  • Flexplate: 14'' diameter, externally balanced
  • Recommended Fuel: Regular pump (89 octane)
  • Ignition Timing: 34° Total at 4000 rpm
  • Maximum Recommended RPM: 5500
  • Balanced: External
  • GM Warranty
