Edelbrock 1805 - Edelbrock Thunder Series AVS Carburetors



Edelbrock 1805 - Edelbrock Thunder Series AVS Carburetors
Edelbrock 1805 - Edelbrock Thunder Series AVS Carburetors

JEGS Part Number: 350-1805

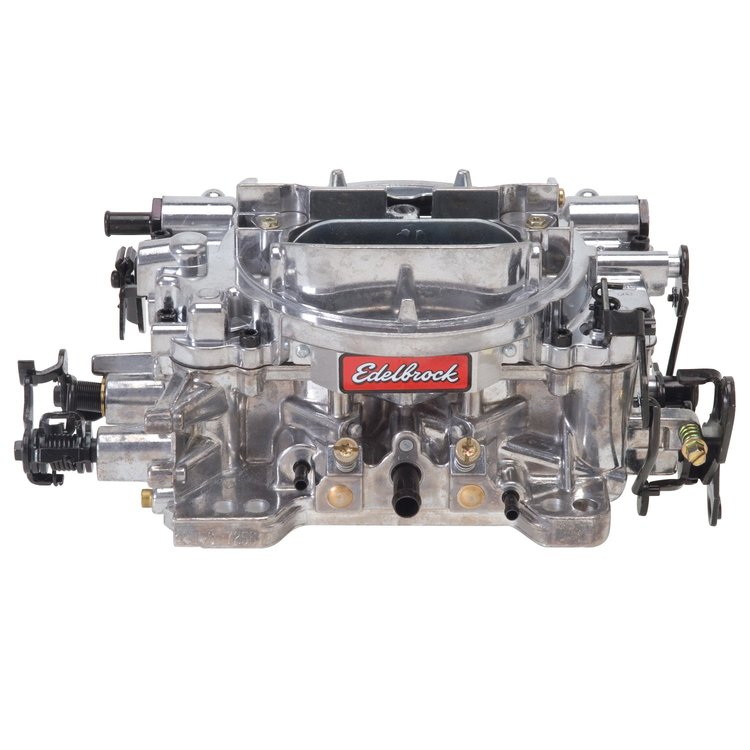

Thunder Series AVS Carburetor
  • 650 CFM
  • Manual Choke
  • Satin Finish
    • Fits Applications:
    • 1977-1980
      BUICK
      1961-1984
      CADILLAC
      1986-1990
      CADILLAC
    • Click to see All

    Edelbrock 1805 Details

    650 CFM Carburetors

    Includes: Metering Jets- Primary .095", Secondary .098"; Metering Rods - .068" x .047:; Step-Up Springs - Orange (5" Hg).

    Edelbrock Thunder Series AVS Carburetors

    The Best "Street Performance" Carburetor

    Edelbrock engineers have made a great carburetor even better. The new and exciting Thunder Series AVS carbs are designed and calibrated to deliver optimum street performance in hundreds of applications--they are undeniably the most innovative and dependable street performance carburetors available today. AVS stands for Adjustable Valve Secondary, which means just that--you have the ability to adjust the secondaries with simple tools (no springs required).
    You can use a late opening for heavy vehicles with higher gears or an early opening for light vehicles with lower gears. For unmatched street performance, combine these carburetors with Edelbrock Performer, Performer Air-Gap, Performer EPS, Performer RPM, RPM Air-Gap, or Torker II manifold and camshaft combinations.


    Thunder Series AVS Carburetors:
    • All the same advantages of the Edelbrock Performer Series, such as factory-set float levels for infrequent adjustments, 2-step metering rods for independent tuning of cruise and power circuits, and the ability to change jets, adjust floats, or replace needles without draining fuel
    • Qwik-Tune secondary air valve
    • A sturdy 2-piece body with no power valves to blow and no gasket below the fuel level for leak-free operation
    • CNC-machined and profiled front face delivers a smooth, custom look
    • Satin or Endurashine finish
    • Spring-loaded needles and seats for consistent fuel supply over rough terrain and side-mounted fuel chambers that are less likely to flood when a vehicle climbs hills (ideal for off-roading and the 4x4 environment)
    • Optional single or dual inlet for total fuel plumbing flexibility
    • Available in 500, 650, and 800cfm with either manual or electric choke
    • Manual AVS carbs cannot be converted to electric choke
    • Installation and Tuning DVD included.

    These kits, put together by JEGS Professionals, include Edelbrock Thunder Series AVS Carburetor, Edelbrock Carburetor Dual Feed Fuel Line Kit,JEGS Carburetor Stud Kit and JEGS 14'' Performance Chrome Air Cleaner


    Edelbrock Carburetor
    Application Guide

    Items similar to Edelbrock 1805

    Edelbrock 1805

    CFM
    650
    Type
    Automotive
    Barrel
    Four
    Choke
    Manual
    Flange
    Square Bore
    Emission
    Without EGR
    Finish
    Anodized
    Usage
    Street/Hi-Performance
    New Or Remanufactured
    New
    Carburetor Finish
    Silver
    Carburetor Flange
    Square bore
    Ford Kickdown
    No
    Fuel
    Gasoline
    Number of Barrels
    4
    Quantity
    Sold individually
    Secondary Type
    Air valve
    Throttle Linkage Type
    Universal
    Fuel Inlet
    Single
    Manufacturer's Part Number:
    1805
    Rated 5 out of 5 by from Very good carb. Like the old AFB carb. I had a Holley and never could it right and I did not like the vacum secondary's. Now with carb. When I put it to the floor I got all barrels open. No delay and easy to adjut
    Date published: 2015-09-05
    Rated 5 out of 5 by from nice carb! put this carb. on my 53 olds. super 88. had to wait for the adapter to get here. car runs like a champ. now! thanx, a great deal!!!
    Date published: 2015-02-18
    Rated 4 out of 5 by from overall good just getting used to it Overall great carb if you know about manual choke but little hectic since I didn't know about them but it's a good buy
    Date published: 2016-01-20
    Rated 1 out of 5 by from Seems to have been refurbished.Not what I had expected. But works
    Date published: 2016-03-20
