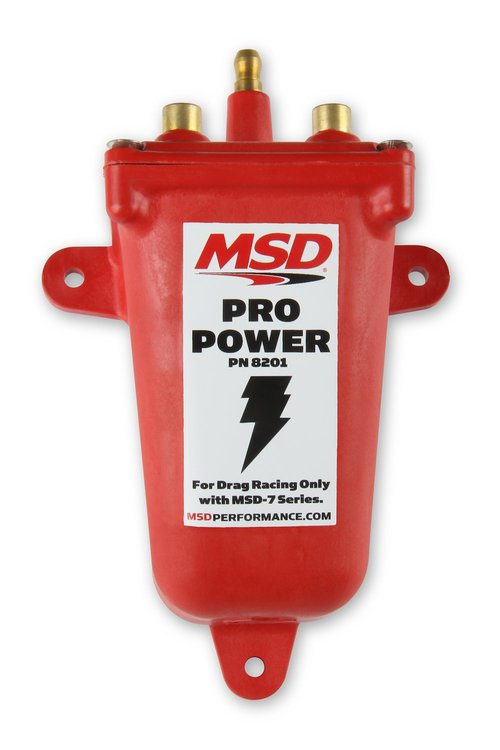

MSD Ignition 8201

Pro Power Coil For MSD 7AL, 8 and 10-Series Ignitions Only

MSD Ignition 8201

121-8201

jegs shipping
FREE Shipping
Ships
$127.95
$115.16
ON SALE - $12.79 OFF
MSD Ignition 8201 Pro Power Coil For MSD 7AL, 8 and 10-Series Ignitions Only $115.16
Pro Power Coil
  • For MSD 7AL, 8 and 10-Series Ignitions Only

  • MSD Ignition 8201 Details

    Pro Power Coil

    Note: Not legal for sale or use on pollution-controlled vehicles.

    Coil Specifications
  • Turns Ratio: 100:1
  • Primary Resistance: .03 ohms
  • Secondary Resistance: 1K ohms
  • Inductance: 1 mH
  • Maximum Voltage: 55,000 Volts
  • Peak Current: 800 mA
  • Spark Duration: 180 us

  • Specifications:

    Height (in.)
    2.5
    Overall Length (in.)
    5.25
    Width (in.)
    9.375
    Mounting Bracket Included
    No
    Coil Wire Included
    No
    Ballast Resistor Included
    No
    Coil Color
    Red
    Coil Internal Construction
    Ciba arathane
    Coil Style
    Canister
    Coil Wire Attachment
    Male/HEI
    Inductance
    1.0 mH
    Maximum Voltage
    55,000 V
    Peak Current
    800 mA
    Primary Resistance
    0.030 ohms
    Quantity
    Sold individually
    Secondary Resistance
    1.00K ohms
    Spark Duration
    180 uS
    Turns Ratio
    100:01:00
    Coil Shape
    Triangular
    Manufacturer's Part Number:
    8201

    The MSD Pro Power Coil is the best choice for short duration applications when MSD 7 or 8 series ignitions are being used. The special coil windings produce the highest voltage and spark energy possible. Other features include rubber shock mounts and wide spaced, screw-type primary wire connectors. The extra tall, high tension spark plug tower uses a spark plug type connector for tight connection and prevents arcing between the primary terminals. Oil-filled, polyester case is a superior spark isolating material which insures that the spark leaves through the high tension tower and not the side of the coil.

    Features:
  • For MSD 7AL & 8-Series Ignitions Only
  • Short Duration Racing Applications Only

    Notes:
  • Not for Use with MSD 6 or Digital-7 Series Ignitions
  • Not for Use on Street Vehicles
  • Not Legal for Sale or Use on Pollution-Controlled Vehicles

    JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.

  • 8201 - MSD Pro Power Ignition Coil is rated 5.0 out of 5 by 1.
    • 2016-12-04T08:35CST
    • bvseo_cps, prod_bvrr, vn_cps_3.4.0
    • cp_1, bvpage1
    • co_hasreviews, tv_0, tr_1
    • loc_en_US, sid_10001_10001_20518, PRD, sort_relevancy
    • clientName_jegs
    Rated 5 out of 5 by from works great My old coil was over twenty years old, works fine still just thought I would make it a spare.
    Date published: 2016-09-14
