Vehicle Info NeededMILODONPART NUMBER: 697-31169

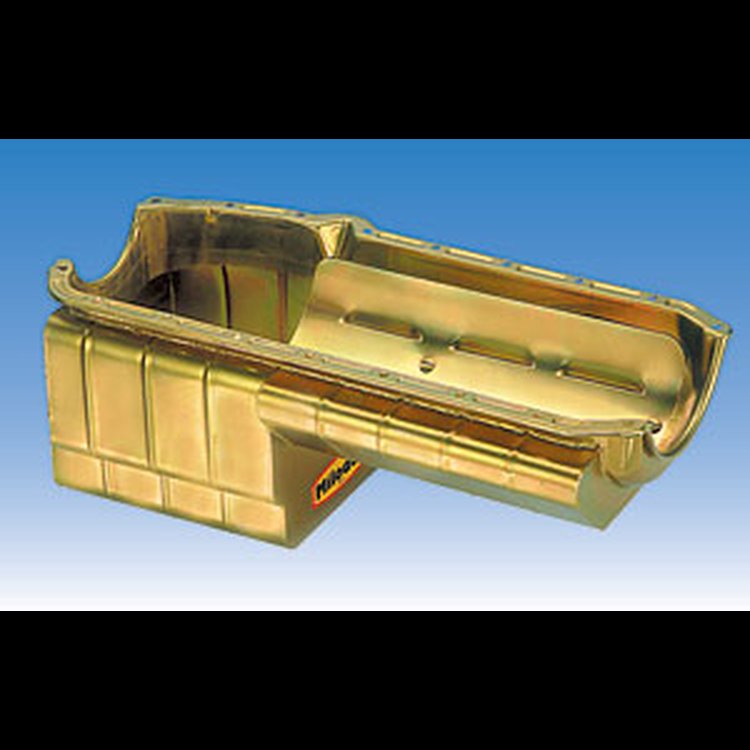

Drag Racing Oil Pan Small Block Chevy (1980-85) & Dart SHP Block
$65995
Ships on 09/14/2026
Lowest Price GuaranteeSmall Block Chevy
- Drag Racing Oil Pan
- Small Block Chevy (1980-85) & Dart SHP Block
- Right Hand Dipstick
- Pan Capacity: 5 Quarts Plus Filter
- Front Depth: 4-1/4"
- Rear Depth: 8-1/4"
Used in stock framed cars where maximum power output is needed. Designed to fit into cross membered cars such as Camaros and Chevelles with only a reasonable amount of cross member modification. This horsepower style pan incorporates lightweight, steel construction with a full kick-out and full-length louvered tray assembly which gives maximum horsepower output.
Part TypeOil Pan
BrandMILODON
Package Height8.8
Package Width12.4
Package Length25.3
Weight13.35 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishGold iridited
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod4 in (101.6 mm)
Gaskets IncludedNo
Oil Pan Depth8.25 in (209.6 mm)
Rear Main Seal Style2-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedYes
Dipstick LocationPassenger side
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number31169
Package Qty1
Package TypeEA
