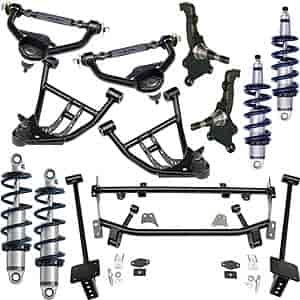

COMPLETE Coil-Over Suspension System

The Ridetech coil-over package includes everything you need to completely upgrade your existing suspension. The package contains front upper and lower control-arms, a rear 4-link, and coil-overs for every corner of your vehicle. The benefit of buying a complete suspension system is that it takes out all of the guess work when piecing together new suspension components. RideTech has spent numerous hours collecting data to find a perfect spring rate and components for your vehicle's performance and ride quality.
The new tall spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2-inch pin drop which allows for the use of longer shocks creating more suspension travel. The upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. The lower StrongArms feature a double sheer lower mount for increased strength. Ridetech has also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. The StrongArms feature injection molded Delrin bushings with 13% PTFE are used to reduce deflection and stiction. The front MucleBar helps reduce body roll and creates room for wider front tires. It includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms. The Bolt On 4-Link greatly improves traction, handling and ride quality. Installation does not require the any major modifications to the floor pan and requires only minimal welding to the axle tube. Works with minitubs. It eliminates the oem leafspring and replaces them with a 4-link rear suspension and the single adjustable coil-over shock absorber. The 4-link bars offer more precise positioning of the rear axle to eliminate flexing and increase stability through the corners. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!

HQ-Series Single-Adjustable Shock package

The Handling Quality ("HQ") series shocks are the heart of this RideTech coilover system. It features adjustable shock valving with 26-clicks of rebound adjustment to help you dial-in ride quality and fine tune handling characteristics. HQ Series CoilOvers utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty. Click here to view shock specs.

FRONT components: HQ-Series Aluminum Monotube Coil-Over Shocks & Springs Upper & Lower StrongArms Taller 2" Drop Spindles Front MuscleBar Sway Bar System

REAR components: HQ-Series Aluminum Monotube Coil-Over Shocks & Springs Bolt-On 4-link Rear Suspension
