U.S. Wheel Cast Aluminum Honeycomb Wheel (Series 379) 1971-72 GTO and 1971-76 Trans Am

947-379-8934


Product Q&A
View Now
Click image to zoom

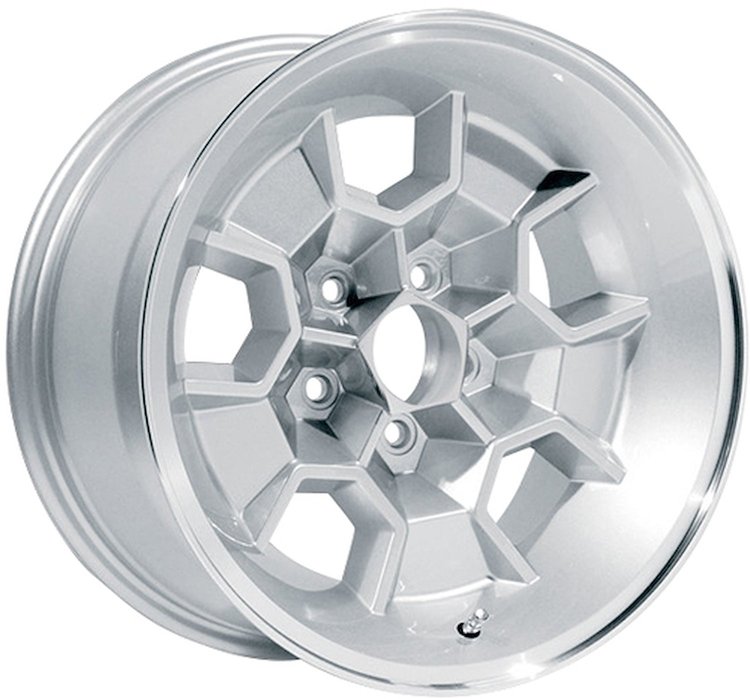

Cast Aluminum Honeycomb Wheel (Series 379) 1971-72 GTO and 1971-76 Trans Am
Cast Aluminum Honeycomb Wheel (Series 379)
  • 1971-72 GTO and 1971-76 Trans Am
  • Size: 17" x 9"
  • Bolt Circle: 5 on 4.75"
  • Back Spacing: 5.125"
  • Offset: 3mm
  • Center Bore: 72.6mm
  • Load Rating: 1900 lbs
  • Currently unavailable.
    This product is not available, please call customer service for options, at 1-800-345-4545.

    Items You May Also Consider

    Recently Viewed

    Wheel offset according to the post is 3mm? The numbers don’t ad up. A 9” wide wheel with a backspacing documented as 5.125” should have an offset of  .625” or 15.875mm or os the documented backspacing wrong?  Thanks

    Asked by: 1959Brookwood
    I did confirm with the manufacturer that these specs are correct. The 9" wheel width is measured from one tire bead to the other. When you measure for backspace, you measure from the inner edge of the wheel to the of the backside mounting face, this is where most of the offset to backspace confusion occurs because you're measuring past the point of where wheel width is measured. Offset is measured from the wheels center line to the mounting face and how much it has moved from it's center line.
    Answered by: Allen_S
    Date published: 2018-04-07
