ATK Engines Remanufactured Crate Engine for 1999-2007 Chevy/GMC Truck, SUV, & Van with 5.3L V8


made in usa

Product Q&A
View Now
Click image to zoom

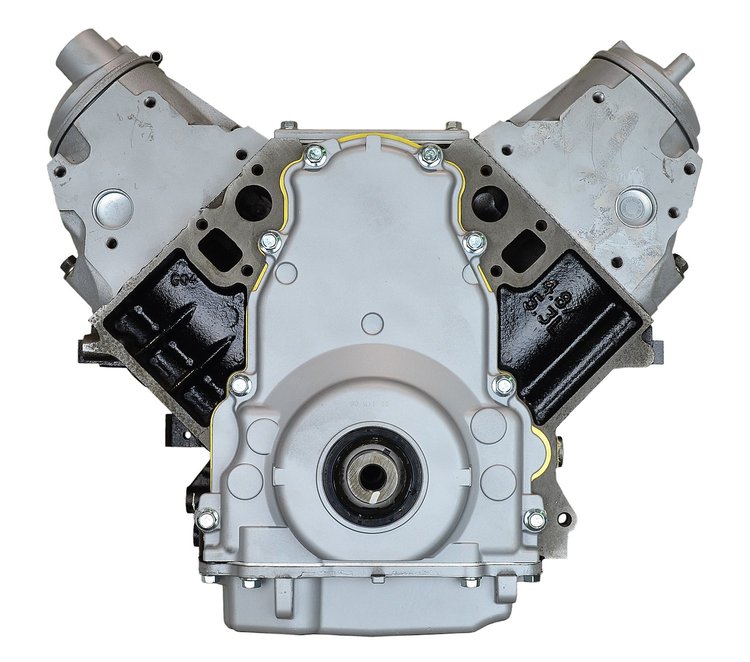

Remanufactured Crate Engine for 1999-2007 Chevy/GMC Truck, SUV, & Van with 5.3L V8
Core Charge: $335.00
Truck Freight: $203.99
Remanufactured Crate Engine
  • 1999-2007 Chevy Silverado 1500, Avalanche, Suburban, Tahoe, & Express Van
  • 1999-2007 GMC Sierra 1500 , Yukon, & Savana Van
  • 2002-2005 Cadillac Escalade
  • V8 5.3L LM7/L59 Iron Block
  • With Tinware
  • 4WD
  • Estimated to ship direct from manufacturer on 08/04/23 , pending manufacturer availability. Learn More

    Thank you! We will notify you when this product becomes available.

    VCT84WD is rated 5.0 out of 5 by 3.
    Rated 5 out of 5 by from No problems 2 years 3 months Had 0 I mean 0 issues with this engine got it August 18 2018 so I got until August until warranty up but never had ticking nothing but of course rear main seal went out but that's Normal if you know LS. But far as everything else I love it . You got hit gas at light sometimes because it's so quite you don't even hear it running!!!! They did excellent job. I had wait until couple years for review and I'm happy and it's about 75k miles on it yes I did a lot of driving , at one time was my daily for 4 months driving almost 100 miles a day. But still no ticking nothing. I know I can get about 5 to 6 years out of it maybe more because I got other cars but if you ask me I will buy again . Shipping was fast and refund for core was quick and they pick it up . After my 3 year warranty up in August I will cam it out lol but maybe keep it stock already have enough hp in yard.
    Date published: 2021-02-22
    Rated 5 out of 5 by from So far, so good Delivered absurdly fast and went right in with no surprises. Any differences vs. my original '03 engine were noted in the documentation as revisions per GM and were easy to account for (e.g. the integrated PCV). One not-so-obvious thing you'll need a new harmonic balancer bolt bolt as they are torque to yield. Don't throw away the old one as you'll use it during the re-install process (google it). I used Autozone loan-a-tool 27139 for removal with a socket between the crank and bolt (The bolt isn't long enough) and 27306 for install. Both worked well. Take pictures of where all your ground wires connect (There were 4-5) and make sure you reconnect them before putting the alternator/PS bracket and intake manifold back on as it's much harder if you attempt to attach them after. I forgot one and got some strange electrical behavior. Had to remove the intake manifold again to get back to the attachment point on the rear of the block. Runs smooth... like new. Hopefully it lasts at least as long as the original.
    Date published: 2018-09-06
    Rated 5 out of 5 by from Very Happy Came with full set of Mahle gaskets; everything needed to install the motor that wasn't already bolted on (intake, exhaust, water pump, fuel injector o-rings, etc.). Motor was clean and the bolts were all torqued to spec when I checked them. Engine runs flawlessly, very smooth. No abnormal noises or vibrations. I was almost sad to cover it up with the plastics in the engine compartment.
    Date published: 2018-04-04
    • y_2023, m_5, d_30, h_22
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
    • cp_1, bvpage1
    • co_hasreviews, tv_0, tr_3
    • loc_en_US, sid_10001_10001_5158735, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_jegs

    Will the engine need tuned after installation?

    Asked by: Jbo1
    The ATK 059-VCT84WD engine is a stock rebuild. Tuning should not be necessary after installation.
    Answered by: jshook
    Date published: 2023-03-21

    Was this built or rebuilt by ATK?

    Asked by: Justinj360
    These are remanufactured by ATK.
    Answered by: Rusty B
    Date published: 2022-10-09

    Will sales tax be added to your listed price?

    Asked by: Gearhead1234
    Since the engine is being bought through Jegs you would need to ask them about tax.
    Answered by: ATK HP Engines
    Date published: 2018-08-22

    Who pays core return shipping ?

    Asked by: kwikkopy
    ATK will pay the return shipping charges on the core. You will get the paperwork to return the core with the engine.
    Answered by: Rusty B
    Date published: 2022-08-30

    Can you order this engine with a stage 2 cam set up?

    Asked by: Bgunter
    No, these are stock replacement engine and cannot be ordered with upgraded components. You can use a different cam if you want to install it.
    Answered by: Rusty B
    Date published: 2019-12-12

    Are these engines turnkey? Does everything come with them?

    Asked by: Scottie 4934
    These engines are just as you see them. You will need to swap over all of the accessories from your current engine to make these work properly.
    Answered by: Rusty B
    Date published: 2020-01-31

    How well are these engines put togeather I haven’t seen any reviews on them yet and what’s the time I have to get the core sent back

    Asked by: Austin50218
    These are made very well, very few issues with them. You have 2 weeks to get the core under way.
    Answered by: Rusty B
    Date published: 2018-03-28

    What is the hp rating on this motor

    Asked by: kyle1991
    This is a stock replacement application and will have the same power as the engine it is replacing.
    Answered by: Rusty B
    Date published: 2023-02-03
