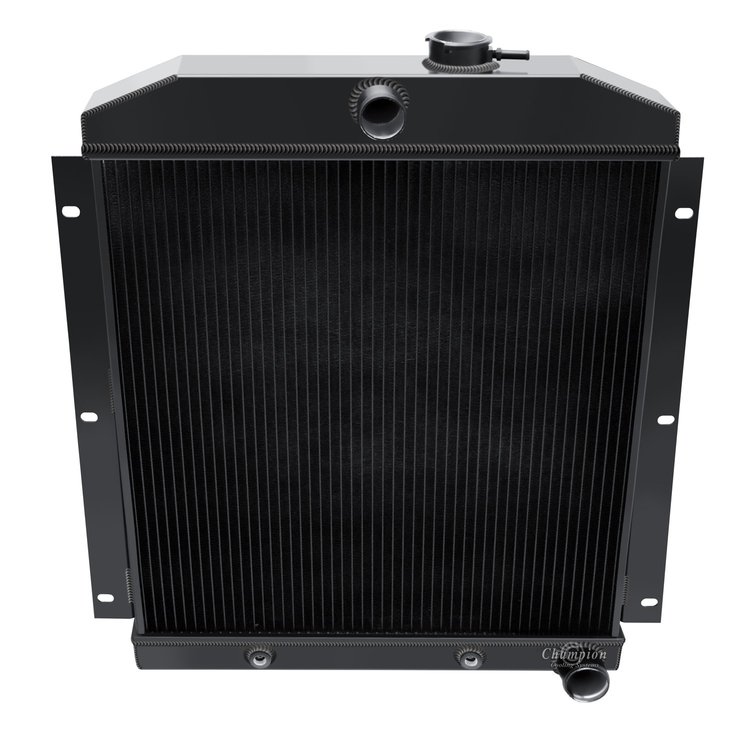

Champion Cooling Systems 3-Row Aluminum Radiator 1947-1954 Chevy C/K-Series Pickup Truck/Suburban/Panel Truck, Semi-Gloss Black Finish
166-CC5100B-BLK
Product Q&A
View Now
Items You Need
| Ratings |
|---|
| Price |
| Brand |
GM
Features:
- Champion Core 3-Row Aluminum Radiator
- All Aluminum 2 mm Thick Tanks, Fittings and Brackets
- Billet Radiator Fill Neck
- OEM-Style Brass Petcock
- Brazed Core Technology
- Max Cool Louvered Fins, 14-16 Fins per Inch
- 100% Tig Welded
- 3/8 (.375) in. Spaced Tubes
- 1/2-20 Straight Thread, Inverted Flare Transmission Cooler Connections
- 13 lb. Radiator Cap Included
- Semi-Gloss Black Finish: A long-lasting single component water-based coating that is blended by a celliose coating using acrylic emulsion, anti-rust pigment, and other auxiliary agents to resist chipping, peeling, chemicals and a heat tolerance up to 300 degrees F.
Specifications:
Have 1953 chevy 3100 truck running 235 will it work with Manual fan? Or does it need to be a electric fan?
Will this work for a 5.3 LS swap to 1950 truck ??
I have a 1951 Chevy 3100, with a 4 speed Muncie with a SB 406, will this radiator be sufficient enough for cooling? If not, do you have any recommendations so I’m not experiencing cooling issues.
