Chevrolet Performance 19331579

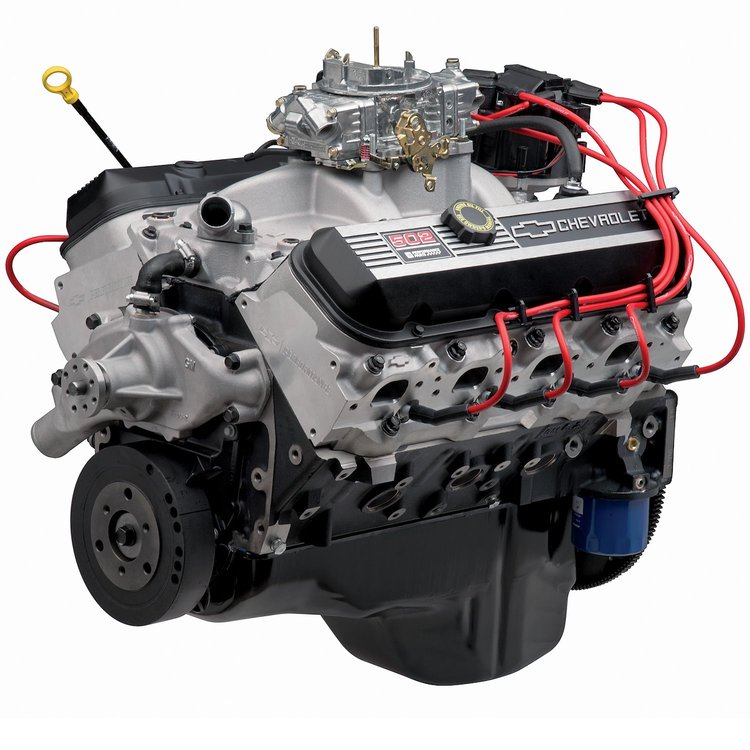

ZZ502/502 Deluxe 502ci Engine 508 HP @ 5200 RPM

Chevrolet Performance 19331579


jegs shipping
FREE Shipping
Easy Returns
Easy Returns
Lowest Price Guarantee
Lowest Price Guarantee
Please login to receive private and specific offers Click Here
Chevrolet Performance 19331579 ZZ502/502 Deluxe 502ci Engine 508 HP @ 5200 RPM $9,539.26
ZZ502/502 Deluxe 502ci Engine
  • 508 HP @ 5200 RPM
  • 580 ft/lbs Torque @ 3600 RPM
  • Fully Assembled

  • Chevrolet Performance 19331579 Details

  • Due to crate fitment, the carburetor is shipped in a separate box and needs to be installed by an engine installer
  • Clutch linkage bosses are now drilled and tapped. When using cast-iron exhaust manifolds, lower head bolts may need to be replaced with bolts with shorter heads for clearance
  • The 502 engines now have a mechanical fuel pump boss
  • Comes with an externally balanced 14" automatic transmission flexplate.
  • Designed for pre-1976 street vehicles or any off-road vehicle
  • Not intended for marine applications
  • Distributor with melonized steel gear MUST be used with steel camshafts, or engine damage will occur.

  • Big-Block Crate Engine for the Street and Strip

    Free Shipping!

    Chevrolet Performance's ZZ502/502 is one of the industry's benchmark crate engines, offering excellent value with a proven combination of performance that is suitable for the street or strip. With 508 horsepower and 580 ft/lbs of torque, it demands your full attention and a chassis that is strong enough to harness its frame twisting power.

    All ZZ502 crate engines are manufactured with GM's updated cylinder block casting that is stronger and better supports high-performance applications. A forged crankshaft, along with forged rods and pistons, anchors the bottom end, while our popular oval-port aluminum heads offer excellent airflow characteristics. Torque tops the 580-lb-ft mark by approximately 3600 rpm and doesn't dip below the 500 mark until about 5100 rpm.

    The ZZ505/502 Deluxe package comes complete from the oil pan to the carburetor, including an HEI distributor, plug wires, starter, water pump, balancer, and an aluminum intake topped with a Holley 870-cfm four-barrel.

    ZZ502/502 TECH SPECS:
  • Engine Type: Chevy Big-Block V-8
  • Displacement: 502ci
  • Bore x Stroke: 4.470'' x 4.000''
  • Block: Cast-iron with four-bolt main caps
  • Crankshaft: Forged steel
  • Connecting Rods: Forged steel, shot-peened
  • Pistons: Forged aluminum
  • Camshaft Type: Hydraulic roller
  • Camshaft Lift: .527'' intake / .544'' exhaust
  • Camshaft Duration (@.050 in.): 224° intake / 234° exhaust
  • Cylinder Heads: Aluminum oval port, 110cc combustion chambers
  • Valve Size: 2.250'' intake / 1.880'' exhaust
  • Compression Ratio: 9.6:1
  • Rocker Arms: Stamped steel
  • Rocker Arm Ratio: 1.7:1
  • Distributor: HEI type
  • Carburetor: 870 cfm
  • Water Pump: Aluminum, short-style
  • Spark Plugs and Wires: Included
  • Starter: Included
  • Flexplate: 14'' diameter
  • Recommended Fuel: Premium pump (92 octane)
  • Ignition Timing: 32° Total @ 4000 rpm
  • Maximum Recommended RPM: 5800
  • Balanced: External
  • GM Warranty

    How much are the kits and bracket for alternator  , power steering, and air conditioner  also how much are the components

    Asked by: Jim548
    Here is a URL for front drive accessory kits http://www.jegs.com/p/Chevrolet-Performance/Chevrolet-Performance-Big-Block-Serpentine-Belt-Drive-Systems-And-Components/2806353/10002/-1
    Answered by: Jegs Tech
    Date published: 2017-10-18
