Edelbrock 60779

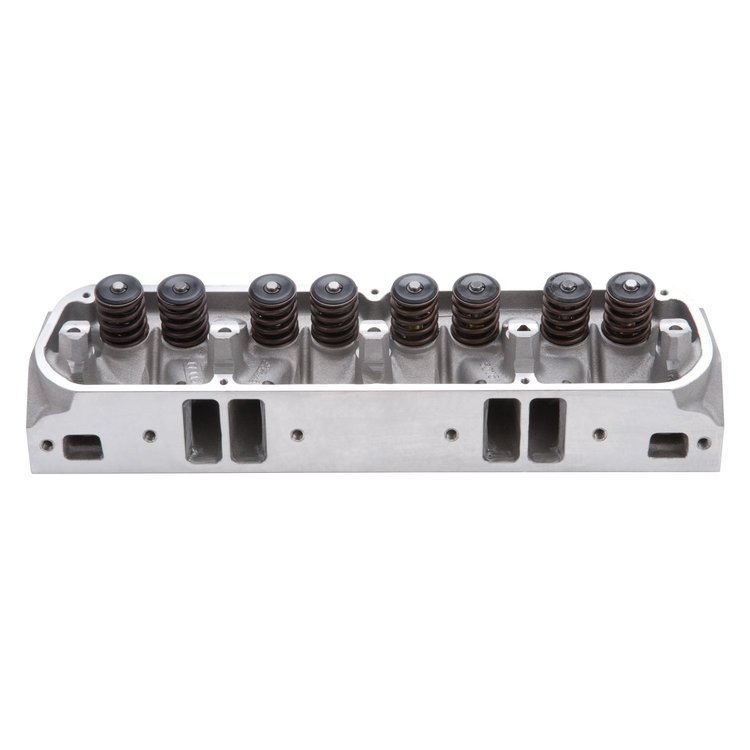

Performer RPM Cylinder Head for Small Block Chrysler

Edelbrock 60779

350-60779

made in usa
jegs shipping
FREE Shipping
Ships
Edelbrock 60779 Performer RPM Cylinder Head for Small Block Chrysler $849.50
  • 1967-1991 318-360ci
  • Valve Springs for Hydraulic Flat Tappet
  • Port Volume: 171cc/77cc
  • Valve Size: 2.02"/1.60"
  • 63cc Combustion Chambers
  • Max Lift: .575"
  • Assembled, Sold Individually

  • Edelbrock 60779 Details

    Small Block Chrysler Performer RPM 63cc Aluminum Cylinder Heads

    Outstanding features include phosphor-bronze valve guides, interlocking, ductile iron valve seats, and premium one-piece, high-flow stainless steel intake and exhaust valves. Heat-treated and machined steel retainers and valve locks along with heavy duty valve springs are good for .575'' lift cams. For compatibility with aftermarket parts, these powerful heads use the stock location for intake and exhaust bolt holes and flanges, spark plugs, and valve cover rails. The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads.

    Tech Tip
    To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs, such as the RC12YC (P/N 192-49776). They are 0.230'' shorter than conventional spark plugs and have a 5/8'' hex for easier access.

    Combustion Chamber Volume:63cc
    Intake Runner Volume:171cc
    Exhaust Runner Volume:77cc
    Intake Valve Diameter:2.02''
    Exhaust Valve Diameter:1.60''
    Valve Stem Diameter:11/32''
    Valve Guides:Manganese Bronze
    Deck Thickness:5/8''
    Valve Spring Diameter:1.46''
    Valve Spring Maximum Lift:0.575''
    Rocker Stud:N/A
    Guideplate:Hardened Steel
    Pushrod Diameter:5/16''
    Valve Angle:18°
    Exhaust Port Location:Stock
    Spark Plug Fitment:14mm x 3/4'' Reach,
    Gasket Seat


    Valve LiftIntakeExhaust
    .100''6964
    .200''129108
    .300''188142
    .400''232171
    .500''249183
    .600''251190
    .700''N/AN/A
    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28'' H2O

    Specifications:

    Type
    Complete
    Engine Make/Size
    Mopar 318-360
    Emission
    Non-Emissions
    Usage
    Street/Performance
    Cylinder Head Type
    Standard
    Preparation
    Bolt On (Not Required)
    Finish
    Cast Aluminum
    Accessory Bolt Holes Drilled
    Yes
    CNC-Machined Combustion Chamber
    No
    CNC-Machined Exhaust Runner
    No
    CNC-Machined Intake Runner
    No
    Combustion Chamber Volume (cc)
    63
    Cylinder Head Finish
    Natural
    Cylinder Head Material
    Aluminum
    Cylinder Head Style
    Assembled
    Damper Spring Included
    Yes
    Exhaust Port Location
    Standard
    Exhaust Runner Volume (cc)
    77
    Exhaust Valve Diameter (in.)
    1.6
    Exhaust Valves Included
    Yes
    Guideplates Included
    No
    Heat Crossover
    No
    Intake Port Location
    Standard
    Intake Runner Volume (cc)
    171
    Intake Valve Angle
    18
    Intake Valve Diameter (in.)
    2.02
    Intake Valves Included
    Yes
    Lock Style
    7 degree
    Locks Included
    Yes
    Machined for O-Ring
    No
    Maximum Valve Lift (in.)
    0.575
    Number of Springs Per Valve
    Single
    Oiling Style
    Through head
    Outside Diameter of Outer Spring (in.)
    1.46
    Quantity
    Sold individually
    Retainer Material
    Steel
    Retainers Included
    Yes
    Rocker Arm Nuts Included
    No
    Rocker Arm Studs Included
    No
    Rocker Arms Included
    No
    Steam Holes Drilled
    No
    Valve Cover Mounting Style
    Perimeter bolt
    Valve Guide Material
    Manganese bronze
    Valve Guides Included
    Yes
    Valve Seat Machine Style
    3-angle
    Valve Seat Material
    Ductile iron
    Valve Seats Machined
    Yes
    Valve Springs Included
    Yes
    Valve Stem Seal Style
    Positive stop
    Valve Stem Seals Included
    Yes
    Manufacturer's Part Number:
    60779

    Performer RPM Chrysler heads deliver outstanding performance in non-emission 1967-91 318/340/360ci engines. Designed for non-emission 1968-73 340ci Chryslers, RPM Chrysler 340 heads have Chambers machined .060" for clearance with early high-compression engines.

    These heads are capable of 417 horsepower and 397 ft-lbs. of torque on pump gas with a Performer RPM intake an matching camshaft. Made In The USA!



    Features:
  • Combustion Chamber Volume: 63cc or 65cc
  • Intake Runner Volume: 171cc
  • Exhaust Runner Volume: 77cc
  • Intake Valve Diameter: 2.02"
  • Exhaust Valve Diameter: 1.60"
  • Valve Stem Diameter: 11/32"
  • Valve Guides: Manganese Bronze
  • Deck Thickness: 5/8"
  • Valve Spring Diameter: 1.46"
  • Vavle Spring Maximum Lift: .575"
  • Pushrod Diameter: 5/16"
  • Valve Angle: 18°
  • Exhaust Port Location: Stock
  • Spark Plug Fitment: 14mm x 3/4 Reach, Gasket Seat
  • Made In The USA!
