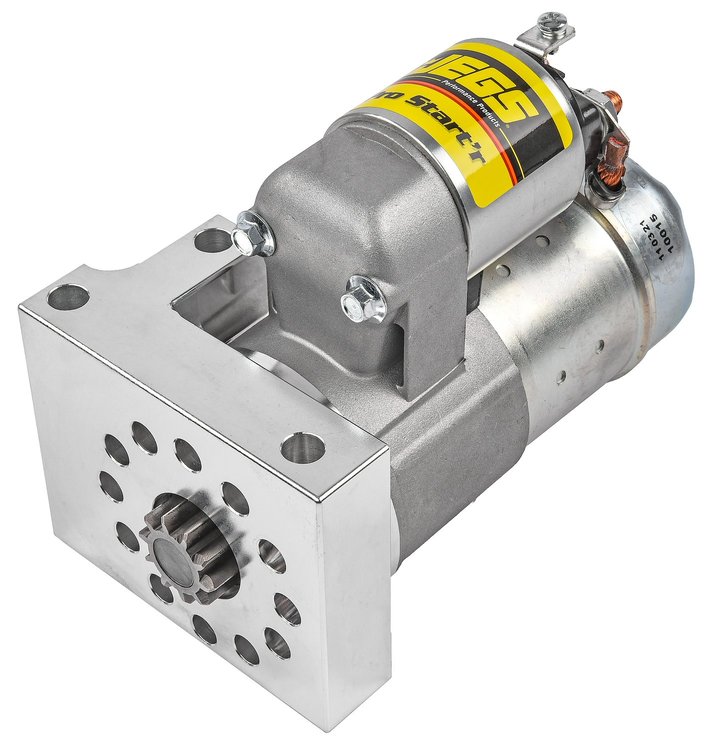

Hitachi-Style Mini Starter for Small Block, Big Block & 90 Degree V6 Chevy w/168 Tooth Flywheel or Flexplate
555-10015
Product Q&A
View Now
Click image to zoom
Items You Need
JEGS 10038 - R Terminal Diode Harness Kit for GM Starters
$17.45
JEGS 10290 - Remote Battery Cable Kit [1-Gauge, 3/8 in. Battery Terminal Size]
$89.09
JEGS 10520 - 50 Amp Fuse with Block & Cover Made in the USA
$11.69
JEGS 10028 - 7-Piece Starter Shim Kit for Heavy-Duty Hitachi/GM Starters
$11.69
JEGS 10665 - Convoluted Tubing Kit Includes 1/4", 3/8", 1/2", 3/4" tubing self-fusing tape and heat shrink tubing
$34.01
| Ratings |
|---|
| Price |
| Brand |
Hitachi-Style Mini Starters
JEGS 555-10015 Hitachi-Style Mini Starter Features:
- Fits small block and big block Chevy engines with straight or staggard mounting configuration
- Fits 168 tooth flywheels and flexplates with adjustable mounting block
- Cranks over engines with up to 11:1 compression ratio
- Produces up to 160 ft. lbs. of torque
- Compact Design
- Lighter in weight than factory starters at 7.5 lbs
- Made with high-quality components
- Includes (2) Mounting Bolts 3/8 in-16, (2) 3/8 in. flat washers, (1) Round Shim (1/16 in. Thick) and (2) Flat Shims
JEGS 555-10015 Hitachi-Style Mini Starter Notes:
- Proper mounting: This starter has an indexable rotation and is important that the starter mounting flange to the engine block is in the correct position for your starter to engage properly. See the photo above for reference.
- Fits all Small Block Chevy except LS series engines (LS1, LS6, 4.8L, 5.3L, and 6.0L)
- May require the use of an "R" Terminal Diode Kit 555-10038, which allows the use of aftermarket mini starters in GM vehicles originally equipped with breaker point ignitions
JEGS 555-10015 Hitachi-Style Mini Starter Dimensions:
- Overall: 4 1/4 in. W x 7 1/4 in. L x 5 in. H
- Mounting hole spacing: stock
- Electrical post size: M8-1.25
FAQ
Are big-block and small-block Chevy starters the same?
- Yes, many JEGS starters like the 10015 cater to both big-block and small-block Chevy engines. The starter's compatibility is crucial, ensuring proper fitment and reliable performance for your specific application.
What are the benefits of a mini starter?
- JEGS Mini Starters, like the 10015, offer advantages such as reduced weight, improved cranking power, and enhanced clearance. Their compact design makes them ideal for high-performance applications.
How do you size a starter?
- When sizing a starter, consider factors like engine displacement and compression ratio.
Specifications:
Part Type
Product Line
Adjustable Mounting Block
Yes
Finish
Natural
Flywheel/Flexplate
168-tooth
Gear Reduction Ratio
6.00:1
Hardware Included
Yes
Maximum Recommended Compression Ratio
11.0:1
Meets or Exceeds Original Equipment Manu
Yes
Mounting Block Material
Billet aluminum
Mounting Bolt Hole Quantity
2
Mounting Hardware Included
Yes
New Or Remanufactured
New
Package Depth
6.10
Package Height
10.20
Package Width
6.50
Part Category
Performance Parts
Part Fitment
Semi Universal
Power Rating
1.70
Quantity
1
Re Clockable Flange
Yes
Shipping Weight
8.80
Solenoid Attached
Yes
Solenoid Included
Yes
Starter Finish
Gold iridited
Starter Rotation
Standard
Starter Style
Hitachi
Wiring Harness Included
No
10015 is rated
out of
5 by
21.
Rated 5 out of
5
by
Big Dan from
Good starter
This starter fits great, I had to clock it 1 bolt hole from the position in came in to make it fit. It works great and it works every time.
Date published: 2023-10-05
Rated 5 out of
5
by
Anonymous from
Starter troubles solved!
Very good product! Easy installation too. Very satisfied.S
Date published: 2022-09-08
Rated 5 out of
5
by
Eddie from
Perfect starter
Worked perfect for my Chevy small block with 168 teeth flex plate
Date published: 2022-07-30
Rated 5 out of
5
by
T Ray B from
High quality product!
This starter is beautiful! I mean, it's just a starter, but it truly is a high quality piece of gear. You will be impressed with it.
Date published: 2021-09-28
Rated 4 out of
5
by
Scar Hand Rand from
Slow West Coast delivery….
Jegs has good products at reasonable prices but for me, out here on the west coast, delivery is slow. Not Jegs fault but it does influence my vendor selection.The Jegs brand mini starter was easy to install, worked first try without shims and cleared my Sanderson headers by a mile.
Date published: 2022-05-28
Rated 1 out of
5
by
Mike6666 from
Junk
Ordered this thing because it said this was needed for the kit .. I rarely drive the car maybe 20 trips meaning 20 starts .. the bendix starting to grind on about the 15 th start and now it won’t even contract back inside housing. Motor does have high compression but jegs said it would work … save your money
Date published: 2023-06-10
Will this starter for a 1984 6.2 diesel
The Jegs 555-10015 starter does not fit a 6.2 diesel engine.
Date published: 2023-09-29
2005ish 4.3 out of a Chevrolet s-10. Would it fit
The Jegs 555-10015 starter will fit a 4.3 engine.
Date published: 2023-07-03
Does this come with 3/8"x16 standard bolts or metric bolts . I want to use it on a 168 tooth Chevy 350 that's from 1985 and takes the standard bolts . How long are the supplied bolts not including the bolt head ? Do you have knurled 3/8x16 starter bolts ?
The Jegs 555-10015 starter comes with the correct knurled 3/8 starter bolts.
Date published: 2023-07-01
I have a 1998 Chevy pickup and my current starter cracked the outside bolt hole. With this starter can I use all three bolt hole locations.
The Jegs 555-10015 starter will only use 2 of the bolt holes at installation.
Date published: 2023-11-06
This starter states a v6 will it also work on 5.7 bored .60 over
The Jegs 555-10015 starter will fit a 5.7 Chevy block.
Date published: 2023-07-03
