JEGS Performance Products 51281 - JEGS Adjustable Billet Timing Pointers
JEGS Performance Products #555-51281
SB-Ford "10" o'clock TDC Locator
|
||||
|
|
||||
|
|
||||
JEGS Performance Products 51281 - JEGS Adjustable Billet Timing Pointers Details
Ford
Determining what pointer you need
With the crankshaft keyway at the 12 o'clock position and the #1 piston at TDC. Align the Balancer/Damper on the crank snout. Note the position of the 0° mark on the Balancer/Damper. If the mark is at 11 o'clock position then you need part number 555-51280; if it's at the 10 o'clock position then you need part number 555-51281.
For Many Racing Seasons of Service

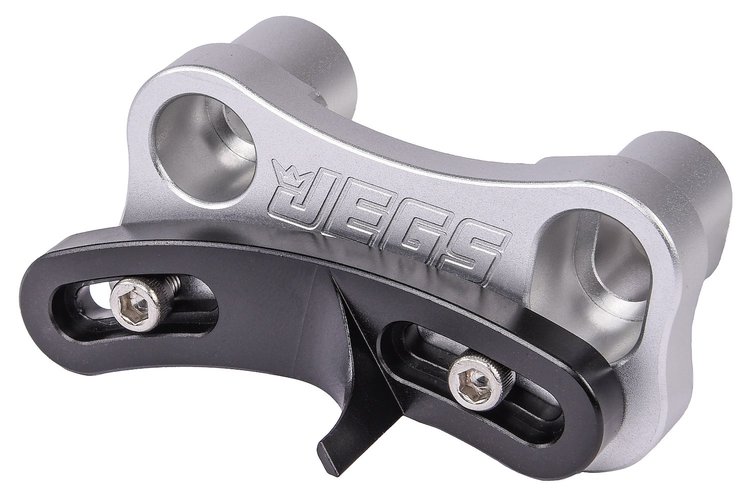

CNC-machined from 6061 T6 aluminum with anodized clear main body, anodized black adjustment assembly, and stainless steel pointer that allows up to 4° range of movement. Stainless steel mounting fasteners also included. Made in the USA.
