COMP Cams 26926TS-KIT

Dual Valve Spring & Light Tool Steel Retainer Kit I.D.of Outer Dia:.920"

COMP Cams 26926TS-KIT

249-26926TS-KIT

jegs shipping
FREE Shipping
Ships
Easy Returns
Easy Returns
Lowest Price Guarantee
Lowest Price Guarantee

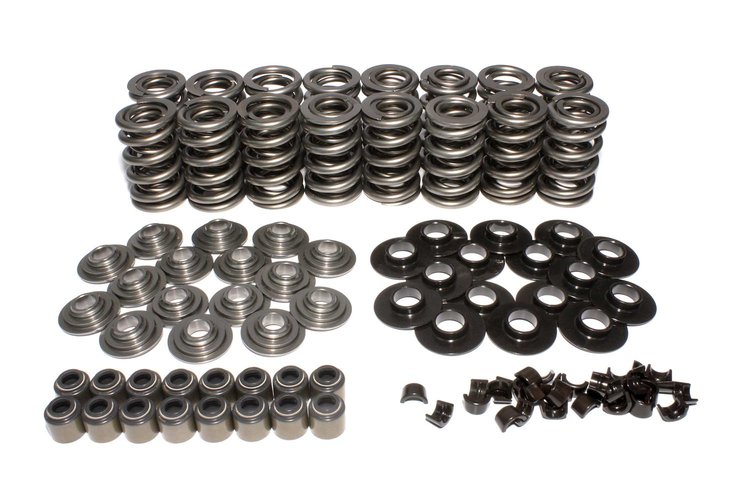

COMP Cams 26926TS-KIT Dual Valve Spring & Light Tool Steel Retainer Kit I.D.of Outer Dia:.920" $489.99
Dual Valve Spring & Light Tool Steel Retainer Kit
  • I.D.of Outer Dia:.920"
  • I.D.of Inner Dia.654"
  • Spring Rate:505 lbs/in
  • Seat Load:129 lbs @ 1.835''
  • Open Load:470 lbs @ 1.160''
  • Coil Bind:1.100''
  • Spring Damper: No
  • 16/pkg

  • COMP Cams 26926TS-KIT Details

    1.320'' Outside Diameter Dual Valve Springs

    This Dual Valve Spring Kit for LS engines includes carefully matched Dual Valve Springs, lightweight tool steel retainers, 7° locks, seals and spring seats. With a .675'' maximum lift, these COMP Cams Dual Valve Springs for race applications are manufactured from Super Clean wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.

    Kit Includes:

  • 249-26926-16 Street/Strip Dual Valve Springs
  • 249-1779-16 Tool Steel Retainers
  • 249-623-16 7° Steel Valve Locks
  • 249-511-16 Valve Seals
  • 249-4695-16 Spring Seats

    Ideal for street/strip hydraulic roller, some solid roller and some solid flat tappet race applications.

    Specs

  • O.D. Outer Spring: 1.320''
  • I.D. Outer Spring: 0.920''
  • I.D. Inner Spring: 0.654''
  • Seat Pressure: 129 lbs @ 1.835''
  • Open Pressure: 470 lbs @ 1.160''
  • Coil Bind: 1.100''
  • Spring Rate: 505 lbs/in
  • Spring Damper: No

  • Specifications:

    Spring Type
    Double
    Camshaft Type
    Hydraulic
    Installed Pressure (lbs.)
    129
    Position
    N/A
    Outside Diameter
    1.320
    Inside Diameter
    0.654
    Spring Rate (lbs./in.)
    505
    Installed Height (in.)
    1.835
    Open Pressure (lbs.)
    70
    Open Height (in.)
    1.160
    Coil Bind Height (in.)
    0.675
    Coated
    No
    Damper Spring Included
    No
    Inside Diameter of Inner Spring (in.)
    0.654
    Lock Groove Quantity
    1-groove
    Lock Material
    Hardened steel
    Lock Style
    7 degree
    Locks Included
    Yes
    Number of Springs Per Valve
    Dual
    Outside Diameter of Outer Spring (in.)
    1.32
    Quantity
    Sold as a kit
    Retainer Material
    Steel
    Retainers Included
    Yes
    Spring Rate
    505 lbs./in.
    Valve Spring Style
    Standard
    Manufacturer's Part Number:
    26926TS-KIT

    Comp Cams Dual Valve Springs are designed, manufactured, and tested on some of the most cutting edge equipment in the industry. Their Super Clean Ovate Wire material combined with this manufacturing process ensures consistency and performance. Samples from each batch of springs are tested at stress levels much greater then they will see in any engine. The result of Comp Camps enormous investment in personnel, expertise and equipment is no more evident than in the manufacturing of Comp Cams valve springs. From design to manufacture, Comp Cams delivers advantages to you that are found nowhere else in the industry!

    Does COMP Cams 26926TS-KIT fit your vehicle?

    Narrow Results

    2010-2015 CHEVROLET CAMARO

    • CC: 6162
    • Fitment_Note: Three-Bolt~w/o Variable Valve Timing [VVT]~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]~Single-Bolt
    • Liter: 6.2
    • Aspiration: N
    • SubModel: SS
    • Engine Vin: W
    • CUI: 376
    • EngineType: V8 ( 6.2 L / 376 )

    2009-2011 CHEVROLET CORVETTE

    • Fitment_Note: Three-Bolt~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • EngineType: ALL
    • SubModel: ZR1

    2001-2004 CHEVROLET CORVETTE

    • Fitment_Note: Three-Bolt
    • EngineType: ALL
    • SubModel: Z06

    2008-2013 CHEVROLET CORVETTE

    • Fitment_Note: Three-Bolt~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • EngineType: ALL
    • SubModel: Z06

    2012-2013 CHEVROLET CAMARO

    • Fitment_Note: Three-Bolt~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • EngineType: ALL
    • SubModel: ZL1

    2007 CHEVROLET CORVETTE

    • CC: 5967
    • Fitment_Note: Three-Bolt~w/o Variable Valve Timing [VVT]~w/o Active Fuel Management [AFM]~Single-Bolt
    • Liter: 6.0
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: U
    • CUI: 364
    • EngineType: V8 ( 6.0 L / 364 )

    2008 PONTIAC GRAND PRIX

    • Fitment_Note: Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • EngineType: ALL
    • SubModel: GXP

    2009 PONTIAC G8

    • Fitment_Note: w/o Variable Valve Timing [VVT]~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]~Single-Bolt
    • EngineType: ALL
    • SubModel: GXP

    2011 CHEVROLET CORVETTE

    • Fitment_Note: Three-Bolt~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • EngineType: ALL
    • SubModel: Z06 CARBON

    2008 CHEVROLET CORVETTE

    • Fitment_Note: Three-Bolt~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • EngineType: ALL
    • SubModel: 427 LIMITED EDITION Z06

    2006-2007 CHEVROLET IMPALA

    • CC: 5328
    • Fitment_Note: Three-Bolt
    • Liter: 5.3
    • SubModel: SS
    • CUI: 325
    • EngineType: V8 ( 5.3 L / 325 )

    2013 CHEVROLET CORVETTE

    • Fitment_Note: Three-Bolt~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • EngineType: ALL
    • SubModel: 427

    2006-2007 CHEVROLET CORVETTE

    • Fitment_Note: Three-Bolt
    • EngineType: ALL
    • SubModel: Z06

    2008-2009 CHEVROLET IMPALA

    • CC: 5328
    • Fitment_Note: Three-Bolt~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • Liter: 5.3
    • SubModel: SS
    • CUI: 325
    • EngineType: V8 ( 5.3 L / 325 )

    2012 CHEVROLET CORVETTE

    • CC: 6162
    • Fitment_Note: Three-Bolt~w/o Variable Valve Timing [VVT]~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]~Single-Bolt
    • Liter: 6.2
    • SubModel: BASE
    • CUI: 376
    • EngineType: V8 ( 6.2 L / 376 )

    2008-2009 CHEVROLET TRAILBLAZER

    • Fitment_Note: Three-Bolt~w/o Variable Valve Timing [VVT]~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]~Single-Bolt
    • EngineType: ALL
    • SubModel: SS

    2010-2011 CHEVROLET CORVETTE

    • CC: 6162
    • Fitment_Note: Three-Bolt~w/o Variable Valve Timing [VVT]~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]~Single-Bolt
    • Liter: 6.2
    • SubModel: BASE
    • CUI: 376
    • EngineType: V8 ( 6.2 L / 376 )

    2014-2015 CHEVROLET CAMARO

    • CC: 6162
    • Fitment_Note: Three-Bolt~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • Liter: 6.2
    • SubModel: ZL1
    • CUI: 376
    • EngineType: V8 ( 6.2 L / 376 )

    2014-2015 CHEVROLET SS

    • Fitment_Note: Three-Bolt~w/o Variable Valve Timing [VVT]~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]~Single-Bolt
    • EngineType: ALL
    • SubModel: ALL

    2014-2015 CHEVROLET CAMARO

    • Fitment_Note: Three-Bolt~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • EngineType: ALL
    • SubModel: Z/28

    2013 CHEVROLET CORVETTE

    • Fitment_Note: Three-Bolt~w/o Variable Valve Timing [VVT]~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]~Single-Bolt
    • EngineType: ALL
    • SubModel: BASE

    2005-2006 CHEVROLET CORVETTE

    • CC: 5967
    • Fitment_Note: Three-Bolt
    • Liter: 6.0
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: U
    • CUI: 364
    • EngineType: V8 ( 6.0 L / 364 )

    2010-2013 CHEVROLET CORVETTE

    • Fitment_Note: Three-Bolt~w/o Variable Valve Timing [VVT]~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]~Single-Bolt
    • EngineType: ALL
    • SubModel: GRAND SPORT

    2006-2007 CHEVROLET MONTE CARLO

    • Fitment_Note: Three-Bolt
    • EngineType: ALL
    • SubModel: SS

    2008-2009 CHEVROLET CORVETTE

    • CC: 6162
    • Fitment_Note: Three-Bolt~w/o Variable Valve Timing [VVT]~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]~Single-Bolt
    • Liter: 6.2
    • Aspiration: N
    • SubModel: BASE
    • Engine Vin: W
    • CUI: 376
    • EngineType: V8 ( 6.2 L / 376 )

    2006 CHEVROLET TRAILBLAZER

    • Fitment_Note: Three-Bolt
    • EngineType: ALL
    • SubModel: SS

    2007 CHEVROLET TRAILBLAZER

    • Fitment_Note: Three-Bolt~w/o Variable Valve Timing [VVT]~w/o Active Fuel Management [AFM]~Single-Bolt
    • EngineType: ALL
    • SubModel: SS

    2012-2013 CHEVROLET CORVETTE

    • CC: 6162
    • Fitment_Note: Three-Bolt~Single-Bolt w/Variable Valve Timing [12606358]~w/o Active Fuel Management [AFM]
    • Liter: 6.2
    • SubModel: ZR1
    • CUI: 376
    • EngineType: V8 ( 6.2 L / 376 )

    2005-2006 CHEVROLET SSR

    • Fitment_Note: Three-Bolt
    • EngineType: ALL
    • SubModel: ALL
