Edelbrock 61779

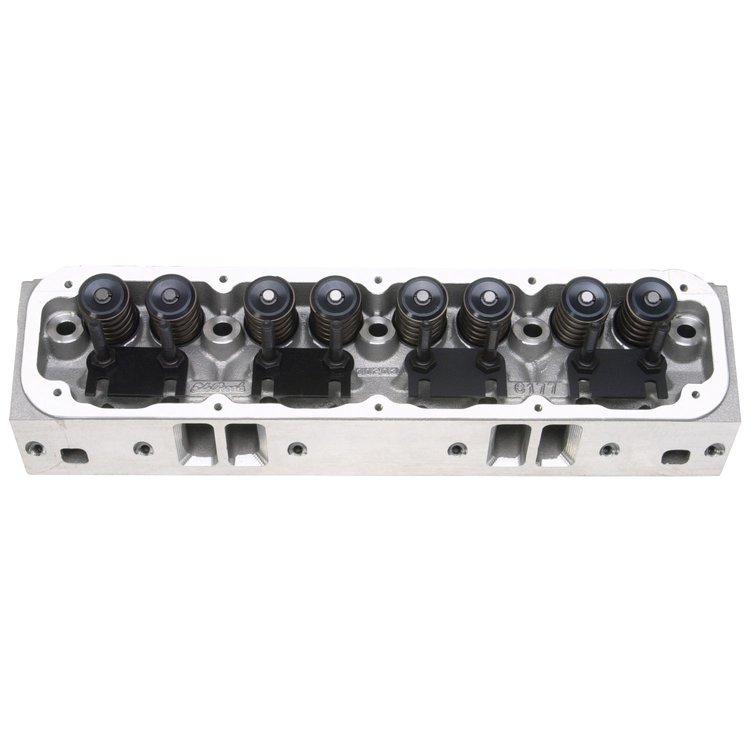

Performer RPM Aluminum Cylinder Head for Chrysler Magnum

Edelbrock 61779

350-61779

made in usa
jegs shipping
FREE Shipping
Ships from Manufacturer
Edelbrock 61779 Performer RPM Aluminum Cylinder Head for Chrysler Magnum $904.60
  • Chrysler Magnum 1992 & Later 5.2L/1993 & Later 5.9L
  • Valve Springs for Hydraulic Flat Tappet
  • Valve Size: 2.02" intake /1.60" exhaust
  • Port Volume: 176cc/75cc
  • 58cc Combustion Chamber
  • Bare Head, Sold Individually

  • Edelbrock 61779 Details

    Chrysler Magnum Performer RPM Aluminum Cylinder Heads

  • Designed for 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8s
  • Match with the Edelbrock RPM Air-Gap Magnum manifold 350-7577 for maximum horsepower and torque.
  • Exhaust flanges in stock location to allow use of stock exhaust if desired
  • Accepts widely available small-block Chevy adjustable rockers 1.6 ratio and classic valve covers 350-4177 and 350-41773

    Technical Note: Requires hardened pushrods, 350-9638

    Combustion Chamber Volume:58cc
    Intake Runner Volume:176cc
    Exhaust Runner Volume:75cc
    Intake Valve Diameter:2.02''
    Exhaust Valve Diameter:1.60''
    Valve Stem Diameter:11/32''
    Valve Guides:Manganese Bronze
    Deck Thickness:5/8''
    Valve Spring Diameter:1.46''
    Valve Spring Maximum Lift:0.580''
    Rocker Stud:3/8''
    Guideplate:Hardened Steel
    Pushrod Diameter:5/16''
    Valve Angle:18°
    Exhaust Port Location:Stock
    Spark Plug Fitment:14mm x 3/4'' Reach,
    Gasket Seat


    Valve LiftIntakeExhaust
    .100''6252
    .200''119105
    .300''175142
    .400''225169
    .500''251185
    .600''260190
    .700''N/AN/A
    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28'' H2O

  • Specifications:

    Type
    Complete
    Emission
    Non-Emissions
    Usage
    Street/Performance
    Cylinder Head Type
    Standard
    Engine Make/Size
    Mopar 318/360 Magnum
    Preparation
    Bolt On (Not Required)
    Finish
    Cast Aluminum
    Accessory Bolt Holes Drilled
    Yes
    CNC-Machined Combustion Chamber
    No
    CNC-Machined Exhaust Runner
    No
    CNC-Machined Intake Runner
    No
    Combustion Chamber Volume (cc)
    58
    Cylinder Head Finish
    Natural
    Cylinder Head Material
    Aluminum
    Cylinder Head Style
    Assembled
    Damper Spring Included
    Yes
    Exhaust Port Location
    Standard
    Exhaust Runner Volume (cc)
    75
    Exhaust Valve Diameter (in.)
    1.6
    Exhaust Valves Included
    Yes
    Guideplates Included
    Yes
    Heat Crossover
    No
    Intake Port Location
    Standard
    Intake Runner Volume (cc)
    176
    Intake Valve Angle
    18
    Intake Valve Diameter (in.)
    2.02
    Intake Valves Included
    Yes
    Lock Style
    7 degree
    Locks Included
    Yes
    Machined for O-Ring
    No
    Maximum Valve Lift (in.)
    0.58
    Number of Springs Per Valve
    Single
    Oiling Style
    Through head
    Outside Diameter of Outer Spring (in.)
    1.46
    Quantity
    Sold individually
    Retainer Material
    Steel
    Retainers Included
    Yes
    Rocker Arm Nuts Included
    No
    Rocker Arm Studs Included
    Yes
    Rocker Arms Included
    No
    Steam Holes Drilled
    No
    Valve Cover Mounting Style
    Perimeter bolt
    Valve Guide Material
    Manganese bronze
    Valve Guides Included
    Yes
    Valve Seat Machine Style
    3-angle
    Valve Seat Material
    Ductile iron
    Valve Seats Machined
    Yes
    Valve Springs Included
    Yes
    Valve Stem Seal Style
    Positive stop
    Valve Stem Seals Included
    Yes
    Manufacturer's Part Number:
    61779

    Designed for 1992 & later 5.2L (318ci) and 1993 & later 5.9L (360ci) Chrysler Magnum V8s. The Performer RPM Chrysler Magnum heads give substantial performance improvements for street/strip and off-road performance use.

    They offer an easy bolt-on upgrade for these modern engines with substantial out-of-the-box performance gains. Stock Magnum intake and exhaust flange and port locations make this an ideal choice for use with the RPM Air-Gap manifold 350-7577.

    These heads feature 180cc intake ports and 75cc exhaust ports with 58cc combustion chambers for a slight increase in compression over the factory heads. 2.02'' intake and 1.60'' exhaust valves with 11/32'' stems offer more flow than stock and they accept adjustable aftermarket rocker arms. Made In The USA!

    Features:
  • Combustion Chamber Volume: 58cc
  • Intake Runner Volume: 176cc
  • Exhaust Runner Volume: 75cc
  • Intake Valve Diameter: 2.02"
  • Exhaust Valve Diameter: 1.60"
  • Valve Stem Diameter: 11/32"
  • Valve Guides: Manganese Bronze
  • Deck Thickness: 5/8"
  • Valve Spring Diameter: 1.46"
  • Vavle Spring Maximum Lift: .580"
  • Rocker Stud: 3/8"
  • Guideplate: Hardened Steel
  • Pushrod Diameter: 5/16"
  • Valve Angle: 18°
  • Exhaust Port Location: Stock
  • Spark Plug Fitment: 14mm x 3/4 Reach, Gasket Seat
  • Made In The USA!
