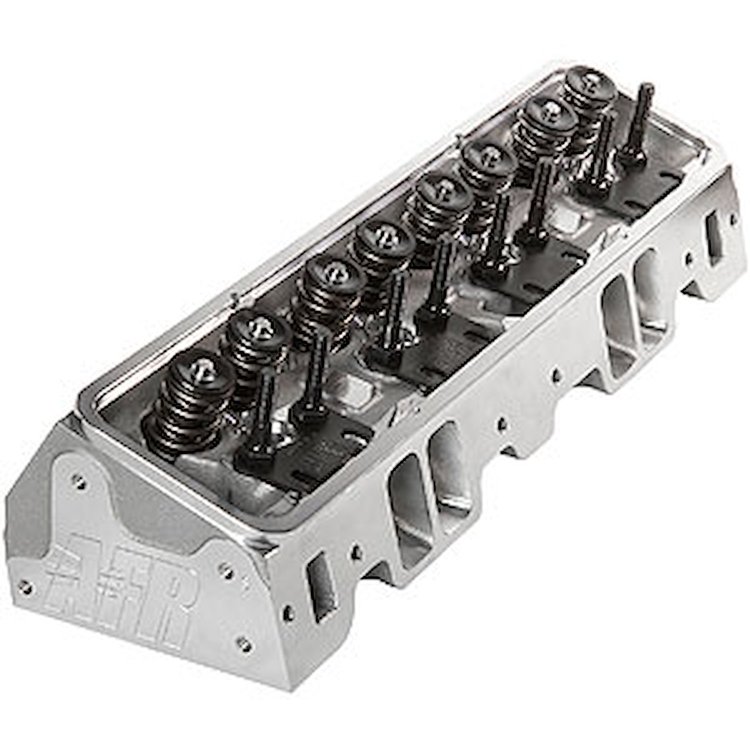

Eliminator 235 cc Small Head Bolt Cylinder Heads
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Items You Need
235 cc Eliminator
Components
- Full CNC Ported Combustion Chambers
- Full CNC Ported Exhaust Ports
- Full CNC Ported Intake Ports
- Competition 5-Angle Valve Job
- Intake Valve, 2.125 in.
- Exhaust Valve, 1.600 in.
- Dual Valve Spring: Solid roller, 1.550 in. OD , .800 in. maximum lift, max RPM 8000-8200, 250 lbs. on seat
- Titanium Retainers
- 10 Degree Valve Locks w/ Lachcap recess
- ARP 7/16 in. Rocker Studs
- Adjustable 5/16 in. Guide Plates
- Viton Valve Seals: .600 in. OD x .495 in. ID
- Hardened Spring Cups: 1.550 in. OD x .780 in. ID
- Intake Valve Seats: Ductile Iron 2.200 in. OD, 1.750 in. ID, .375 in. Deep
- Exhaust Valve Seats: Ductile Iron 1.696 in. OD, 1.325 in. ID, .305 in. Deep
- 8 mm Bronze Valve Guides: .502 in. OD x 2.100 in. OAL
Head Specifications
- Requires shaft mount rocker arms for best geometry (.050 in. offset rockers in drag race applications only)
- Head Torque w/Moly Lube: 65-70 ft.-lbs.
- Rocker Stud Torque: 55 ft.-lbs.
- Intake Port Dimension, 2.200 in. x 1.290 in. w/ 5/16 in. radius
- Fel-Pro 375-1206 - DO NOT PORT MATCH Intake Manifold to Fel-Pro Gasket.
- Head Gasket: 350 ci Fel Pro 375-1004, 400 ci Fel Pro 375-1014
- Stud Girdle: Offset
- Spark Plug Starting Range Autolite 3922 (14mm x .750 in. Gasket Seat)
- Combustion Chambers: 70 cc
- Intake Port: 235 cc
- Exhaust Port: 80 cc raised .250 in.
- Spring Pocket: 1.580 OD; Max Machine: 1.680 in. OD
- Deck Thickness: .750 in.
- Valve Spacing: 60/40
- Rocker Arms: Standard
- Valve Angle: 23 Degree
- Angle Mill: .008 in. per 55 cc
- Flat Mill .006 in. per 60 cc
- Flat and Angle mills might require a .120 in. thick head gasket.
- Requires a minimum 4 in. Bore
- Permeter bolt valve cover
Head Flow
Tested conducted at 28 in. of water pressure on Superflow 600 w/ 4.155 in. bore, 3/4 in. radius plate exhaust, 1 7/8 in. curved pipe
Intake:
- .200: 159
- .300: 221
- .400: 261
- .500: 295
- .550: 311
- .600: 318
- .650: 327
- .700: 331
- .800: 336
Exhaust:
- .200: 120
- .300: 165
- .400: 214
- .500: 228
- .550: 237
- .600: 238
- .650: 243
- .700: 245
- .800: 250
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Increased Cylinder Head Material for Maximum Race Endurance
AFR Eliminator Small Head Bolt Aluminum Racing Cylinder Heads feature the same exact features of their standard counterparts, but with added structural strength. The smaller head bolt design provides an extra 1/16 in. of material to thin areas of the cylinder head for handling high compression, high cylinder pressures, alcohol fuel, and severe endurance applications.
