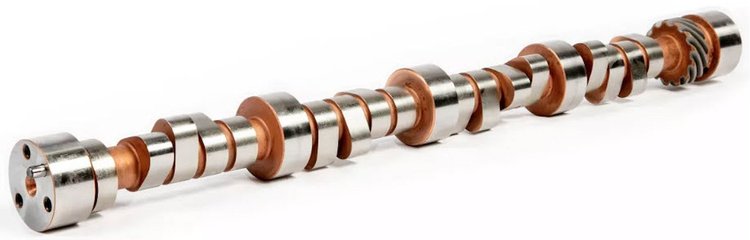

The AFR Stage 1 Camshaft for Small Block Chevy engines is engineered to maximize the performance potential of AFR Eliminator CNC and Enforcer As-Cast cylinder heads. Developed through extensive dyno testing and real-world validation, this camshaft delivers race-focused power gains in a drop-in hydraulic roller design. Manufactured in partnership with Andrews Products, each camshaft features premium materials and precision grinding for durability, consistency, and high-RPM capability.

AFR 6015 Features:

• Retro-Fit Hydraulic Roller camshaft design
• Specifically matched to AFR Eliminator CNC and Enforcer As-Cast cylinder heads
• Premium 8620 steel core construction for superior strength and wear resistance
• Designed for high-RPM, strip-focused Small Block Chevy engines
• Improved core hardness supports precise and consistent lobe profiles
• Excellent durability for aggressive street and race applications
• Computer-controlled compatible

AFR 6015 Specifications:

• Intake duration @ .050 in.: 224 degrees
• Exhaust duration @ .050 in.: 230 degrees
• Valve lift w/ 1.5 rocker ratio: .533 in. intake / .548 in. exhaust
• 112-degree lobe separation angle
• 3-bolt camshaft gear attachment

AFR 6015 Notes:

• Hydraulic Roller camshafts require the use of a cam button to prevent cam walk (sold separately)
• OE Roller engines from 1987–2003 with a stepped-nose cam:
  • Cam retainer plate must be removed and replaced with a cam button
  • OEM timing gear will not fit and must be upgraded to a timing set for earlier Small Block Chevy engines
• Valve springs are required and must be properly matched to camshaft specifications
• Intended for strip and high-RPM performance use
• Sold individually

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
