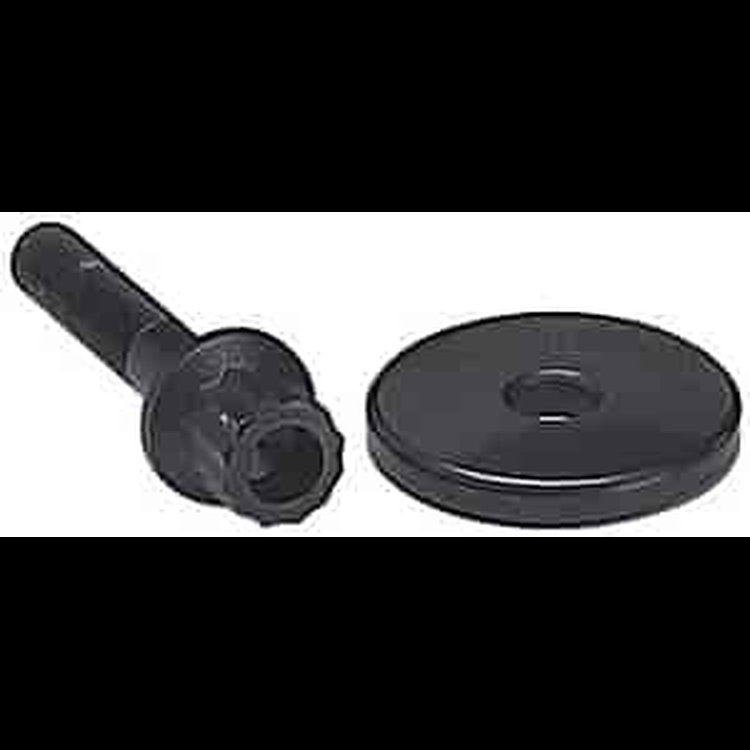

ARP Balancer Bolt & Washer Chevy LS7

ARP 234-2504

070-234-2504

jegs shipping
Ships
Easy Returns
Easy Returns
Lowest Price Guarantee
Lowest Price Guarantee
ARP Balancer Bolt & Washer Chevy LS7 $36.99
Balancer Bolt & Washer
  • Chevy LS7
  • 16M x 2.0 Thread
  • 5.225" UHL
  • 1-1/16" Socket

  • ARP 234-2504 Details

    Chevy LS

    Specifications:

    Fastener Finish
    Black oxide
    Fastener Material
    Chromoly
    Underhead Length (in.)
    5.225
    Washer Included
    Yes
    Head Style
    12-point
    Quantity
    Sold individually
    Fastener Yield Strength (psi)
    200,000
    Thread Size (mm)
    16 x 2.0
    Manufacturer's Part Number:
    234-2504
    Shipping Weight:
    1.05
    Package Height:
    11.1
    Package Depth:
    2
    Package Width:
    6

    ARP's Harmonic Damper Bolts safety keep the damper locked into place as the crankshaft flexes and twists and the harmonic damper absorbs incredible amounts of kinetic energy. These damper bolts are ultra strong, 190,000 psi tensile strength that exerts maximum clamping force and are made from heat-treated 8740 chrome moly steel with heavy-duty black oxide finish. Available with a 12-point or square drive head.

    12-Point Bolt: Features a 1/4" thick, wide area washer and an extra tall 12-point head accepts a deep socket and eliminates the worry of stripping the head.

    Square Drive Bolt: 1/2" square drive forged into bolt head, accepts a standard 1/2? drive ratchet or breaker bar to facilitate rotating the crank assembly.

    Items You Need
    Some parts are not legal for use in California or other states with similar laws / regulations
