Complete Engines
ATK Core Return Process
JEGS and ATK appreciate your business and want to ensure that your core return is as smooth as possible.
Please CLICK HERE for ATK Core Return Process
NOTE:
- Core return can be any Small Block Chrysler 360ci engine

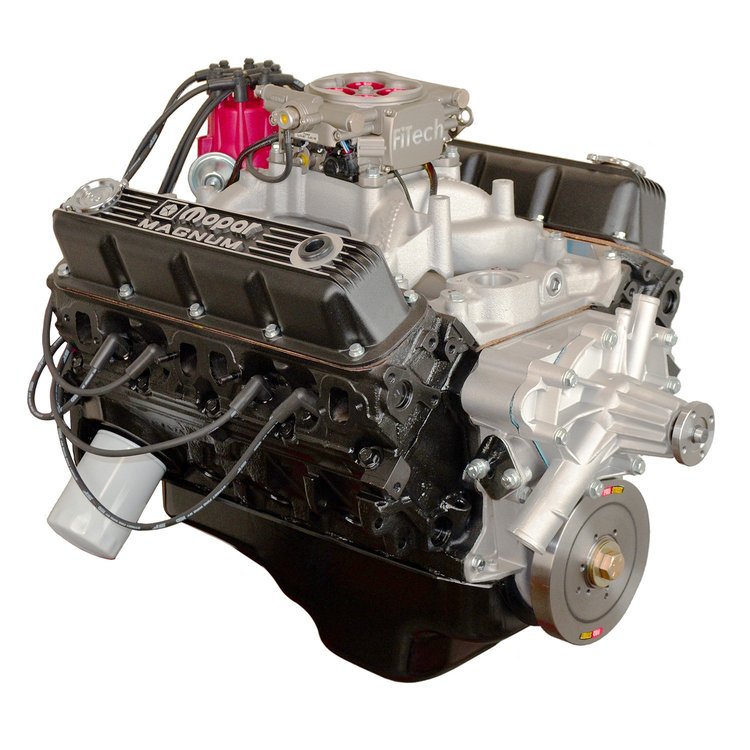

Engine Specifications
This engine is perfect for a street cruiser, great street ability, stock idle, and good power.
- Horsepower: 320 hp
- Torque: 410 ft.-lbs.
Block Information:
- Seasoned OE Magnum roller block 1993-2001
- Bore/Stroke: 4.060 in, x 3.580 in.
- Displacement: 360 ci
Rotating Assembly:
- Crankshaft: OE cast
- Balance: External
- Rods: OE 6.123 in.
- Compression Ratio: 9.1:1
- Pistons: Hypereutectic
- Rings: Moly
Camshaft Specs:
- Camshaft: Hydraulic roller
- Cam Duration @ .050 in.: OE Magnum grind
- Cam Lift: OE Magnum grind
- Timing Chain: Double roller
Cylinder Head Information:
- Cylinder Heads: OE Magnum cast iron
- Combustion Chamber: 65cc
- Valve Size: 1.78 in. Intake / 1.50 in. Exhaust
- Rocker Arms: Steel 1.6 pedestal rockers
Oil Pan Information:
- Oil Pan: OE front sump
- Oil Pump: Melling standard volume
Engine Break-In Procedure
Use break-in oil or conventional (non-synthetic) 10w30 oil with zinc additive for the first 500 miles of operation. Do not drive for long periods at any single speed, always vary your speed. Do not tow a trailer or put other heavy loads on the vehicle. It is best to avoid long periods of idling during this period. Check the engine oil and coolant levels daily.
Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. Let the engine cool down completely and repeat the process 2-3 more times. Do not idle the engine for an extended period at this time, this is critical for breaking in the camshaft.
At 500 Miles change the engine oil and filter using conventional (non-synthetic) oil with a zinc additive. Check fuel and ignition settings, adjust valves (where applicable). Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading or long periods of idling.
Change the oil and oil filter again at 1,000 miles. Continue using conventional (non-synthetic) oils and zinc additive, until about 4,000 miles. At that point, you may run a quality 10w30 synthetic oil if you choose. Using an oil with zinc or a zinc additive for the life of your engine is recommended.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Specifications:
Will this fit into an ‘02 Dakota R/T?
Will this fit my 1989 dodge d150 5.2 ?
How does the fuel consumption compare to the stock 5.9l Magnum 360 engine? Also, can the engine be tuned down to run 81 (if so what would the performance loss be)?
Can i use the wiring harness from a 98 jeep grand cherokee 5.9L? its got the magnum 360 in it
Will this fit a 1988 W100? Current engine is a 318. What will I need to buy extra to make the swap? Will you take the 318 as a Core?
Will this fit into an 87 ramcharger?
Will this fit in my 1978 Dodge Magnum. It has the original 360.
Will this bolt up and work in my 1997 dodge ram 2500?
