Blueprint Engines BP3474CTC

Blueprint Engines Small Block Ford 347ci Stroker Dress Engine 415HP/400TQ



Truck Freight: $159.00
Blueprint Engines Small Block Ford 347ci Stroker Dress Engine 415HP/400TQ $5,049.99
Out of stock

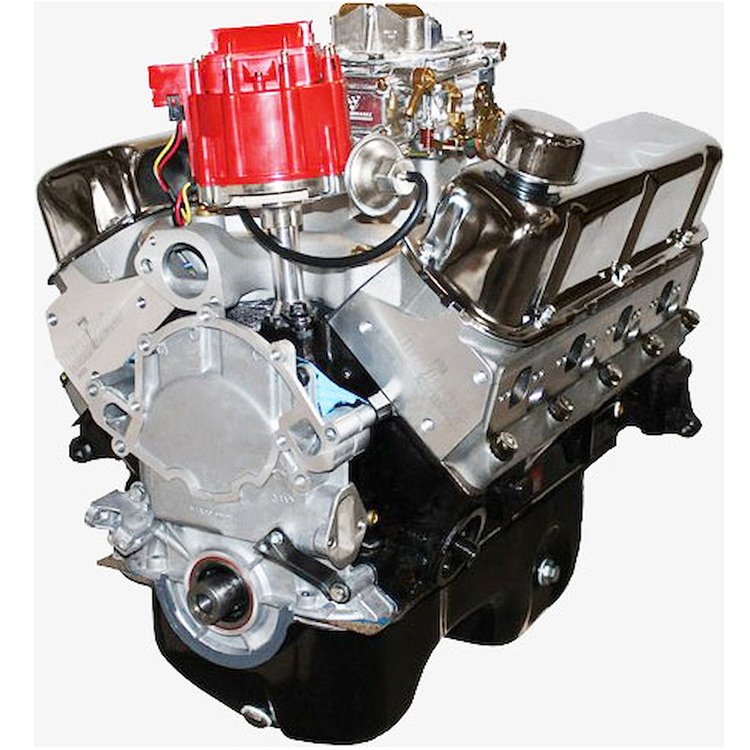

Small Block Ford 347ci Stroker Dress Engine
  • 415HP/400TQ
  • Specifications:

    Engine Balance (oz.)
    External, 28 imbalance
    Engine Make/Size
    Ford Small Block
    Engine Assembly Style
    Long block
    Engine Balance
    External, 28oz, Imbalance
    RPM Power Range
    Compression Ratio
    Cylinder Heads Included
    Crate Engine Cylinder Head Material
    Camshaft Style
    Hydraulic roller tappet
    Intake Manifold Included
    Carburetor Included
    Distributor Included
    Throttle Body Included
    Oil Pan Included
    Timing Cover Included
    Water Pump Included
    Harmonic Balancer Included
    Valve Covers Included
    Flexplate Included
    Flywheel Included
    Air Cleaner Included
    Spark Plugs Included
    Spark Plug Wires Included
    Fuel Delivery
    One Carb
    Computer Included
    Wiring Harness Included
    Rear Main Seal Style
    Sold individually
    Not Legal
    CARB EO Number
    CARB EO Number
    Manufacturer's Part Number:
    Shipping Weight:
    Package Height:
    Package Depth:
    Package Width:

    Blueprint Engines are a great choice for drivable and reliable high performance engines. All rotating assemblies are balanced within 2 grams on a computerized balancer. Blueprint Engines are dyno tested and include dyno sheets.
    Best of all they feature a 30 month/50,000 mile warranty.

    Recommended Stall Converter: 2000-2400 rpm
    Recommended Fuel: 91 Octane


    • Seasoned block bored .040'' over
    • 2-Bolt Main
    • Square and parallel decked
    • Align honed main bearing bore
    • Cylinders are sonic tested for thickness
    • Cylinders honed on a computer controlled machine to within .0002'' straightness and roundness

      Rotating Assembly:
    • Cast Steel 3.4" Stroke Crank & 5.4" Rods
    • Keith Black hypereutectic pistons
    • Hastings Moly rings
    • Clevite bearings
    • Balanced rotating assembly
    • Melling high volume oil pump
    • Heavy duty double roller timing set

      Cylinder Heads:
    • Blueprint Aluminum heads, 58cc chamber
    • Hardened retainers and 1.437'' diameter valve springs
    • 2.02'' swirl polished intake valves
    • 1.60'' swirl polished exhaust valves

      Camshaft Specs:
    • Hydraulic Roller Cam
    • Duration @ .050'' Lift: 218 Intake / 226 Exhaust
    • Lift: .543'' Intake / .554'' Exhaust
    • Lobe Separation: 112°

      Other Features:
    • New Chrome valve covers
    • New oil pan
    • New timing cover
    • Brass freeze plugs
    • 10:1 compression

      Dress Model Adds:
    • Dual Plane Satin Aluminum Intake Manifold
    • Holley 600 cfm Electric Choke Vacuum Secondary Aluminum Street Carburetor - 510-0-80457SA or Holley Sniper EFI System
    • HEI Distributor & Coil

      Note: Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

    • Part Number: BP3474CT
    • Fuel Delivery Type: Carbureted, 600cfm
    • Spark Plug: Champion 792
    • Spark Plug Gap: .045"
    • Harmonic Balancer: 28.4 Ounce, 6.4" Diameter
    • Flexplate/Flywheel: 28.4 Ounce Weighted
    • Intake Manifold: Dual plane
    • Fuel Recommendation: 91 Octane
    • Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
    • Firing Order: 1-3-7-2-6-5-4-8

    JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.

    BP3474CTC is rated 5.0 out of 5 by 1.
    Rated 5 out of 5 by from Fantastic Was going to rebuild the factory original 289 in my mustang, was talked onto this as a less hassle option by my hot rod shop. Fun city- hauls serious tail, reliable, driveable, everything I wanted. 1965 mustang needed front sump oil pan, came with rear. A little hassle as hei didnt allow hipo air cleaner
    Date published: 2017-06-18
    • y_2019, m_5, d_18, h_8
    • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
    • cp_1, bvpage1
    • co_hasreviews, tv_0, tr_1
    • loc_en_US, sid_10001_10001_1581878, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_jegs

    Will this work with a 1966 galaxie?

    Asked by: bstras21
    This should work if you are replacing a small block V8 engine.
    Answered by: Rusty B
    Date published: 2018-06-04

    Will this engine work in a stock 1985 f150 currently with a 351w?

    Asked by: sdp47
    Yes, this will work in your Ford F150 truck.
    Answered by: Rusty B
    Date published: 2018-05-31

    1994 Mercury Grand Marquis LS 4.6 .... engine shows signs of age, time to start the plan. Am considering a crate engine such as this BP3474CTC for example. IF and only if an engine like this could be installed with relative ease. Any information?

    Asked by: Thunderchiefs 12
    Unfortunately we do not preform any engine installations here, I would not be able to tell you exactly what would all be involved putting this engine into your vehicle.
    Answered by: BluePrint Engines
    Date published: 2018-05-30

     Willthe fit in96 Mustang GT

    Asked by: Stevey wevey
    This engine will come standard with a dual plane intake and 600 CFM carburetor, this will not work or communicate with your factory computer system. This is still a 302 based engine and would physically fit between your frame rails.
    Answered by: BluePrint Engines
    Date published: 2018-05-30

    Will My 05 mustang be able to handle this engine , I have a 05 v6

    Asked by: Keion
    Keion, this engine would physically fit into your 05 Mustang but it will come with a carburetor installed and it will not communicate with your factory computer system.
    Answered by: BluePrint Engines
    Date published: 2018-05-22

    How well will this fit in a 98 cobra

    Asked by: Ashton98
    This engine is a Ford 302 based engine so it will bolt into your 98 Cobra, but it will be ran with a carburetor, not fuel injection.
    Answered by: BluePrint Engines
    Date published: 2018-04-17

    Can this engine fit in a 88 bronco? and will it match up with the transmission?

    Asked by: t0ast
    Yes, if the Bronco has a V8 engine in it now, this will work with most transmissions.
    Answered by: Rusty B
    Date published: 2018-03-27

    will this bolt directly into my 65 tbird

    Asked by: Bob Marley
    If it was a V8 chassis it will bolt in the mounts, but you will need to check the transmission and the other accessories for fitment.
    Answered by: Rusty B
    Date published: 2018-03-21
