Blueprint Engines H8002K

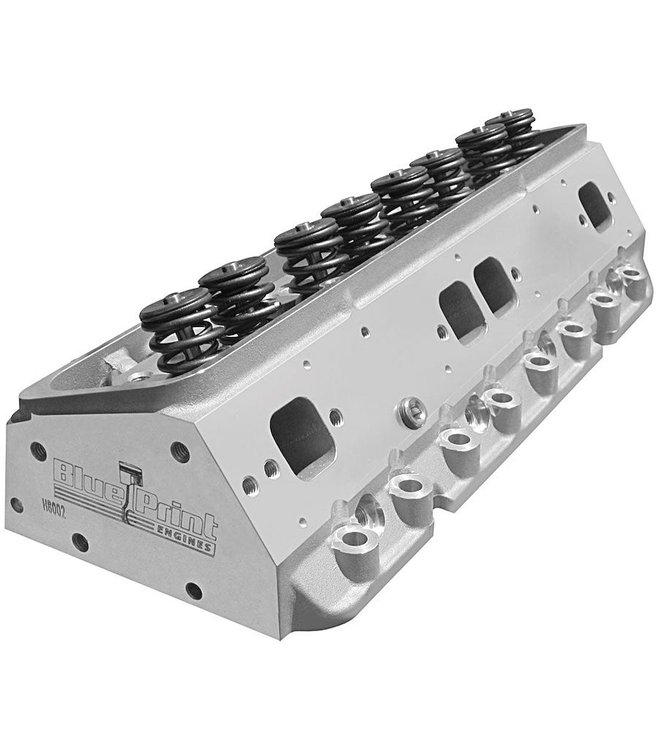

Blueprint Engines Aluminum Cylinder Heads SB-Chevy

138-H8002K

Free Shipping Ships

$899.00
Blueprint Engines Aluminum Cylinder Heads SB-Chevy $899.00
Out of stock
QTY
Aluminum Cylinder Heads
  • SB-Chevy
  • 195CC Intake
  • 64CC Combustion Chamber
  • Straight Plug
  • Assembled
  • Sold In Pairs
  • Items You May Also Consider

    Blueprint Engines H8002K Details

    Muscle Car Series Aluminum Cylinder Heads

    Features:
  • Combustion Chamber Volume (cc): 64cc
  • Intake Runner Volume (cc): 195cc
  • Exhaust Runner Volume (cc): 75cc
  • Intake Port Location: Standard
  • Exhaust Port Shape: Square-port
  • Exhaust Port Location: Standard
  • Spark Plug Style: Straight, .750 Reach Gasket
  • Intake Valve Diameter (in): 2.020"
  • Exhaust Valve Diameter (in): 1.600"
  • Maximum Valve Lift (in): .575"
  • Spring Pressure Closed: 115-125 @ 1.800"
  • Spring Pressure Open: 295-305 @ 1.225"
  • Outside Diameter of Outer Spring (in): 1.437"
  • Number of Springs Per Valve: Dual
  • Retainer Material: Chromemoly steel
  • Lock Style: 7 degree
  • Valve Stem Seal Style: Viton® Fluoroelastomer
  • Rocker Arm Nut Thread Size: 3/8" x 24
  • Guideplate Pushrod Size: 5/16"
  • Valve Cover Mounting Style: Perimeter bolt
  • Accessory Bolt Holes Drilled: Yes
  • Intake Valve Angle: 23 Degrees
  • Exhaust Valve Angle: 23 Degrees
  • Valve Guide Material: Manganese bronze
  • Valve Seat Machine Style: 3-angle
  • Valve Seat Material: Chrome Nickel
  • Steam Holes Drilled: No
  • Oiling Style: Through pushrod
  • Machined for O-Ring: No Heat Crossover: No

  • Specifications:

    Quantity
    Sold as a pair
    Cylinder Head Style
    Assembled
    Guideplates Included
    Yes
    Rocker Arm Studs Included
    Yes
    Accessory Bolt Holes Drilled
    Yes
    Cylinder Head Finish
    Natural
    Cylinder Head Material
    Aluminum
    CNC-Machined Combustion Chamber
    No
    CNC-Machined Exhaust Runner
    No
    CNC-Machined Intake Runner
    No
    Damper Spring Included
    Yes
    Exhaust Valves Included
    Yes
    Heat Crossover
    No
    Intake Valves Included
    Yes
    Locks Included
    Yes
    Machined for O-Ring
    No
    Retainers Included
    Yes
    Rocker Arm Nuts Included
    No
    Rocker Arms Included
    No
    Steam Holes Drilled
    No
    Valve Guides Included
    Yes
    Valve Seats Machined
    Yes
    Valve Springs Included
    Yes
    Valve Stem Seals Included
    Yes
    Combustion Chamber Volume (cc)
    64
    Intake Port Location
    Standard
    Exhaust Port Location
    Standard
    Oiling Style
    Through pushrod
    Intake Valve Diameter (in.)
    2.02
    Exhaust Valve Diameter (in.)
    1.6
    Valve Guide Material
    Manganese bronze
    Intake Runner Volume (cc)
    195
    Valve Seat Material
    Chrome nickel
    Valve Cover Mounting Style
    Perimeter bolt
    Valve Seat Machine Style
    3-angle
    Exhaust Runner Volume (cc)
    75
    Outside Diameter of Outer Spring (in.)
    1.437
    Maximum Valve Lift (in.)
    0.575
    Number of Springs Per Valve
    Dual
    Retainer Material
    Chromoly steel
    Lock Style
    7 degree
    Spark Plug Style
    Straight
    Manufacturer's Part Number:
    H8002K
    Shipping Weight:
    60.31
    Package Height:
    15.9
    Package Depth:
    25.2
    Package Width:
    11.2

    BluePrint Muscle Car Series Small Block Chevy aluminum Cylinder heads, designed for hydraulic flat tappet and hydraulic roller cams. Our 195cc intake runner heads have proven themselves time and time again at making more power than most other value priced heads. Ports and combustion chambers are as cast. Great port and combustion chamber design, combined with high quality 21-4n Stainless steel valves, Viton seals, and double springs make these heads a great value as well as making great power.

    H8002K is rated 4.0 out of 5 by 2.
    Rated 5 out of 5 by from Just as described I was looking for a good quality head in an affordable Package.. Been around Blueprint engines before so thought I'd give these a shot. So far they look good and quality is great. Will be installing soon hopefully They are what they say they are
    Date published: 2017-01-27
    Rated 3 out of 5 by from Good and bad Have not run the engine yet, set to go on the dyno in a week. Great price for the heads, love the kidney shape combustion chamber and the design of intake runners and bowl area. Down side of the heads... they were full of metal shavings. Not a problem for me only because I ported and polished the heads. But if I was going to bolt them on right out of the box that could be a problem.
    Date published: 2016-08-01
    • y_2019, m_5, d_23, h_24
    • bvseo_bulk, prod_bvrr, vn_bulk_2.0.12
    • cp_1, bvpage1
    • co_hasreviews, tv_0, tr_2
    • loc_en_US, sid_10001_10001_1637013, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_jegs

    will this head work with roller cam if valve spring change to match cam

    Asked by: Anonymous
    Yes these cylinder heads can be used with either a roller cam or flat tappet cam.
    Answered by: BluePrint Engines
    Date published: 2019-05-14

    Will these heads H8002k, work with 350-7107 edelbrock intake manifold?

    Asked by: NickT
    No, these heads need an intake that is made for pre 1986 Chevy cylinder heads.
    Answered by: Rusty B
    Date published: 2018-09-12

    The most important question... what are the flow numbers across the range? All the specs are great but if they only flow 200cfm then I'm not interested.

    Asked by: Hpdracing
    Please refer back to our website directly, www.blueprintengines.com We will have flow numbers for this cylinder head listed there.
    Answered by: BluePrint Engines
    Date published: 2018-07-12

     If I took the stock heads off my newly rebuilt Chevy 350 could I use the stock pushrods and rocker arms on these heads?

    Asked by: Sam73
    That would depend on the cam and lifter setup that you have in your engine currently. The best thing to do would be measure the setup once you have everything back together and order the correct length pushrod for the engine.
    Answered by: BluePrint Engines
    Date published: 2018-06-22

    Do these heads accept vortec style manifolds and center bolt valve covers?

    Asked by: Fast76
    No, these are made for the early style intakes and perimeter valve cover bolts.
    Answered by: Rusty B
    Date published: 2018-03-28

    Will these heads;138-H8002K work on a 1969 small block 307 V8, with an Eldebrock Torker-Plus Cam, 5002 and Eldebrock Performer Manifold?

    Asked by: Mrfine69
    Yes, these heads will work for that application.
    Answered by: Rusty B
    Date published: 2018-03-13

    Will these heads work on a 1969, 307 small block, with an Edelbrock Torker Plus Cam, 5002.

    Asked by: Mrfine69
    Yes, these heads will work for that application.
    Answered by: Rusty B
    Date published: 2018-06-21

    Will these heads/springs work with solid cam/lifters? (ie non-roller, but solid not hydraulic).

    Asked by: Anonymous
    This head has valve springs that are made to work with a hydraulic camshaft not solid.
    Answered by: Rusty B
    Date published: 2018-02-01
