Brodix 1321001

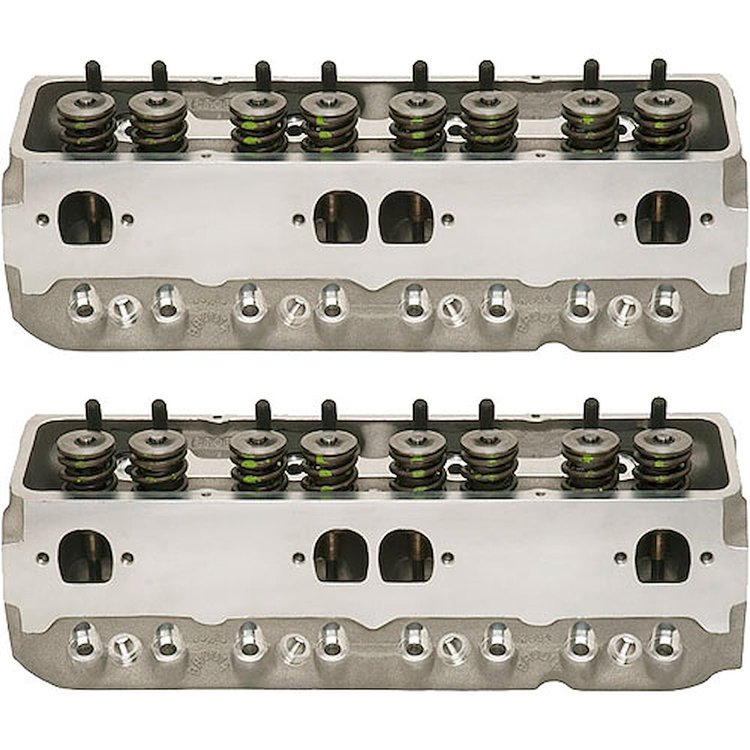

Brodix Dragon Slayer DS 225 Series Cylinder Heads 225cc Intake Ports

158-1321001

Free Shipping Ships directly from the manufacturer on 09/30/19
Save $20 Off $250, $50 Off $500, $100 Off $1,000, $150 Off $2,000. Promo Code: SAVEMORE exclusions apply

$1,842.33
Brodix Dragon Slayer DS 225 Series Cylinder Heads 225cc Intake Ports $1,842.33
Out of stock
QTY
Dragon Slayer DS 225 Series Cylinder Heads
  • 225cc Intake Ports
  • 68cc Combustion Chambers
  • 2.080'' Intake / 1.600'' Exhaust Valves
  • 1.550'' Dia. Springs - 240# Seat Pressure
  • Steel Retainers
  • Angle Plug
  • Assembled, 2/pkg.
  • Brodix 1321001 Details

    Dragon Slayer Series Cylinder Heads

  • 68cc Combustion Chamber
  • Cylinder Head Specifications
  • Intake Port Volume: 225cc
  • Combustion Chamber Volume: 68cc
  • Valves: 2.080'' dia. x 4.965'' o.a.l. Intake / 1.600'' dia. x 4.965'' o.a.l. Exhaust ( 11/32'' Stem Diameter )
  • Valve Springs: 1.550'' Diameter - Open Pressure: 550 lbs.; Closed Pressure: 240 lbs.; Installed Height: 1.950''; Max Lift: .700''
  • Spring Retainers: 1.550'' 10° Steel
  • Rocker Studs: 7/16''
  • Guide Plates: 5/16''
  • Valve Seals: 11/32''
  • Spark Plug Configuration: Angled

    Facts and Related Components
  • Torque Heads: 70 ft-lb.
  • Torque Rocker Studs: 40-45 ft-lb.
  • Intake Gasket: Fel-Pro p/n 375-1206, Cometic p/n 245-C5414
  • Head Gasket: Fel-Pro p/n 375-1003 (350ci) / 375-1004 (400ci) or Cometic p/n 245-C5399 (350ci) / 245-C5403 (400ci)
  • Exhaust Gasket: Fel-Pro p/n 375-1406 or Cometic p/n 245-C5415
  • Head Bolts: ARP p/n 070-134-3601 or Manley p/n 660-42313
  • Head Bolt Washers: MANLEY p/n 660-42102
  • Head Studs: ARP p/n 070-234-4301 (12-point)
  • Spark Plug Specs: 14mm Thread, .750'' (3/4'') Reach, Gasket Seat
  • Valve Angle: 23°
  • Angle Milling: .0078'' per cc
  • Flat Milling: .0060'' per cc
  • Pushrod Slots: Standard
  • Stud Girdle: Standard
  • Rocker Arms: Standard (optional, T&D 2256 or Jesel KPS 01001)
  • Lifters: Standard
  • Exhaust Pattern: Standard
  • Valve Centerline: Standard
  • Spring Pockets: May not be cut any larger or deeper than 1.550''
  • Accessory Bolt Holes are Drilled
  • Recommended Intake Manifold: Brodix BM 1000 (p/n 158-BM1000) / HV 1000 (p/n 158-HV1000) / HV 1002 (p/n 158-HV1002) / SE 100 (p/n 158-SE100)

  • Specifications:

    Quantity
    Sold as a pair
    Cylinder Head Style
    Assembled
    Guideplates Included
    Yes
    Rocker Arm Studs Included
    Yes
    Accessory Bolt Holes Drilled
    Yes
    Cylinder Head Finish
    Natural
    Cylinder Head Material
    Aluminum
    CNC-Machined Combustion Chamber
    Yes
    CNC-Machined Exhaust Runner
    No
    CNC-Machined Intake Runner
    No
    Damper Spring Included
    No
    Exhaust Valves Included
    Yes
    Heat Crossover
    No
    Intake Valves Included
    Yes
    Locks Included
    Yes
    Machined for O-Ring
    No
    Retainers Included
    Yes
    Rocker Arm Nuts Included
    No
    Rocker Arms Included
    No
    Steam Holes Drilled
    No
    Valve Guides Included
    Yes
    Valve Seats Machined
    Yes
    Valve Springs Included
    Yes
    Valve Stem Seals Included
    Yes
    Combustion Chamber Volume (cc)
    68
    Intake Port Location
    Standard
    Exhaust Port Location
    Standard
    Oiling Style
    Through pushrod
    Intake Valve Diameter (in.)
    2.08
    Exhaust Valve Diameter (in.)
    1.6
    Valve Guide Material
    Phosphorous bronze
    Intake Runner Volume (cc)
    225
    Valve Seat Material
    Ductile iron
    Valve Cover Mounting Style
    Perimeter bolt
    Intake Valve Angle
    23
    Valve Seat Machine Style
    3-angle
    Outside Diameter of Outer Spring (in.)
    1.55
    Maximum Valve Lift (in.)
    0.7
    Number of Springs Per Valve
    Dual
    Retainer Material
    Steel
    Lock Style
    10 degree
    Exhaust Valve Angle
    23
    Spark Plug Style
    Angled
    Valve Stem Seal Style
    Positive stop
    Rocker Arm Nut Thread Size (in.)
    7/16"-20
    Manufacturer's Part Number:
    1321001
    Shipping Weight:
    66.3
    Package Height:
    21
    Package Depth:
    9.5
    Package Width:
    13.4

    Ported Head Flows 300+ CFM at .600'' Lift!
    23° Intake & Exhaust Valve Angles

    The Brodix Dragon Slayer Series Small Block Chevy Aluminum Cylinder Heads are the definition of economical out-of-the-box horsepower! The 23° Dragon Slayer DS 225 Series cylinder head comes standard with CNC ported combustion chambers allowing this port to flow over 300 cfm @ .600'' cam lift. Every casting is poured from A-356 virgin aluminum and tested before Brodix utilizes their in-house processes such as finish machining and heat treating to assure that you receive the best products for your hard-earned money. Solid, phosphorous bronze guides are used to reduce valve leakage and oil consumption. The ductile iron valve seats are installed for use with unleaded fuel. This head is also milled and drilled on the ends for accessory mounts and uses the traditional perimeter-style 4-bolt pattern valve cover and only offered with the straight spark plug angle configuration. The best thing about this big flowing head is that all standard components such as rockers, lifters and intake manifold may be used! Sold in Pairs. !

      VALVE SPRING Specs
      1.550'' Diameter Valve Spring for Mechanical Flat Tappet Cam
  • Spring Pressure Open: 400 lbs.
  • Spring Pressure Closed: 140 lbs.
  • Installed Height: 1.950''
  • Max Lift: .600''
  •   1.550'' Diameter Valve Spring for Mechanical Roller Lifter Cam
  • Spring Pressure Open: 550 lbs.
  • Spring Pressure Closed: 240 lbs.
  • Installed Height: 1.950''
  • Max Lift: .700''
