Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC284-BLK

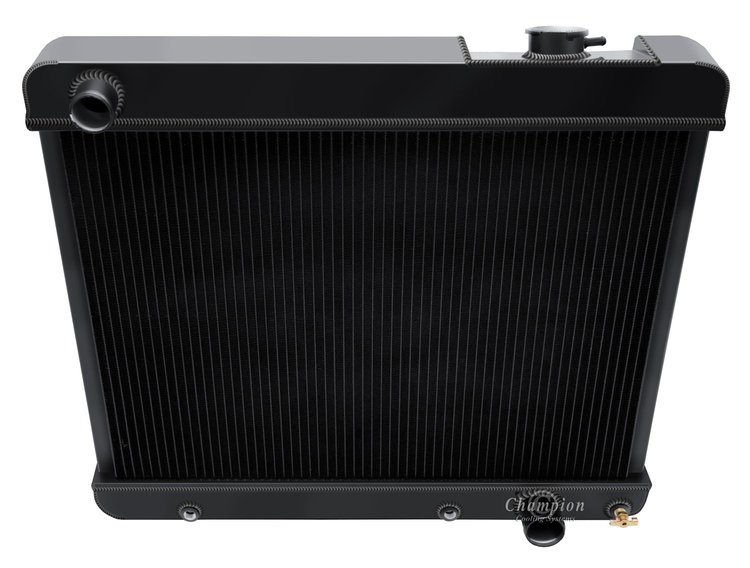

3-Row Aluminum Radiator 1961-1966 GM C/K Pickup Truck 283ci V8, Semi-Gloss Black Finish
$26999
2 left in stock
Ships Today
Lowest Price GuaranteeGM
3-Row Aluminum Radiator1961-1966 GM C/K Pickup Truck 283ci V8 Semi-Gloss Black Finish
Features:
- Champion Core 3-Row Aluminum Radiator
- All Aluminum 2 mm Thick Tanks, Fittings and Brackets
- Billet Radiator Fill Neck
- OEM-Style Brass Petcock
- Brazed Core Technology
- Max Cool Louvered Fins, 14-16 Fins per Inch
- 100% Tig Welded
- 3/8 (.375) in. Spaced Tubes
- 1/2-20 Straight Thread, Inverted Flare Transmission Cooler Connections
- Mounting Specs: Saddle Mount
- 13 lb. Radiator Cap Included
- Semi-Gloss Black Finish: A long-lasting single component water-based coating that is blended by a celliose coating using acrylic emulsion, anti-rust pigment, and other auxiliary agents to resist chipping, peeling, chemicals and a heat tolerance up to 300 degrees F.
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height7.5
Package Width25.0
Package Length27.5
Weight17.2 PG
Overall Thickness2.75 in (69.9 mm)
Overall Height23.375 in (593.7 mm)
Outlet Size1.75 in (44.5 mm)
Radiator Cap IncludedYes
Radiator MaterialAluminum
QuantitySold individually
Inlet LocationDriver side
Inlet Size (In.)1 1/2
Core Height17.5 in (444.5 mm)
Core Thickness2.25 in (57.15 mm)
Mounting Brackets IncludedYes
Core Width22.75 in (577.85 mm)
Row Quantity3
Outlet LocationPassenger
Overall Width25.5 in (647.7 mm)
Tube Size0.625 in (15.9 mm)
Radiator FinishSemi-gloss black
Fan IncludedNo
Transmission CoolerYes
Part FitmentDirect Fit
Bracket MaterialAluminum
Radiator StyleDownflow
Vendor Part NumberCC284-BLK
Package Qty1
Package TypeEA
