Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC339B-BLK

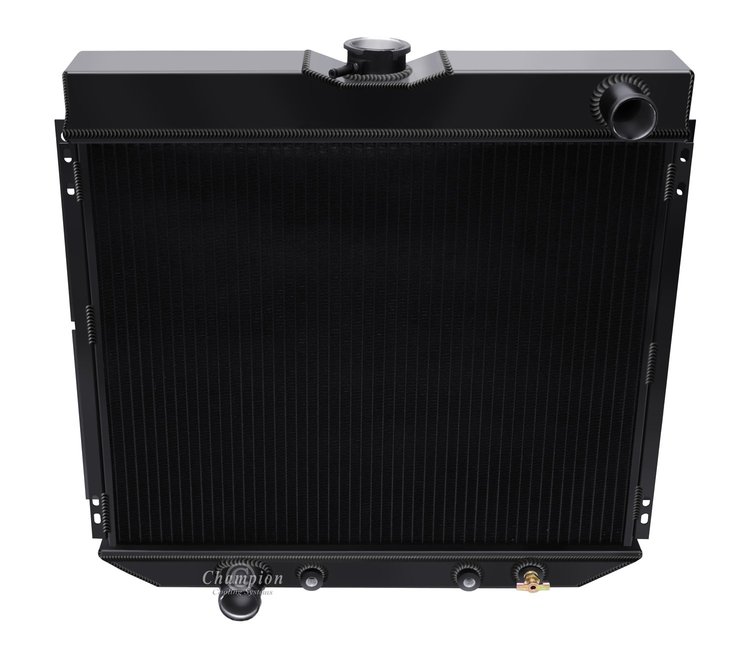

3-Row Aluminum Radiator 1963-1977 Ford Mustang/Mavrick/Falcon/Torino/Fairlane, 1966-1973 Mercury Comet/Cougar, Semi-Gloss Black
$26999
1 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeFord
3-Row Aluminum Radiator1963-1977 Ford Mustang/Mavrick/Falcon/Torino/Fairlane 1966-1973 Mercury Comet/Cougar Semi-Gloss Black Finish
Features:
- Champion Core 3-Row Aluminum Radiator
- All Aluminum 2 mm Thick Tanks, Fittings and Brackets
- Billet Radiator Fill Neck
- OEM-Style Brass Petcock
- Brazed Core Technology
- Max Cool Louvered Fins, 14-16 Fins per Inch
- 100% Tig Welded
- 3/8 (.375) in. Spaced Tubes
- 1/8-27 NPT Transmission Cooler Connections
- Mounting Specs: Vertical - 12 1/2 (.500) in. x Horizontal - 21 in.
- 13 lb. Radiator Cap Included
- Semi-Gloss Black Finish: A long-lasting single component water-based coating that is blended by a celliose coating using acrylic emulsion, anti-rust pigment, and other auxiliary agents to resist chipping, peeling, chemicals and a heat tolerance up to 300 degrees F.
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height8.0
Package Width24.0
Package Length25.0
Weight17.0 PG
Radiator Cap IncludedYes
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold individually
Inlet LocationPassenger Side
Inlet Size (In.)1 1/2
Core Height16.375 in (415.925 mm)
Core Thickness2.5 in (63.5 mm)
Mounting Brackets IncludedYes
Core Width20.25 in (514.35 mm)
Row Quantity3
Outlet LocationDriver side
Tube Size0.625 in (15.9 mm)
Radiator FinishPolished
Fan IncludedNo
Transmission Cooler1/8-27 NPT
Part FitmentDirect Fit
Bracket FinishPolished
Bracket MaterialAluminum
Radiator StyleDownflow
Vendor Part NumberCC339B-BLK
Package Qty1
Package TypeEA
