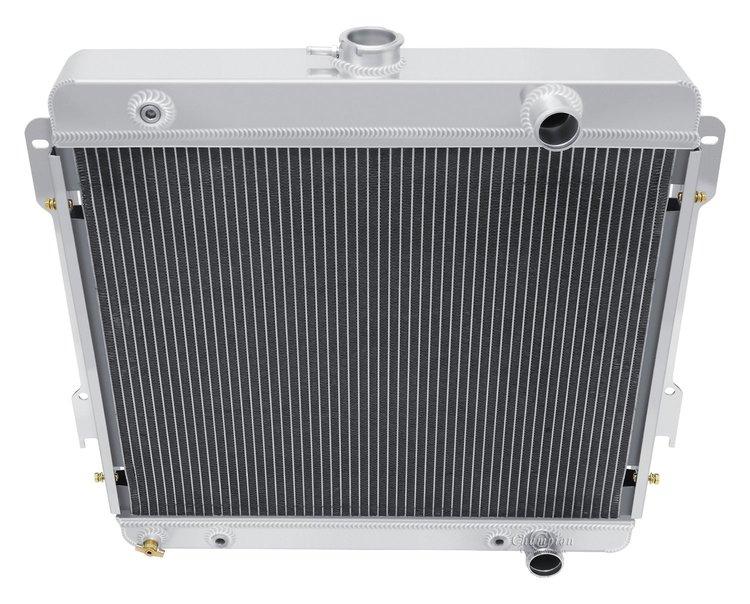

All-Aluminum Radiator 1968-1978 Mopar Cars, Trucks, Vans 3.2L/3.7L Slant-6 Engines
InfoVehicle Info Needed
CHAMPION COOLING SYSTEMSPART NUMBER: 166-CC512

All-Aluminum Radiator 1968-1978 Mopar Cars, Trucks, Vans 3.2L/3.7L Slant-6 Engines

$25499
2 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Mopar
All-Aluminum Radiator
  • 1968-1978 Mopar Cars, Trucks, Vans
  • 3.2L/3.7L Slant-6 Engines
  • Champion Core 3-Row

    CC512 Features:

    • Includes 13 lb. cap
    • Upper Tank Thickness: 3.125 in.
    • Lower Tank Thickness: 2.500 in.
    • 100% TIG welded
    • 3/8 in. spaced tubes
    • 2 mm thick tanks and fittings
    • Brass petcock
    • Brazed core
    • 14-16 fins per inch
    • Billet fill neck
    • Transmission Cooler Thread: 1/8-27 in. NPT
    • Part TypeRadiator
    BrandCHAMPION COOLING SYSTEMS
    Package Height7.0
    Package Width25.5
    Package Length28.5
    Weight17.96 PG
    Overall Height23.375 in (593.7 mm)
    Outlet Size1.5 in (38.1 mm)
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    Drain Valve IncludedYes
    QuantitySold individually
    Inlet LocationPassenger Side
    Inlet Size (In.)1 1/2
    Core Height17.875 in (454.025 mm)
    Core Thickness2.25 in (57.15 mm)
    Mounting Brackets IncludedYes
    Core Width20.75 in (527.05 mm)
    Row Quantity3
    Outlet LocationPassenger side
    Fan IncludedNo
    Transmission Cooler1/8-27 NPT
    Part FitmentDirect Fit
    Bracket FinishPolished
    Bracket MaterialAluminum
    Radiator StyleDownflow
    Vendor Part NumberCC512
    Package Qty1
    Package TypeEA
