Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC526B-BLK

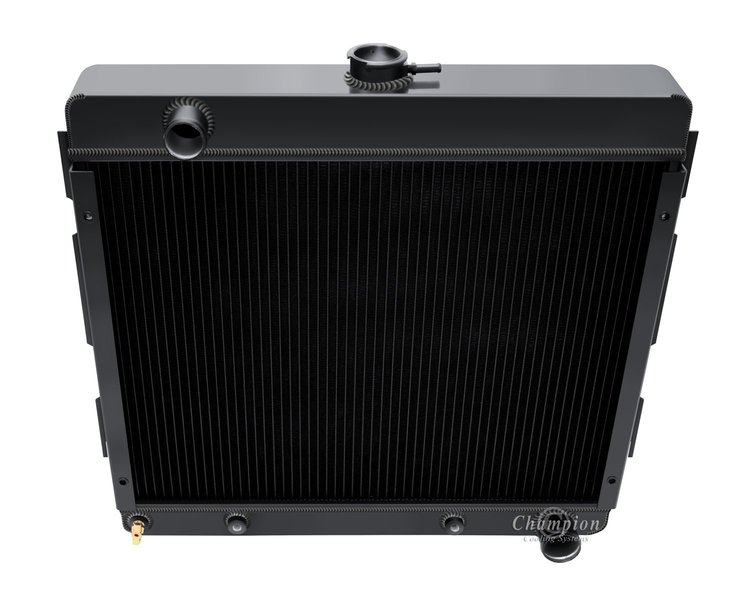

3-Row Aluminum Radiator 1970-1972 Dodge Dart 318/240/360 V8, 1970-1972 Plymouth Duster/Valiant 318/240/360 V8, Semi-Gloss Black
$26999
1 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeMopar
3-Row Aluminum Radiator1970-1972 Dodge Dart 318/240/360 V8 1970-1972 Plymouth Duster/Valiant 318/240/360 V8 Semi-Gloss Black Finish
Features:
- Champion Core 3-Row Aluminum Radiator
- All Aluminum 2 mm Thick Tanks, Fittings and Brackets
- Billet Radiator Fill Neck
- OEM-Style Brass Petcock
- Brazed Core Technology
- Max Cool Louvered Fins, 14-16 Fins per Inch
- 100% Tig Welded
- 3/8 (.375) in. Spaced Tubes
- 1/8-27 NPT Transmission Cooler Connections
- 13 lb. Radiator Cap Included
- Semi-Gloss Black Finish: A long-lasting single component water-based coating that is blended by a celliose coating using acrylic emulsion, anti-rust pigment, and other auxiliary agents to resist chipping, peeling, chemicals and a heat tolerance up to 300 degrees F.
Stay Cool and Look Cool with Champion Core Semi-Gloss Black Radiators!
Champion Cooling introduces their 3-Row Aluminum Radiators now with a long-lasting semi-gloss black finish. This new water-based coating is resistant to chipping, peeling, chemicals and is heat tolerant up to 300 degrees F. Expect the same sufficient cooling capacity for strip or strip vehicles, brazed-core technology with all-welded seams (without epoxy) and included standard radiator cap, now all with an eye-catching finish!
Part TypeRadiator
Product LineChampion Cooling Systems 3-Row Aluminum Semi-Gloss Black Radiators
BrandCHAMPION COOLING SYSTEMS
Package Height9.0
Package Width26.0
Package Length27.0
Weight20.8 PG
Radiator Cap IncludedYes
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold individually
Inlet LocationDriver side
Inlet Size (In.)1 1/2
Core Height17 in (431.8 mm)
Core Thickness2.5 in (63.5 mm)
Mounting Brackets IncludedYes
Core Width22.375 in (568.325 mm)
Row Quantity3
Outlet LocationPassenger
Tube Size0.625 in (15.9 mm)
Radiator FinishPolished
Fan IncludedNo
Transmission Cooler1/8-27 NPT
Part FitmentDirect Fit
Bracket FinishPolished
Bracket MaterialAluminum
Radiator StyleDownflow
Vendor Part NumberCC526B-BLK
Package Qty1
Package TypeEA
No Questions
No Reviews
