Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-CC5559-BLK

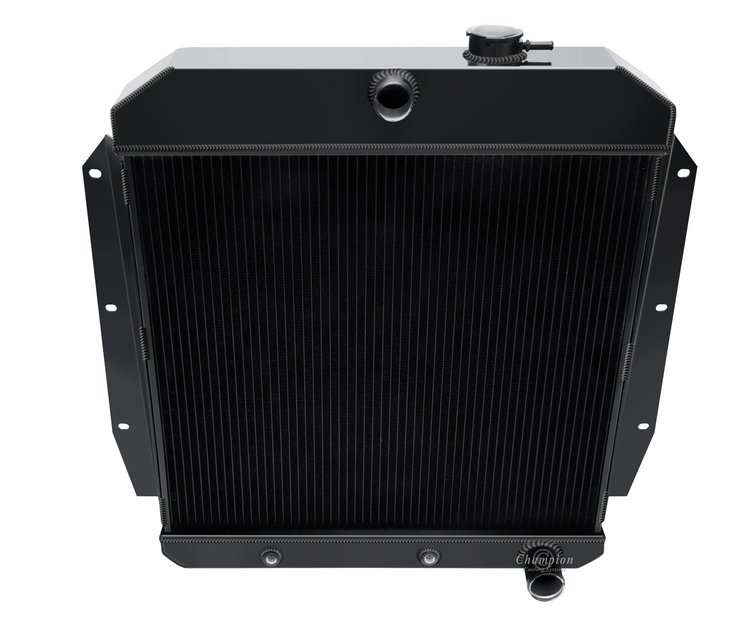

3-Row Aluminum Radiator 1955-1959 Chevy Pickup Truck, Semi-Gloss Black Finish
$26999
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM
3-Row Aluminum Radiator1955-1959 Chevy Pickup Truck Semi-Gloss Black Finish
Features:
- Champion Core 3-Row Aluminum Radiator
- All Aluminum 2 mm Thick Tanks, Fittings and Brackets
- Billet Radiator Fill Neck
- OEM-Style Brass Petcock
- Brazed Core Technology
- Max Cool Louvered Fins, 14-16 Fins per Inch
- 100% Tig Welded
- 3/8 (.375) in. Spaced Tubes
- 1/2-20 Straight Thread, Inverted Flare Transmission Cooler Connections
- Mounting Specs: Vertical - 13 3/4 (.750) in. x Horizontal - 25 3/4 (.750) in.
- 13 lb. Radiator Cap Included
- Semi-Gloss Black Finish: A long-lasting single component water-based coating that is blended by a celliose coating using acrylic emulsion, anti-rust pigment, and other auxiliary agents to resist chipping, peeling, chemicals and a heat tolerance up to 300 degrees F.
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height7.5
Package Width28.0
Package Length30.0
Weight20.9 PG
Radiator Cap IncludedYes
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold individually
Inlet LocationCenter
Inlet Size (In.)1 1/2
Core Height19.375 in (492.125 mm)
Core Thickness2.25 in (57.15 mm)
Mounting Brackets IncludedYes
Core Width21.75 in (552.45 mm)
Row Quantity3
Outlet LocationPassenger
Tube Size0.625 in (15.9 mm)
Radiator FinishPolished
Fan IncludedNo
Transmission Cooler1/2-20 straight, inverted flare
Part FitmentDirect Fit
Bracket FinishPolished
Bracket MaterialAluminum
Radiator StyleDownflow
Vendor Part NumberCC5559-BLK
Package Qty1
Package TypeEA
