Vehicle Info NeededCHAMPION COOLING SYSTEMSPART NUMBER: 166-MC232

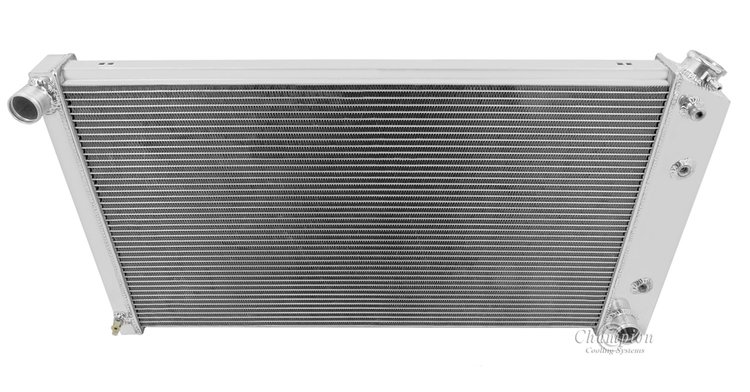

All-Aluminum Radiator 1977-1992 GM Full Size Cars
$31199
Ships Tomorrow
Lowest Price GuaranteeGM
All-Aluminum Radiator1977-1992 GM Full Size Cars Monster Core 4-Row Radiator Cap Included
Features:
- All-aluminum design with 4-rows of 5/8 in. (.625) tubing
- Brazed core technology with welded seams (no epoxy)
- Billet fill neck
- Max cool louvered fin technology
- Tubes are spaced 3/8 (.375) in. apart
- OEM style brass petcock
- Saddle mounted
- Driver side hose inlet, passenger side hose outlet
- Transmission cooler fitting: 1/2-20 straight thread, inverted flare
- 16 lbs. standard radiator cap included
- Note:
- 4-row saddle mount or trimming of the insulator is required for fitment
Part TypeRadiator
BrandCHAMPION COOLING SYSTEMS
Package Height7.0
Package Width20.0
Package Length36.0
Weight21.0 PG
Overall Thickness3.12 in (79.2 mm)
Overall Height18.5 in (469.9 mm)
Outlet Size1.5 in (38.1 mm)
Radiator Cap IncludedYes
Radiator MaterialAluminum
Drain Valve IncludedYes
QuantitySold individually
Mounting Hardware IncludedNo
Inlet LocationUpper driver side
Inlet Size (In.)1.50
Core Height17 in (431.8 mm)
Core Thickness2.75 in (69.85 mm)
Mounting Brackets IncludedNo
Core Width30.5 in (774.7 mm)
Row Quantity4
Outlet LocationLower passenger side
Overall Width35.25 in (895.4 mm)
Radiator FinishPolished
Fan IncludedNo
Part FitmentDirect Fit
Radiator StyleCrossflow
Vendor Part NumberMC232
Package Qty1
Package TypeEA
