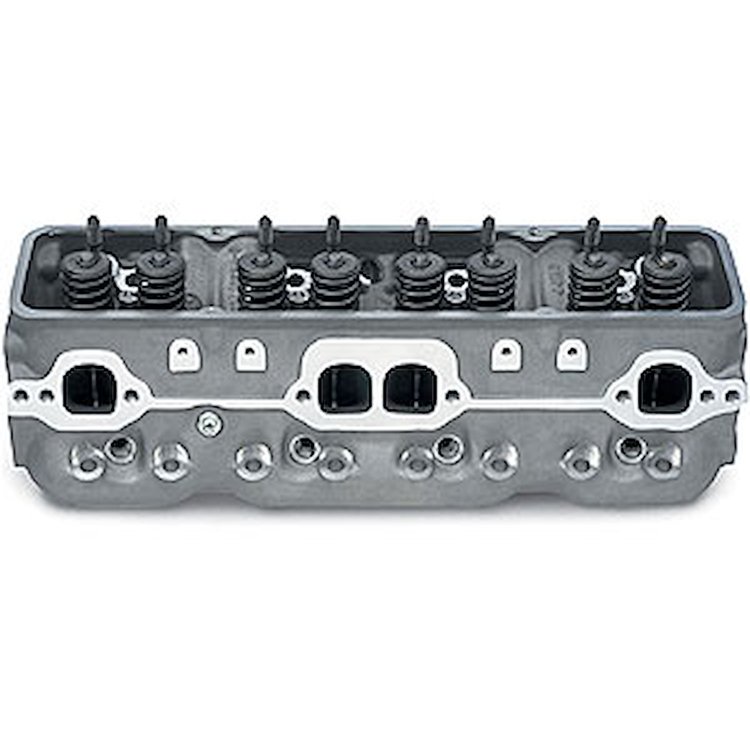

Small Block Chevy Aluminum Fast Burn Cylinder Head 210cc Intake Ports

Name: Small Block Chevy Aluminum Fast Burn Cylinder Head 210cc Intake Ports
Brand: CHEVROLET PERFORMANCE
SKU: 809-12464298
Price: 821.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

"Fast Burn" Aluminum Cylinder Head

210cc Intake Ports
62cc Combustion Chambers
2.000'' Int/1.550'' Exh Valves
Assembled, Sold Individually

Head is sold assembled with the following Chevrolet components:
Bare Head - 12497186
Intake Valves - 12555331
Exhaust Valves - 12551313
Valve Springs - 12551483
Rocker Studs - 12552126
Valve Spring Retainers - 19169661
Valve Stem Seals - 10212810
Valve Spring Shims - 10212809
Valve Locks - 24503856
Installation Notes:
Exhaust Gasket - 375-1470 (may require minor trimming)
Intake Gasket - 809-12497760 or 375-1289
Head Gasket - must use head gaskets with stainless steel fire rings 809-10105117 or 809-12557236 used on Chevrolet Performance Engines.

This Chevrolet Performance Small Block Chevy "Fast Burn" Aluminum Cylinder Head has the highest performance potential of any 23° small block head developed by Chevrolet using flat top pistons. It adds 30 bolt-on horsepower when used on the Chevy ZZ4 crate engine. 62cc fast burn combustion chambers produce higher cylinder pressures by burning more of the available fuel before the piston starts its power stroke downward.

Head surfaces and rocker rails are CNC-machined to exact tolerances, thus eliminating the need for blueprinting. D-shaped ports and runners require no additional porting (but can be for all-out racing applications). This cylinder head fits 1958-Present small block Chevy 283-400 engines with a conventional water flow design (cannot be used on LT1, LT4, or LS1 engine with reverse water flow). The cylinder head is completely assembled with valves, springs, retainers, and 3/8'' rocker studs that require the use of self-aligning rocker arms. Specifications

Aluminum Construction
Intake Runner: 210cc Port raised .240''
Exhaust Runner: 78cc ''D'' Port raised .200''
Combustion Chamber Volume: 62cc
Deck: .400'' thick (Can be milled)
Valve Diameter: 2.00'' Intake, 1.55'' Exhaust
Valve Spring Seat: 1.48''
Valve Springs: .530'' Maximum Valve Lift
Rocker Studs: 3/8'' Top, 7/16'' Bottom
Spark Plugs: Angled, 5/8'' Hex, 3/4'' Reach, Tapered Seat
Dual Intake Bolt Pattern for Vortec (recommended) and Early Intakes
Dual Valve Cover Bolt Pattern for Perimeter or Centerbolt
