Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
R0X 4.500" Bore Spacing

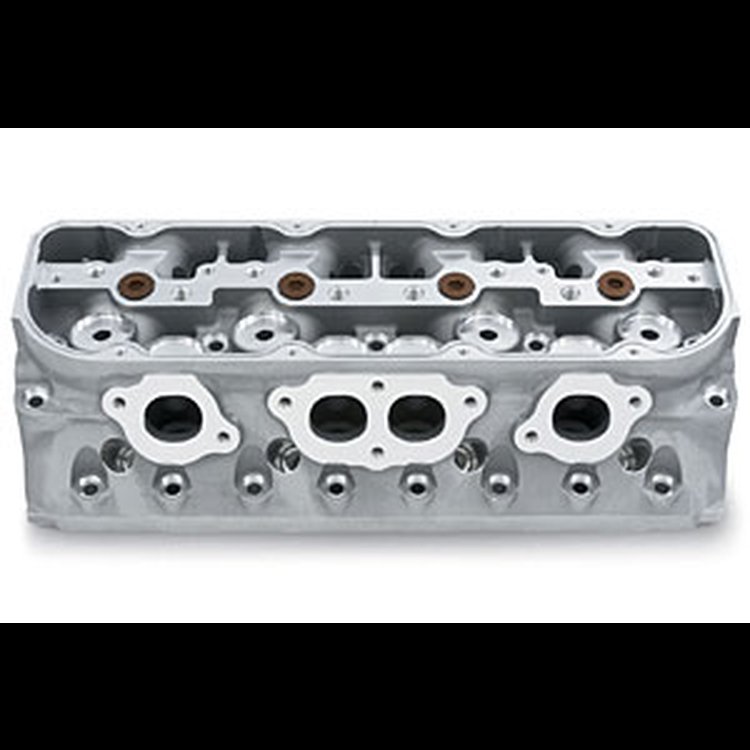

- R0X SB2.2 NASCAR Aluminum Cylinder Head
- Fully CNC-machined aluminum race head with cast ports and combustion chambers for professional finishing
Notes: - Machined for 4.500" bore center R0X cylinder block - 809-25534453
- Fully CNC-machined aluminum race head
- Has cast ports and combustion chambers for professional finishing
- Special spread head-bolt pattern, 3/8' fasteners, 19 holes
- Machined with additional .070' material on deck face
- Valve centerlines moved apart .100' for additional valve clearanceand larger valves
- Valve angles are 11° x 4° intake, and 7° x 2° exhaust
- Exhaust port positions are slightly reoriented, but same bolt patternas standard SB2.2
- 'As-cast peanut' intake ports
- 'As-cast peanut' exhaust ports
- 28cc 'as-cast' combustion chambers
Chevrolet Performance SB2.2 NASCAR Aluminum Cylinder Heads improve durability, simplify preparation, and lower the cost of building/maintaining a competitive small block race engine. "Mirror" intake ports are all angled toward the center of the engine, making these heads perfect for single 4-barrel applications. The spark plug holes were moved for greater combustion efficiency, and 48cc chambers can produce 12.1:1 compression with standard flat-top pistons.
Show More
Features- Sold individually
- HIP-treated* aluminum heads
- Extra-thick deck for heavy flat milling
- Extra port material for custom porting
- Intake/Exhaust Ports: "As-Cast" Peanut
- Valve spring pads accommodate 1.625" springs
- T-washers installed in all four center head bolt bosses
- Replacement -8AN intake port plugs available #809-12480171
- Revised spark plug location for angled 14mm, 5/8" hex, 3/4" reach, gasket seat plugs
- Designed for longer-than-stock 2.150"/1.625" valves and aftermarket shaft-mounted rocker arms
- 4.400" Bore Spacing: 48cc "As-Cast" Combustion Chambers and 11° x 4° Intake, 8° x 0° Exhaust Valve Angles
- 4.500" Bore Spacing: 28cc "As-Cast" Combustion Chambers and 11° x 4° Intake, 7° x 2° Exhaust Valve Angles Requirements
- Specific left-hand and right-hand pistons
- Valve Covers #809-12480006 or #809-12480012
Part TypeCylinder Head
Product LineChevrolet Performance SB2.2 NASCAR Aluminum Cylinder Heads
BrandCHEVROLET PERFORMANCE
Package Height6.1
Package Width8.7
Package Length21.5
Part CategoryPerformance Parts
Casting Number88958667
Plug Type-
Head Casting Number88958667
MaterialAlum
Intake Valve Diameter2.15
Valve Angle (Deg)SB2.2
Port TypeSB2.2
Guide Plates IncludedNo
Combustion Chamber Volume28
Intake Valve Lift (In)2.15
Part FitmentSemi Universal
Intake Runner Volume (Cc)-
Grade TypePerformance
Exhaust Valve Diameter1.625
Vendor Part Number88958667
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
