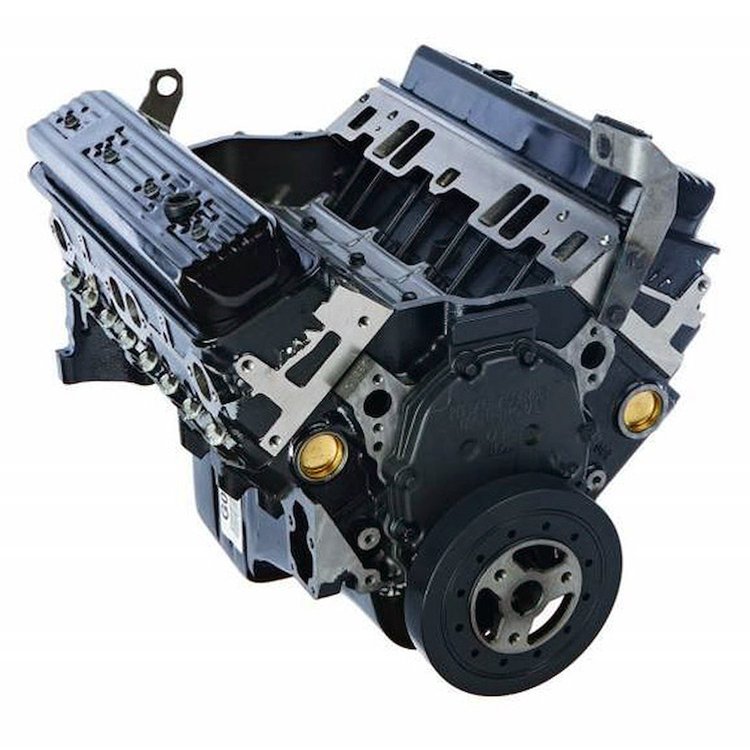

5.7L/350ci L31 Long Block Crate Engine with Vortec Heads for GM Trucks/Vans
InfoVehicle Info Needed
CHEVROLET PERFORMANCEPART NUMBER: 809-12681431

5.7L/350ci L31 Long Block Crate Engine with Vortec Heads for GM Trucks/Vans

$2,72599
Truck Freight
ShippingShips on 09/10/2026
Lowest PriceLowest Price Guarantee

L31 HD Base Engine
    L31 HD Engine
  • Replaces 809-12530283
  • Vortec 64cc Cylinder Heads
  • 1996-2002 Chevrolet Express/GMC Savana (G2,G3)
  • 1996-2000 Chevrolet/GMC Pickup (CK2,CK3)
  • 1996-2000 GMC Suburban (CK2,CK3)
  • 1996-1999 GM Chassis (P3)
  • 3/4 & 1-Ton only

    3-Year/100,000-Mile Warranty, some exclusions may apply

    Fitment Notes: This engine is not intended for marine use.

    Engine Break-In Procedure

    Use conventional or break-in oil (non-synthetic) for the first oil change, be sure to check the oil level in the engine and prime the oil system with an engine priming tool.

    Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. This is critical to break in the camshaft.

    Drive the vehicle with varying speeds and loads on the engine for the first 30 miles. Be sure not to use a lot of throttle or high RPM.  Run five or six medium-throttle accelerations to about 3000 RPM (40 to 50 MPH), then letting off in gear and coasting back down to 20 MPH. Run a couple of hard throttle accelerations up to about 5000 RPM (55 to 60 MPH), then letting off in gear and coasting back down to 20 MPH.

    Let the engine cool and change the oil and filter using conventional (non-synthetic) oil and check coolant level, top off if necessary. Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading.  Change the oil and oil filter again using conventional (non-synthetic) oil.  Keep an eye on oil level during the first thousand or so miles.

    It would be suitable to use synthetic motor oil after the second recommended oil change and mileage accumulation.



Part TypeEngine
BrandCHEVROLET PERFORMANCE
Package Height26.0
Package Width29.0
Package Length29.45
Weight465.0 PG
Part CategoryPerformance Parts
Wiring Harness IncludedNo
Spark Plug Wires IncludedNo
Air Cleaner IncludedNo
Carburetor IncludedNo
Water Pump IncludedNo
EmissionNot Legal
Flexplate IncludedNo
AssembledYes
Engine Assembly StyleLong block
Intake Manifold IncludedNo
Engine Make/SizeChevy Small Block
Flywheel IncludedNo
Rear Main Seal Style1-piece
Valve Covers IncludedYes
Horsepower250
Distributor IncludedNo
Camshaft StyleHydraulic roller tappet
Cylinder Heads IncludedYes
Computer IncludedNo
Throttle Body IncludedNo
Harmonic Balancer IncludedYes
QuantitySold individually
Rpm Power RangeIdle-5000
Engine BalanceInternal/External
Compression Ratio9.4:1
Oil Pan IncludedYes
Timing Cover IncludedYes
Spark Plugs IncludedNo
Package Qty1
Package TypeEA
