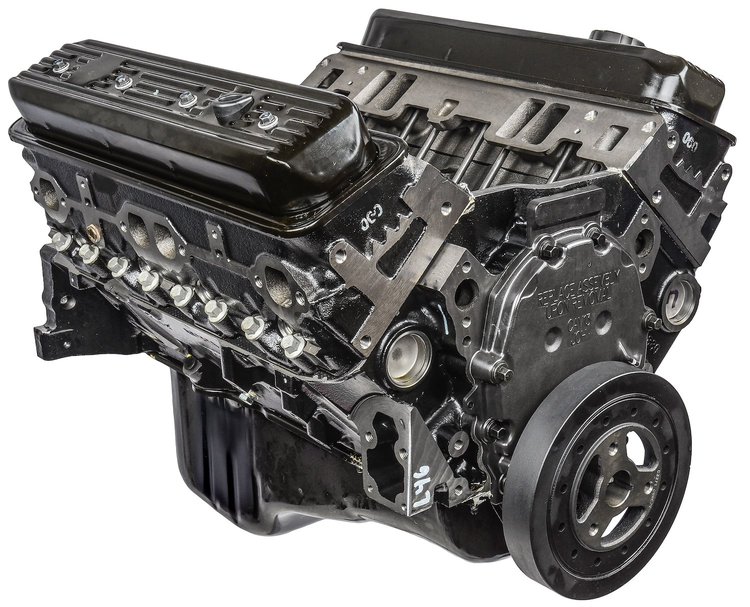

GM 5.7L 350 Long Block Cast Iron Truck Engine 1996-2002 Chevy/GMC Truck/SUV/Van

Name: GM 5.7L 350 Long Block Cast Iron Truck Engine 1996-2002 Chevy/GMC Truck/SUV/Van
Brand: CHEVROLET PERFORMANCE
SKU: 809-12681432
Price: 2034.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

5.7L 350 Truck Engine

Replacement for 809-12530282
1996-2002 Chevy/GMC Truck/SUV/Van
VIN "R"/L31 Engine
3-Year/100,000-Mile Warranty
Some exclusions may apply

Engine Break-In Procedure
Use conventional or break-in oil (non-synthetic) for the first oil change, be sure to check the oil level in the engine and prime the oil system with an engine priming tool.
Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPM's, with no-load on the engine for the first 30 minutes. This is critical to break in the camshaft.
Drive the vehicle with varying speeds and loads on the engine for the first 30 miles. Be sure not to use a lot of throttle or high RPM. Run five or six medium-throttle accelerations to about 3000 RPM (40 to 50 MPH), then letting off in gear and coasting back down to 20 MPH. Run a couple of hard throttle accelerations up to about 5000 RPM (55 to 60 MPH), then letting off in gear and coasting back down to 20 MPH.
Let the engine cool and change the oil and filter using conventional (non-synthetic) oil and check coolant level, top off if necessary. Drive the next 500 miles normally, without high RPM's (below 5000 RPM), hard use, or extended periods of high loading. Change the oil and oil filter again using conventional (non-synthetic) oil. Keep an eye on oil level during the first thousand or so miles.
It would be suitable to use synthetic motor oil after the second recommended oil change and mileage accumulation.

Free Shipping!
Capable of 255 horsepower, the GM Goodwrench long block 350 engine was created as a drop-in replacement for 1996-2002 Chevy/GMC 1/2-ton and 3/4-ton applications. Its Vortec cylinder heads feature a swirl port design. Specifications

2-Bolt Main Block (1-Piece Seal)
Nodular Iron Crankshaft
Powdered Metal Connecting Rods
Dished Hypereutectic Pistons
Compression Ratio: 9.4 to 1
Hydraulic Roller Camshaft
Lift: .414'' Intake, .428'' Exhaust
Duration at .050'': 191° Intake, 196° Exhaust
JEGS Easy Kits are designed by JEGS high performance racing professionals to help you get all the performance parts you need for your race car, hot rod or truck.
GM Warranty
Chevy Crate Engine Break-In Guide
