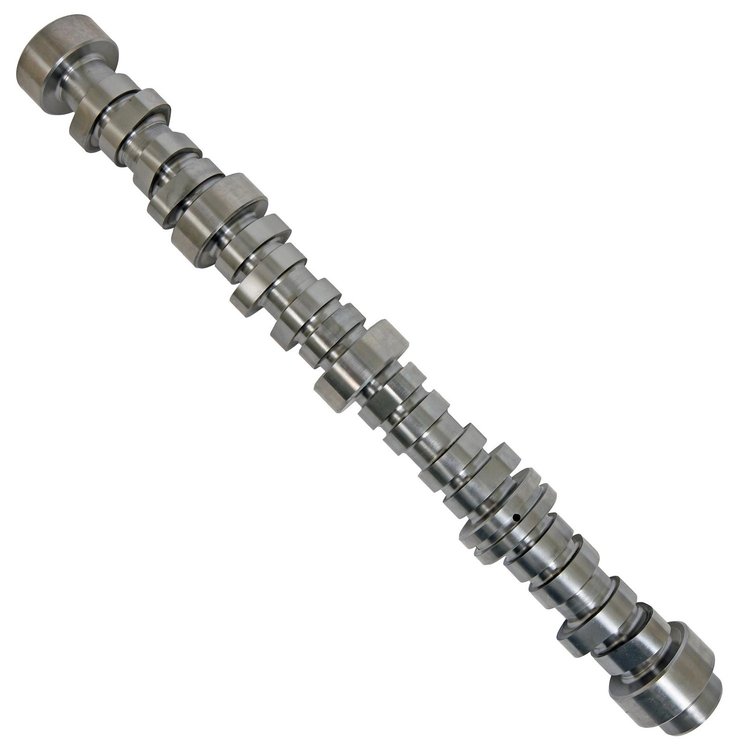

12689035 Hydraulic Roller Camshaft for 5.3L GM LS Trucks
InfoVehicle Info Needed
CHEVROLET PERFORMANCEPART NUMBER: 809-12689035

12689035 Hydraulic Roller Camshaft for 5.3L GM LS Trucks

$35999
3 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

LS-Series Engine
Hydraulic Roller Camshaft
  • 2007-2013 GM LS 5.3L
  • DOD Delete
  • Lift: .466 in. Intake / .457 in. Exhaust
  • Duration @ .050 in.: .190 in. Intake / .191 in. Exhaust
  • Lobe Separation: 114 Degrees
  • 1-Bolt Gear Attachment

    Chevrolet Performance 12689035 Hydraulic Roller Camshaft for 5.3L GM LS Truck Features:

    • Computer-controlled
    • Functions with stock valve springs and pushrods
    • Single-bolt cam gear attachment means no need for new timing gear

    Chevrolet Performance 12689035 Hydraulic Roller Camshaft for 5.3L GM LS Truck Note:

    • For use on applications wanting to delete displacement on-demand or active fuel management.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Aggressive-Performance Cams

      The camshaft is one of the most important factors in determining an engine's overall performance profile and capability. Chevrolet Performance precision-engineered Hydraulic Roller Camshafts are extensively tested and available for popular GM small block, big block and LS-series engines. To avoid possible engine damage, a distributor with a melonized steel gear must be used with steel camshafts.

    Part TypeCamshaft
    Product LineChevrolet Performance Hydraulic Roller Camshafts
    BrandCHEVROLET PERFORMANCE
    Package Height4.7
    Package Width5.0
    Package Length23.6
    Weight10.45 PG
    Part CategoryPerformance Parts
    Computer-Controlled CompatibleYes
    Lobe Separation (Deg)114
    Camshaft Gear Attachment1-bolt
    QuantitySold individually
    Part FitmentSemi Universal
    Exhaust Valve Lift With Factory Rocker Arm Ratio (0.457
    Valve Springs RequiredNo
    Intake Valve Lift With Factory Rocker Arm Ratio (I0.466
    Vendor Part Number12689035
    Package Qty1
    Package TypeEA
