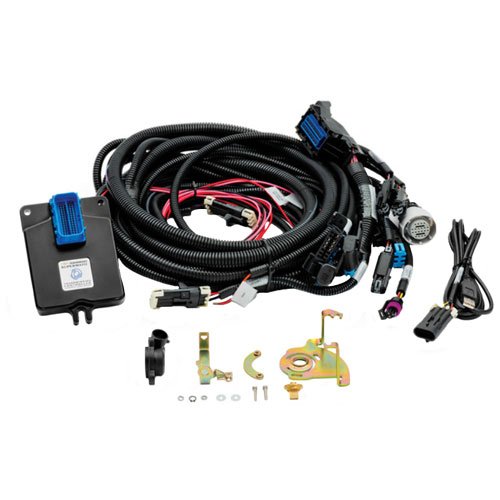

SuperMatic Transmission Controller Systems for 4L60-E with Carbureted or Ram-Jet Engines
InfoVehicle Info Needed
CHEVROLET PERFORMANCEPART NUMBER: 809-19332775

SuperMatic Transmission Controller Systems for 4L60-E with Carbureted or Ram-Jet Engines

$2,20934
ShippingShips on 09/11/2026
Lowest PriceLowest Price Guarantee

SuperMatic Connect-N-Cruise Controllers
    SuperMatic Transmission Controller
  • Required When Using GM Electronically Controlled Automatic Transmission
  • 1996-2008 4L60-E Family Transmissions
  • Compatible with p/n 809-19260380, 809-19299055, 809-19260961, 809-24283281, and 809-19329645

  • Revised, more compact design for easier installation in smaller areas.
  • Enhanced shift pressure performance for improved shift control.
  • Compatible with OBD-II code readers.
  • For Carbureted Small Block, Big Block, Ram Jet Engines
  • Pre-programmed - provides full function transmission operation aftercompleting connections
  • No laptop programming required
  • Optional features for personal preferences
    -Gearshift timing
    -Multiple shift patterns
    -Manual shift mode
    -Supports most 'Tap Shifters' or wheel-mounted paddles
    -On-Board data logging
  • Connect and cruise - simple connections with no additional wiringrequired. Connect the clearly marked leads to the engine controlharness, and you're ready to cruise!

Selecting the right transmission greatly enhances the driving enjoyment and performance feel of your vehicle. Chevrolet Performance has you covered with a range of modern, electronically controlled automatic transmissions that offers great strength and reliability. Each of their electronically controlled automatic transmissions is designed to deliver smooth, consistent and trouble-free performance on the street and stand up to high-power engines, run after run, on the drag strip.

Show More

The SuperMatic transmissions offer the ultimate in automatic transmission strength and torque capability - and every Chevrolet Performance transmission is backed by a 12-month warranty. Chevrolet Performance transmissions also deliver the fuel economy benefits that come with a modern, electronically controlled overdrive transmission. So don't worry about taking your resto-mod for that long drive. It will be comfortable and economical! Complement them with one of Chevrolet Performance's transmission controller kit for plug-and-play operation. These controller kits enable the use of 4L60-E and 4L80-E family electronically controlled transmissions in older vehicles without any programming necessary. Just plug it in and fire it up!

SuperMatic Transmission Controllers

  • Connect and cruise - simple connections with no additional wiring required. Connect the clearly marked leads to the engine control harness, and you're ready to cruise!
  • Pre-programmed - provides full function transmission operation after completing connections
  • No laptop programming required
  • Must be used with a E-67 based Chevrolet Performance electronic LS engine control system
  • Optional features for personal preferences
         -Gearshift timing
         -Multiple shift patterns
         -Manual shift mode
         -Supports most ''Tap Shifters'' or wheel-mounted paddles
         -On-Board data logging

    Programmable Transmission Controller
  • Controller allows full programming of shifting, as well as part-throttle, wide-open throttle and shift firmness control
  • Recommended for carburetor or Ram Jet applications
  • Includes wiring harness, software and connector for laptop computer
Part TypeAutomatic Transmission Control Module
Product LineChevrolet Performance SuperMatic Transmission Controllers
BrandCHEVROLET PERFORMANCE
Package Height5.9
Package Width10.3
Package Length13.5
Weight4.58 PG
Part CategoryPerformance Parts
Terminal GenderMale
Connector Color4 Black, 1 Gray, 1 White
Width (Mm)93.98
Length (In)5.3
Housing MaterialPlastic
Width (In)3.7
Connector GenderFemale
Length (Mm)134.62
Terminal Quantity52
Connector Quantity6
Vendor Part Number19332775
Package Qty1
Package TypeEA
