350ci/290 Deluxe Engine

350/290 Deluxe Engine

300 HP @ 5,100 RPM

335 ft/lbs. TQ @ 4,200 RPM

INSTALLATION NOTES:

Use a neutral balance harmonic damper
Use an internally balanced flexplate for automatic transmission or flywheel for manual transmission (not included)
Power ratings based on tests with Holley 670 CFM carburetor (not included) - recommended carburetor: 809-19170092
Does not accept Chevrolet Performance roller lifter assemblies
Designed for pre-1976 street vehicles or any off-road vehicle
Not intended for marine applications
Pre-1986-style 2-piece rear main seal block
Recommended for use in vehicles with 6,000-lb GVWR or less
Recommended intake bolts: 555-83200
Recommended intake gaskets: 809-10147994

Engine Break-In Procedure

Use conventional or break-in oil (non-synthetic) for the first oil change, be sure to check the oil level in the engine and prime the oil system with an engine priming tool.

Engines with flat tappet hydraulic cams only - Run the engine between 2,000 and 2,500 RPMs, with no-load on the engine for the first 30 minutes. This is critical to breaking in the camshaft.

Drive the vehicle with varying speeds and loads on the engine for the first 30 miles. Be sure not to use a lot of throttle or high RPM. Run five or six medium-throttle accelerations to about 3000 RPM (40 to 50 MPH), then letting off in gear and coasting back down to 20 MPH. Run a couple of hard throttle accelerations up to about 5000 RPM (55 to 60 MPH), then letting off in gear and coasting back down to 20 MPH.

Let the engine cool and change the oil and filter using conventional (non-synthetic) oil and check the coolant level, top off if necessary. Drive the next 500 miles normally, without high RPMs (below 5000 RPM), hard use, or extended periods of high loading. Change the oil and oil filter again using conventional (non-synthetic) oil. Keep an eye on oil level during the first thousand or so miles.

It would be suitable to use synthetic motor oil after the second recommended oil change and mileage accumulation.

19421179 supersedes 19355659

Forget the rebuild - the best crate engine value comes with classic chrome style!

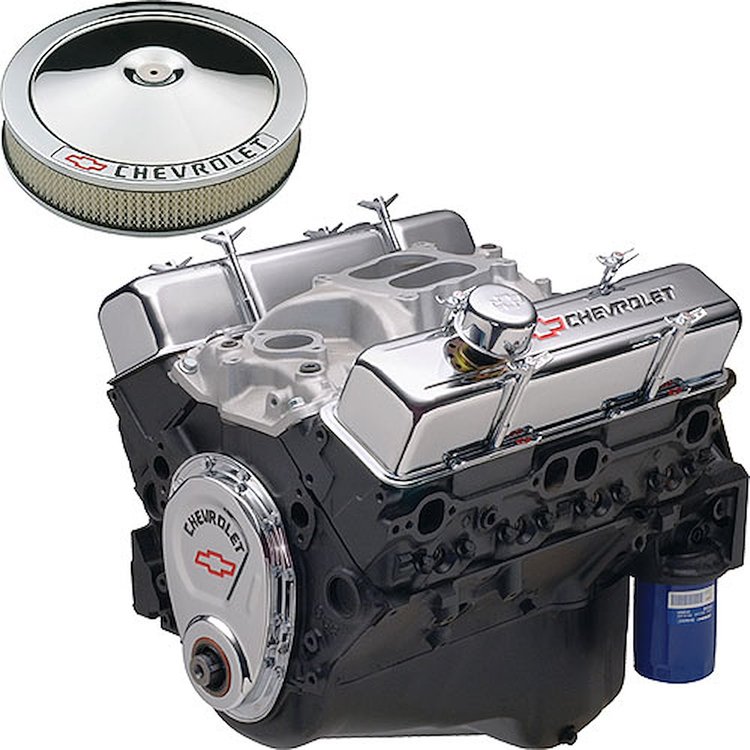

The 350/290 Deluxe combines Chevrolet Performance's most popular crate engine with an aluminum intake manifold* and chrome dress-up kit to create one of the most stylish and value-driven engines on the market. The chrome dress-up parts include the valve covers (with push-in breathers and ''T-bar''-style hold-downs), timing cover, and air cleaner.

Like all of Chevrolet Performance crate engines, the 350/290 Deluxe starts with a brand-new block. And it's a strong one, with four-bolt mains. It also includes a smooth hydraulic camshaft and durable aluminum pistons that deliver an 8.0:1 compression ratio. It's a powerful, durable engine that makes a great alternative to rebuilding with your old two-bolt block.

Chevrolet Performance has all the parts you need to get your 350/290 engine running, too, from the starter and distributor to the plug wires and more. If you want even more power, our high-performance cylinder heads will take this stout Small-Block to the next level.

350/290 DELUXE TECH SPECS:

Engine Type: Chevy Small-Block V-8
Displacement: 350ci
Bore x Stroke: 4.000'' x 3.480''
Block: Cast-iron with four-bolt main caps
Crankshaft: Nodular iron
Connecting Rods: Powdered metal steel
Pistons: Cast-aluminum
Camshaft Type: Hydraulic flat tappet
Camshaft Lift: .450'' intake / .460'' exhaust
Camshaft Duration (@.050 in.): 222° intake / 222° exhaust
Cylinder Heads: Cast Iron; 76cc combustion chambers
Valve Size: 1.94'' intake / 1.50'' exhaust
Compression Ratio: 8.0:1
Rocker Arms: Stamped steel
Rocker Arm Ratio: 1.5:1
Recommended Fuel: 87 octane
Ignition Timing: 34° Total @ 4000 rpm
Maximum Recommended rpm: 5100
Balanced: Internal

(*Chevrolet Performance recommends the Holley 670-cfm carburetor (p/n 809-19170092) for use with the 350/300 Deluxe.)
