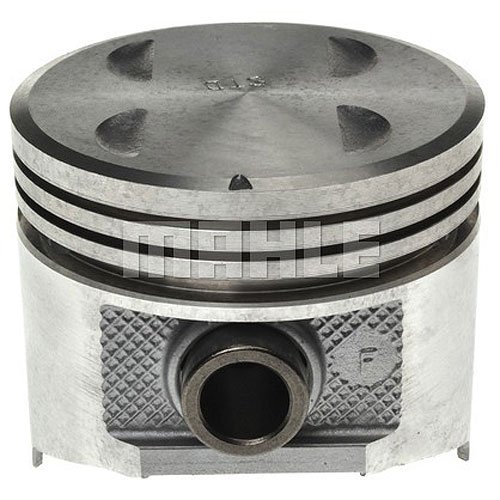

Piston Set 1968-2001 Small Block Chrysler V8 318ci (5.2L) with 3.93" Bore (+.020")
Product Discontinued
CLEVITE MAHLEPART NUMBER: 695-2242007020

Piston Set 1968-2001 Small Block Chrysler V8 318ci (5.2L) with 3.93" Bore (+.020")

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chrysler
    Piston Set
  • 1968-2001
  • Small Block Chrysler V8 318ci (5.2L)
  • 3.93'' Bore (+.020")
  • Flat Top with 4-Valve Reliefs
  • Set of 8
  • Rings Not Included

    Technical Specs:
  • Material: Aluminum
  • Bore: 3.93' (99.82mm)
  • Compression Height: 1.741"
  • Compression Ring Groove: 0.078" (5/64')
  • Second Ring Groove: 0.078" (5/64')
  • Oil Ring Groove Width: 0.188" (3/16')
  • Full Length: 3.43" (87.122mm)
  • Pin Size: 0.984" O.D. (24.999mm)
  • Pin Type: Press Fit
  • Skirt Type: Non-Coated
  • Piston Skirt Clearance: 0.002"
  • Notes: Use Piston Ring p/n 695-40069CP.020
  • Year Range and applicable VIN code: 1998-2000 "Y" ; 1999-2000 "T" ; 1998-2000 "2"

OE Quality Pistons

MAHLE Original is an American brand with one of the oldest pedigrees of supplying pistons, assemblies, cylinder liners, bearings, and valves for passenger and commercial vehicles worldwide. These piston and ring sets are cast from high temperature-resistant aluminum alloys for a high standard of excellence and performance. Designed to meet OE quality standards and even contain many premium features for an uncompromising quality not found elsewhere. Many manufacturers will even ask MAHLE to supply them with pistons for premium engine offerings. Whether you are rebuilding a project or replacing worn parts, MAHLE Original has the parts you need to get the job done.

Show More

MAHLE Original Piston Features

  • Pin Offset - Reduced engine noise
  • Compensated Ring Grooves - Assures proper ring loading and oil control
  • Expansion Controlled Designs - Tighter fitting clearances reduce engine noise, wear, emissions, and improve oil control in the long term.
  • Lightweight Design - Reduced reciprocating mass without sacrificing reliability. This reduces bearing loads, improves engine response, and makes a smoother running engine.
Part TypePiston
Product LineMAHLE Original Piston & Rings Sets
BrandCLEVITE MAHLE
Package Height3.5
Package Width3.8
Package Length3.8
Weight1.73 PG
Part CategoryReplacement Parts
Vendor Part Number2242007020
Package Qty1
Package TypeEA
