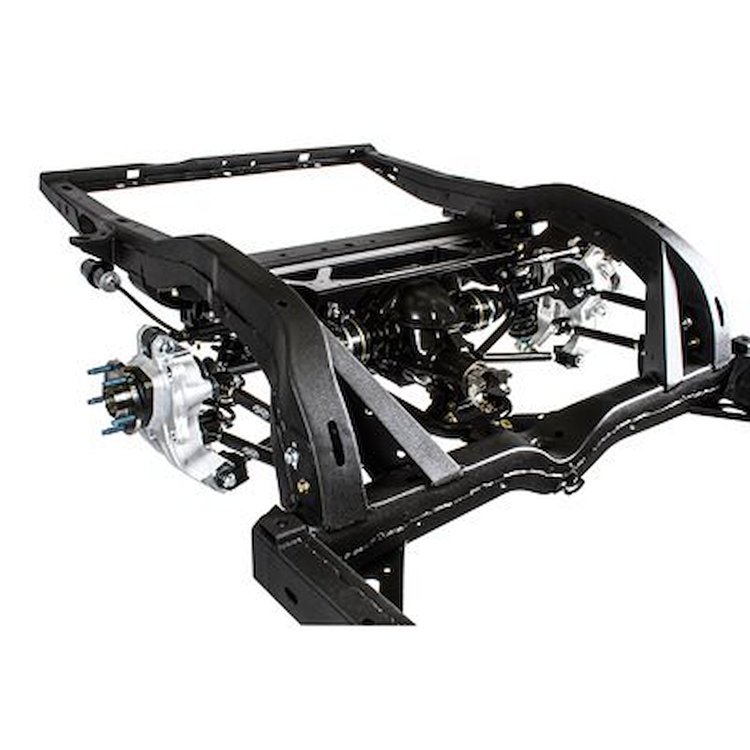

DECAlink Independent Rear Suspension System
Product Discontinued
DETROIT SPEEDPART NUMBER: 320-041740

DECAlink Independent Rear Suspension System

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

DECAlink
    DECAlink Independent Rear Suspension System
  • 1963-1979 Corvette C2/C3
  • For 17-Spline Axles
  • 600 Hp Rated
  • Non-Adjustable Shocks Option

    The Detroit Speed DECAlink Independent Rear Suspension Kit is designed specifically for the Chevrolet Corvette C2 & C3 and drastically improves the handling, ride quality and strength of the car. DECAlink is a multi-link suspension system that provides precise toe control, raises the roll center & utilizes modern CV half-shafts while eliminating the old style U-Joint half-shafts and transverse leaf spring configuration.

    Show More

    DECAlink is comprised of many newly designed in-house parts Detroit Speed created to help address the weaknesses in handling over the factory rear suspension. The multi-link rear suspension attaches to the stock rear frame using aluminum castings and a tubular crossmember. All suspension points are hard mounted which eliminates excessive deflection compared to the stock rubber mounts. The two-piece composite cradle structure provides rigid suspension mounting and allows easier assembly, maintenance and the ability to remove the rear differential without having to remove the entire suspension system. It allows the flexibility to utilize the original factory 17-spline differential, or upgrade to a more modern 30-spline differential. Exclusive forged aluminum uprights house modern wheel hubs and provide mounting points for modern suspension parts such as end links, sway bar and coilover shocks.

    One of the best qualities of this system versus the factory configuration is the fact that all suspension link lengths are adjustable. The assembly also features adjustments for rear anti-squat geometry and roll-center height. If paired with coil over shocks, spring rate and ride height can be adjusted as well. Best of all, DECAlink can install into a Corvette without any additional body modifications.

    If you're in need of an upgraded rear differential to compliment a DECAlink Suspension, DSE has you covered. Their Hammerhead rear differential is a 12-Bolt Truetrac differential with 33-spline gears in a cast aluminum housing. It ships fully assembled and includes 33-spline stub axles and a 1350 yolk. It's designed to accept any GM 12-bolt ring and pinion, so virtually all gear ratios are available.

Part TypeSuspension Kit
Product LineDetroit Speed DECAlink Independent Rear Suspension
BrandDETROIT SPEED
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number041740DS
Package Qty1
Package TypeEA
