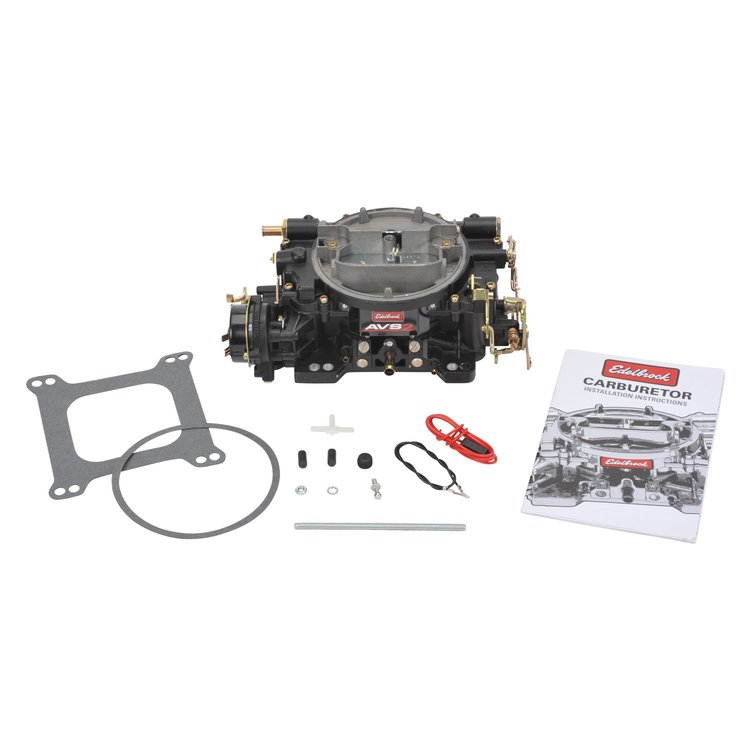

Edelbrock AVS2 Carburetor 650 CFM, Electric Choke - Black Powder-Coated Finish
350-19063
Product Q&A
View Now
Items You Need
| Ratings |
|---|
| Price |
| Brand |
650 CFM
Electric Choke
Edelbrock 19063
Features:
- (1) Base gasket and (1) top gasket included
- Ideal for use with street performance small and big-block engines utilizing a dual or single-plane intake manifold
- Annular-flow primary boosters improve off-idle and cruising performance
- (8) Equally-spaced orifices improve fuel metering from idle to the main circuit
- Timed and full vacuum ports for advancing ignition timing
Technical Specifications:
- Bore diameters: 1.440 in. primary, 1.750 in. secondary
- Main venturi diameter: 1.190 in.
- Primary metering jet: .101 in.
- Secondary metering jet: .098 in.
- Metering rod size: .070 in. x .037 in.
- 5 in. Hg (vacuum) Orange step-up spring
- Body height: 3.250 in.
Notes:
- Requires the use of a fuel filter between the fuel pump and carburetor
- NOT compatible with alcohol, race fuel or E85
- Will work with Ford automatic overdrive transmissions (AOD) - requires Lokar bracket 625-SRK-4000
- Use Edelbrock Carburetor Adapter Plate 350-2732 when installing on certain Edelbrock intake manifolds
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Specifications:
Vaccuum secondary??
