Made in USA

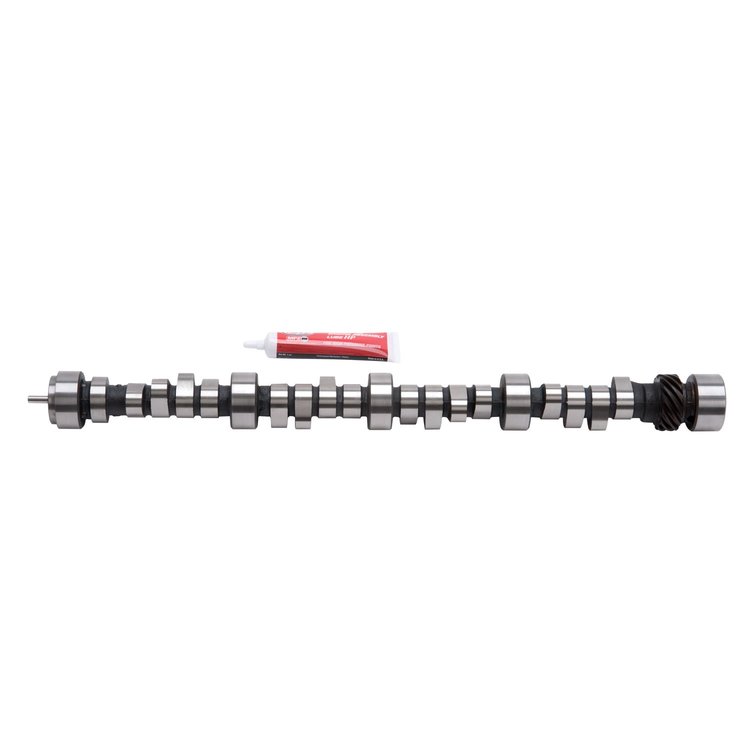

Rollin' Thunder Hydraulic Roller Camshaft for 1987-Later Small Block Chevy 283-400
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-2205

Rollin' Thunder Hydraulic Roller Camshaft for 1987-Later Small Block Chevy 283-400

$53995
ShippingShips on 09/10/2026
Lowest PriceLowest Price Guarantee

Small Block Chevy
    Rollin' Thunder Hydraulic Roller Camshaft
  • 1987-Later Small Block Chevy 283-400ci
  • Lift: .539''/.548''
  • Duration @ .050: 234°/238°
  • Advertised Duration: 296°/300°
  • Wide Lobe Center
  • 1500-6500 RPM Range

    Cam Notes: This wide lobe center camshaft works great when matched with Pro-Flo XT EFIsystem p/n 350-3528 , and Performer E-Tec cylinder heads p/n 350-60979; this combo produces440 HP / 425 ft.-lbs. of torque.
    Use with high stall torque converter only.
    Use only stock ratio rocker arms.

    Open 7° BTDC
    Close 47° ABDC
    Exhaust Timing @ .050" Open 57° BBDC
    Close 1° ATDC

    Important Application Information:
    Rollin Thunder Hydraulic Roller cams are for street high-performance and racingapplications only - not for heavy vehicles. Use with Edelbrock Performer RPM heads(or other aftermarket heads), adjustable valvetrain components, screw-in studs, high performance adjustable rocker arms and at least 9.5:1 compression ratio. Headers,high-energy ignitions, lower-than-stock rear gearing and a high-performance torqueconverter (in auto. transmission equipped vehicles) are necessary.

    INSTALLATION NOTES: Do not use late model timing chain and gear sets that are designed for emission-controlled engines. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7801.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandEDELBROCK
Package Height2.0
Package Width2.0
Package Length24.0
Weight9.0 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)234
Cam StyleHydraulic roller tappet
Exh. Duration Advertised (Deg)238
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.539
Int. Duration @ .050 In. (Deg)234
Basic Operating Rpm Range1,500-6,500
Intake Valve Lift0.539 in (13.691 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)235
Lobe Separation (Deg)114
Rpm Range1500-6500
Advertised Duration296 int./300 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.548
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.539 int./0.548 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.548 in (13.919 mm)
Advertised Intake Duration296
Intake Duration At 050 Inch Lift234
Exhaust Duration At 050 Inch Lift238
Advertised Exhaust Duration300
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift234 int./238 exh.
Valve Springs RequiredYes
Vendor Part Number2205
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
