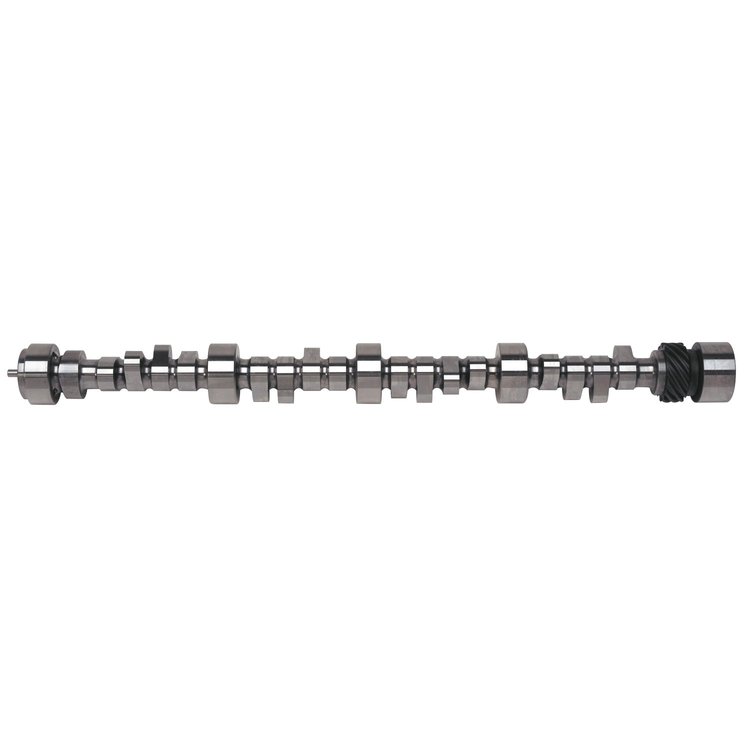

Rollin' Thunder Hydraulic Roller Camshaft for 1987-Later Small Block Chevy 283-400
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-2207

Rollin' Thunder Hydraulic Roller Camshaft for 1987-Later Small Block Chevy 283-400

$74095
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Small Block Chevy
    Rollin' Thunder Hydraulic Roller Camshaft
  • 1987-Later Small Block Chevy 283-400ci
  • Lift: .594''/.594''
  • Duration @ .050: 242°/240°
  • Advertised Duration: 305°/314°
  • 1500-6500 RPM Range

    Cam Notes: Performance rating based on small block Chevy 383. This camshaft works great when matched with Performer RPM Air-Gap intakemanifold p/n 350-7516, Thunder Series AVScarb p/n 350-1813, and Performer RPM E-Tec cylinderheads p/n 350-60989; this combo produces 460 HP / 460 ft.-lbs. of torque.
    Use with high stall torque converter only.
    Use only stock ratio rocker arms.

    Open 14° BTDC
    Close 48° ABDC
    Exhaust Timing @ .050" Open 57° BBDC
    Close 3° ATDC

    Important Application Information:
    Rollin Thunder Hydraulic Roller cams are for street high-performance and racingapplications only - not for heavy vehicles. Use with Edelbrock Performer RPM heads(or other aftermarket heads), adjustable valvetrain components, screw-in studs, high performance adjustable rocker arms and at least 9.5:1 compression ratio. Headers,high-energy ignitions, lower-than-stock rear gearing and a high-performance torqueconverter (in auto. transmission equipped vehicles) are necessary.

    INSTALLATION NOTES: Do not use late model timing chain and gear sets that are designed for emission-controlled engines. They are machined in a retarded position and are not recommended for this camshaft installation. Use Performer-Link Timing Chain Gear Set 350-7801.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCamshaft
BrandEDELBROCK
Package Height3.6
Package Width3.6
Package Length24.8
Weight9.85 PG
Part CategoryPerformance Parts
Exh. Duration @ .050 In. (Deg)240
Cam StyleHydraulic roller tappet
Exh. Duration Advertised (Deg)314
Engine Make/SizeChevy Small Block (262-400)
Intake Valve Lift With Factory Rocker Arm Ratio (I0.594
Int. Duration @ .050 In. (Deg)242
Basic Operating Rpm Range1,500-6,500
Intake Valve Lift0.594 in (15.088 mm)
Computer-Controlled CompatibleNo
Int. Duration Advertised (Deg)305
Lobe Separation (Deg)112
Rpm Range1500-6500
Advertised Duration305 int./314 exh.
Exhaust Valve Lift With Factory Rocker Arm Ratio (0.594
UsageOEM
Valve Lift With Factory Rocker Arm Ratio0.594 int./0.594 exh.
Camshaft Gear Attachment3-bolt
QuantitySold individually
Exhaust Valve Lift0.594 in (15.088 mm)
Advertised Intake Duration305
Intake Duration At 050 Inch Lift242
Exhaust Duration At 050 Inch Lift240
Advertised Exhaust Duration314
Lifter TypeHydraulic Roller
Part FitmentSemi Universal
Duration At 050 Inch Lift242 int./240 exh.
Valve Springs RequiredYes
Vendor Part Number2207
Package Qty1
Package TypeEA
No Questions
No Reviews
Please click here to download the instructions PDF file
Please click here to download the graphs PDF File
