High Pressure Universal EFI Sump Fuel Kit

Name: High Pressure Universal EFI Sump Fuel Kit
Brand: EDELBROCK
SKU: 350-3605
Price: 594.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Sump Style

Operating Pressure: 58 psi
Max Flow Rate: 67 gph

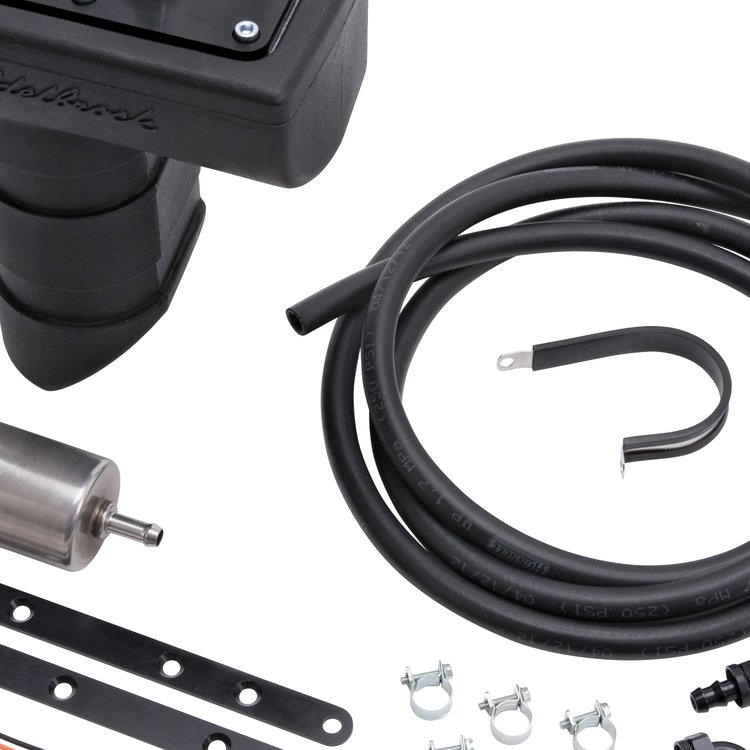

Kit Details:
This Universal Sump Fuel Kit is designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with low pressure carbureted fuel systems. It's a complete self-contained system that can be installed under the hood of any vehicle easily. The unique design of this system allows it to deliver a constant fuel pressure of 60 psi, which is necessary to operate an EFI system and will not require a fuel return line. This kit is intended to be used with the existing factory fuel tank and low pressure pump. The kit includes the fuel Sump tank with high pressure pump and regulator pre-installed, wiring harness, mounting bracket, hose, fittings and all of the necessary hardware for installation. This kit can be used with any EFI system requiring a constant 60 psi fuel pressure.
Who should use this system?
Any vehicle with an existing low pressure fuel system. Any user desiring any easy installation that delivers reliable fuel pressure performance and no potential for starvation at low fuel levels. Performs well in all weather conditions.
Features & Benefits:
Supports up to 750 HP
Easy to install
No need to run new fuel lines under vehicle
No issue with fuel starvation, due to sloshing
No fuel tank modifications required
Maintains pressure at low fuel levels
Limitations:
Will not work for 750+ HP engines
Requires an existing mechanical or electric, low pressure pump in vehicle
Requires sufficient space to mount the sump in engine compartment
Requires Harness 350-36054 when installing with E-Street EFI system #3600
Only rated up to 600 hp when used with E-Street 1 or other aftermartket systems.
Fuel Sump dimensions: 13" H x 7.75" W x 5" D
Installation Diagrams:
