Edelbrock 3814

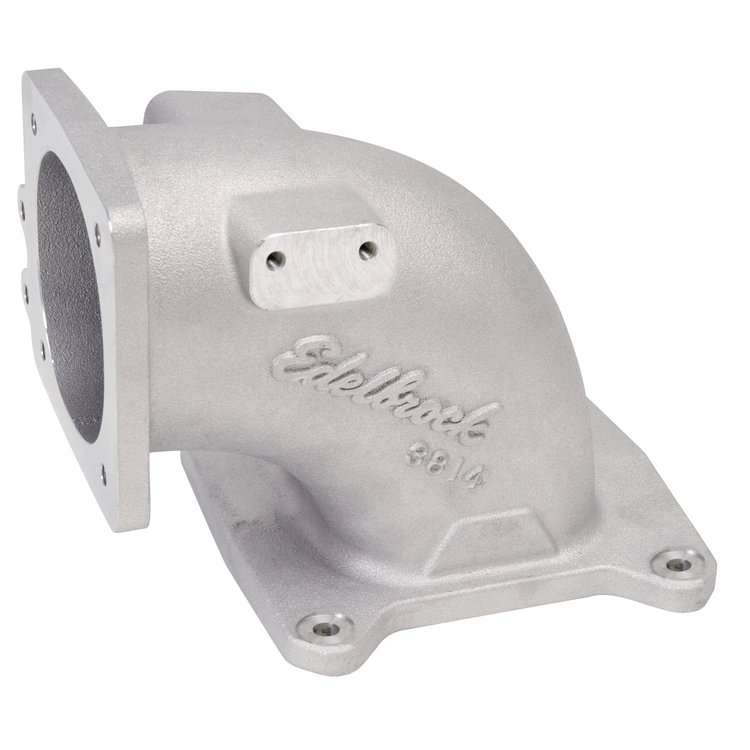

Edelbrock High Flow Intake Elbow for 95mm Throttle Body to 4500 Flange

350-3814

made in usa
Free Shipping Ships directly from the manufacturer on 10/22/19
Save $10 off $199, $45 off $499, $100 off $999. Promo Code: FALLFUN exclusions apply

$157.95
Edelbrock High Flow Intake Elbow for 95mm Throttle Body to 4500 Flange $157.95
Out of stock
QTY
High Flow Intake Elbow
  • Up to 95mm Throttle Body
  • Mounts to 4500 Flange
  • 90° Angle
  • Satin Finish
  • Edelbrock 3814 Details

    High Flow Elbows

    These elbows are designed for use in high hp extreme race applications. An internal divider optimizes flow distribution to all ports of the manifold by reducing turbulence. This high flow intake elbow has a universal bolt pattern and is the best way to adapt a single throttle body to a Dominator® 4500 style flange EFI manifold without sacrificing air flow. The throttle body flange accepts 90-95mm LS1, LS2 and Ford 5.0L based throttle bodies.

    Intake Elbow Dimensions:
  • Length (Throttle Body Centerline to Intake Flange Centerline): 8.0"
  • Bore Centerline: 6.0"
  • Overall Height: 8.86"
  • Throttle Body Flange Angle: 100°

  • Specifications:

    Quantity
    Sold individually
    Intake Elbow Finish
    Natural
    Intake Elbow Height (in.)
    8.86
    Intake Elbow Material
    Aluminum
    Intake Elbow Type
    Elbow
    Throttle Body Bore Size (mm)
    95
    Manufacturer's Part Number:
    3814
    Shipping Weight:
    9.34
    Package Height:
    14.2
    Package Depth:
    8.1
    Package Width:
    9.2

    The Edelbrock engineering team used the latest in Computational Fluid Dynamic software to design and develop these new throttle body elbows. These new elbows are the best way to adapt LS1, LS2 and Ford 5.0L-based throttle bodies to EFI manifolds with traditional 4150 style square-bore and Dominator® 4500 style mounting pads. An internal divider optimizes flow quantity and distribution into the manifold. Three versions allow EFI tuners to position the throttle body forward, backward or sideways and low/ultra low for hood clearance or higher for max airflow. Available in Satin or black powder coated finish. All Edelbrock Throttle Body Elbows include a universal throttle cable bracket.

    Example Installation:

    Some parts are not legal for use in California or other states with similar laws / regulations
