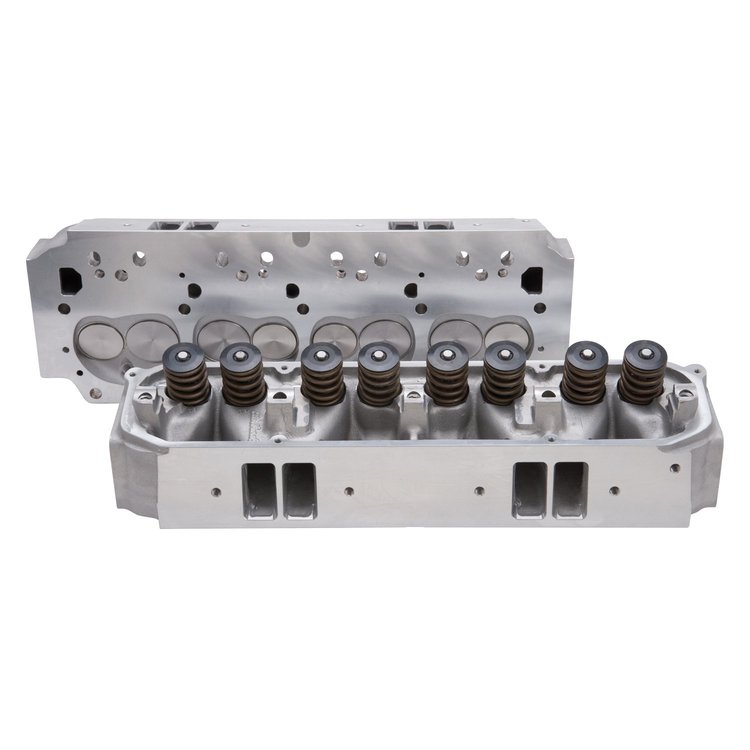

5090 E-Street Cylinder Heads for Big Block Chrysler
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-5090

5090 E-Street Cylinder Heads for Big Block Chrysler

$1,84895
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Mopar Big Block
  • 1961-1979 Big Block Chrysler 361-440ci
  • Valve Spring for Hydraulic Flat Tappet
  • Port Volume: 210cc/70cc
  • 75cc Combustion Chambers
  • Valve Size: 2.14"/1.81"
  • Max Lift: .600"
  • Assembled, Sold In Pairs


    Ideal for entry-level street performance 1961-79 Chrysler 361-440 c.i.d. Wedge engines operating in the idle to 5,500 rpm. The modern combustion chamber design also improves the combustion process and the larger than stock intake and exhaust ports move more air through your engine. These features improve the engine's efficiency, resulting in more horsepower and torque

    Specifications:
  • Combustion Chamber Volume: 75cc
  • Deck Thickness: 5/8"
  • Valve Spring Diameter: 1.55"
  • Max Lift: .600"
  • Rocker Studs: N/A
  • Pushrod Diameter: 3/8"
  • Intake Port Volume: 210cc
  • Intake Valve Diameter: 2.140"
  • Exhaust Port Volume: 70cc
  • Exhaust Valve Diameter: 1.81"

    Technical Notes:
    Not Compatible with hydraulic roller camshafts. Vacuum advance distributor may not clear cylinder head. Recommended spark plugs are Champion RC12YC or equivalent 14mm x ¾" reach with flat gasket seat.


    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28" H2O
    Valve Lift .100" .200" .300" .400" .500" .600" .700"
    Intake 79 143 207 256 278 291 -
    Exhaust 70 126 160 188 206 217 -

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Affordable Aluminum Performance Built for the Street

    Edelbrock E-Street cylinder heads deliver proven aluminum performance for street-driven muscle cars, hot rods, and performance trucks. Manufactured in the USA from A356 T-6 heat-treated aluminum, E-Street heads are engineered to provide improved airflow, efficient combustion chamber design, and reliable durability for entry-level to moderate-performance engine combinations. Larger-than-stock intake and exhaust runners help increase horsepower, broaden torque curves, and improve throttle response while maintaining excellent street manners in idle-to-5,500 RPM operating ranges. Fully assembled with premium components including stainless steel valves, manganese bronze valve guides, hardened spring cups, and screw-in rocker studs, Edelbrock E-Street cylinder heads offer enthusiasts an affordable upgrade with the quality, fitment, and engineering expected from one of the most trusted names in performance engine components.

Part TypeCylinder Head
Product LineEdelbrock E-Street Cylinder Heads
BrandEDELBROCK
Package Height8.5
Package Width12.0
Package Length26.0
Weight63.8 PG
Retainers IncludedYes
Guideplates IncludedYes
Oiling StyleThrough head
Valve Seats MachinedYes
Heat CrossoverNo
Number Of Springs Per ValveDual
Spark Plug StyleAngled
Damper Spring IncludedYes
Cylinder Head TypeStandard
Valve Stem Seals IncludedYes
Intake Valve Diameter2.14 in (54.356 mm)
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.55 in (39.4 mm)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Retainer MaterialSteel
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.81 in (45.974 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionN/A
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeMopar 361-400
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle15
Maximum Valve Lift0.6 in (15.24 mm)
Valve Seat MaterialPowdered metal
FinishCast Aluminum
Valve Springs IncludedYes
UsageStreet/Performance
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold as a pair
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)70
Exhaust Port LocationStandard
TypeComplete
Combustion Chamber Volume (Cc)75
Machined For O-RingNo
PreparationBolt On (Not Required)
Exhaust Valve Angle15
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StyleUmbrella
Intake Runner Volume (Cc)210
Cnc-Machined Exhaust RunnerNo
Vendor Part Number5090
Package Qty1
Package TypeEA
