- Edelbrock Performer RPM Cylinder Heads for Small Block Ford

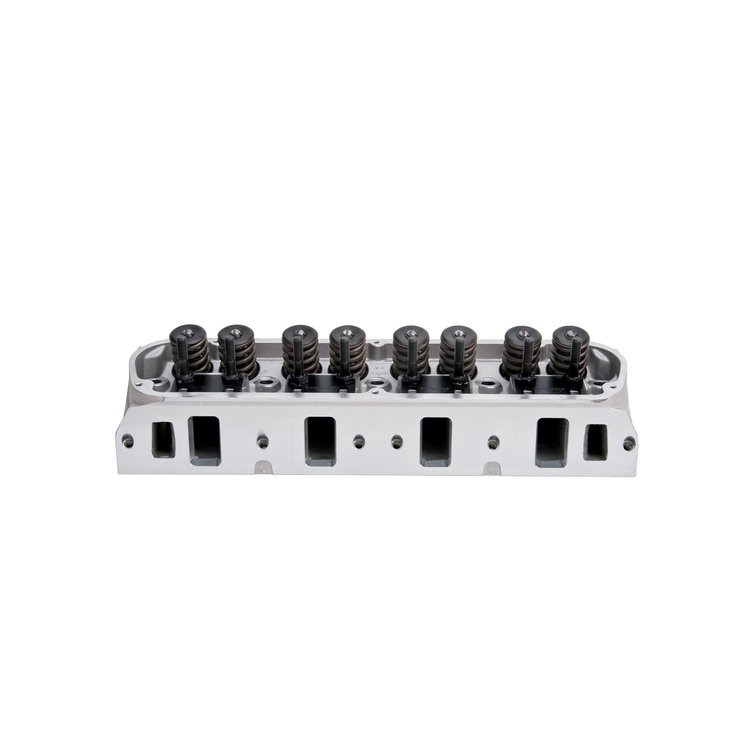

Edelbrock Performer RPM Aluminum Cylinder Head for Small Block Ford
350-60229
Items You Need
| Ratings |
|---|
| Price |
| Brand |
Performer RPM Aluminum Cylinder Heads - Complete
Designed for non-emissions 289, 302, and 351-Windsor Ford engines, these direct bolt-on heads deliver maximum performance in the 1500-6500 rpm range for all high performance street applications and our Performer RPM Power Package. Will not accept rail rockers.
Note: Aftermarket 289/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2'' bolt hole diameters (block is 7/16'' bolt hole), except 397-M-6049-P303 (''P'' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230'' shorter than a conventional spark plug and have a 5/8'' hex for easier access.
| Valve Lift | Intake | Exhaust |
| .100'' | 72 | 57 |
| .200'' | 132 | 104 |
| .300'' | 183 | 142 |
| .400'' | 216 | 159 |
| .500'' | 245 | 170 |
| .600'' | 249 | 174 |
| .700'' | 244 | 175 |
| Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28'' H2O | ||
| Combustion Chamber Volume: | 60cc |
| Intake Runner Volume: | 170cc |
| Exhaust Runner Volume: | 60cc |
| Intake Valve Diameter: | 1.90'' |
| Exhaust Valve Diameter: | 1.60'' |
| Valve Stem Diameter: | 11/32'' |
| Valve Guides: | Manganese Bronze |
| Deck Thickness: | 5/8'' |
| Valve Spring Diameter: | 1.46'' |
| Valve Spring Maximum Lift: | 0.575'' |
| Rocker Stud: | 3/8'' |
| Guideplate: | Hardened Steel |
| Pushrod Diameter: | 5/16'' |
| Valve Angle: | 20° |
| Exhaust Port Location: | Stock |
| Spark Plug Fitment: | 14mm x 3/4'' Reach, Gasket Seat |
Specifications:
Edelbrock Performer RPM Series aluminum cylinder heads are specially designed for non-emissions, high-performance street/strip applications. The Performer RPM Series heads provide excellent bolt-on performance for non-emissions 289, 302 & 351-Windsor engines. These heads are available with either 1.90" or 2.02" intake valves. The 1.90" intake valves are for use with Stock Pistons, while the 2.02" intake valves are for use with pistons that are notched for valve clearance.
Note: Hardened pushrods are required (350-9632 flat tapped only). These heads will NOT accept rail rockers. Ford 289-302 engines require the use of head bolt bushings (350-9680).
All bare heads come with valve guides and seats installed, but these heads will require final sizing and a valve job to match the valves being used.
Combustion Chamber Colume 60cc Intake Runner Volume 170cc/190cc Exhaust Runner Volume 60cc Intake Valve Diameter 1.90" / 2.02" Exhaust Valve Diameter 1.60" Valve Stem Diameter 11/32" Valve Guides Manganese Bronze Deck Thickness 5/8" Valve Spring Diameter 1.46" Valve Spring Maximum Lift .575" Rocker Stud 3/8" Guideplate Hardended Steel Pushrod Diameter 5/16" Valve Angle 20° Exhaust Port Location Stock Spark Plug Fitment 14mm x 3/4 reach, gasket seat
Made In The USA!
Does Edelbrock 60229 fit your vehicle?
1978 FORD MUSTANG II
- Liter: 5
- SubModel: GHIA
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: F
1975 FORD E-250 ECONOLINE
- Liter: 5.8
- SubModel: NORTHLAND
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 351
- Engine Type: V8 ( 5.8L / 351 )
- Engine Vin: H
1984 MERCURY CAPRI
- Liter: 5
- SubModel: RS
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: M
1996 FORD F-250
- Liter: 5
- SubModel: EDDIE BAUER
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: N
1986 FORD LTD
- Liter: 5
- SubModel: CROWN VICTORIA
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: F
1980 FORD E-150 ECONOLINE
- Liter: 5
- SubModel: CHATEAU
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: F
1986 FORD E-350 ECONOLINE
- Liter: 5.8
- SubModel: BASE
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 351
- Engine Type: V8 ( 5.8L / 351 )
- Engine Vin: H
1987 FORD E-150 ECONOLINE CLUB WAGON
- Liter: 5.8
- SubModel: CUSTOM
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 351
- Engine Type: V8 ( 5.8L / 351 )
- Engine Vin: H
1980 FORD THUNDERBIRD
- Liter: 5
- SubModel: SILVER ANNIVERSARY
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: F
1970 MERCURY CYCLONE
- Liter: 5
- SubModel: GT
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: F
1978 FORD F-350
- Liter: 5.8
- SubModel: RANGER LARIAT
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 351
- Engine Type: V8 ( 5.8L / 351 )
- Engine Vin: H
1982 FORD E-250 ECONOLINE
- Liter: 5.8
- SubModel: BASE
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exh. Port Vol.; 325-500HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;Engines Transplanted Into Uncontrolled/Pre-Pollution Vehicle; Not Legal For Use On Pollution Controlled Vehicles~ For Pre-Pollution Controlled Vehicles Or Engine Swaps~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance~ Designed For Non-Emissions 289/302/351W Ford Engines~ Max Perf. In 1500-6500 rpm Range For High Perf. Street Applications
- CUI: 351
- Engine Type: V8 ( 5.8L / 351 )
- Engine Vin: G
Need dims. of exh. port at exh man mount surface. ?" X ?" port described as square, port volume given that is of little help.
