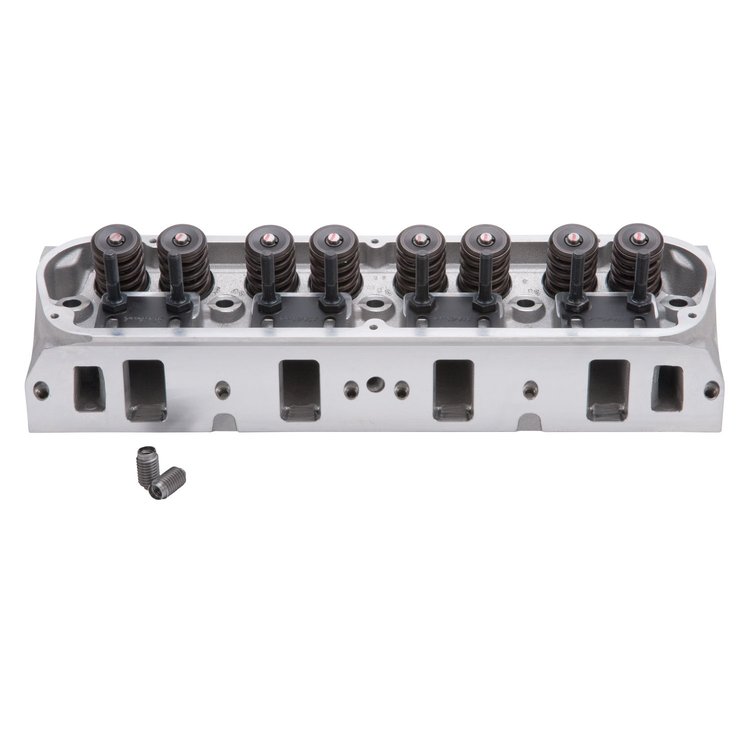

Edelbrock Performer Aluminum Cylinder Head for Small Block Ford
350-60329
Items You Need
Performer Aluminum Cylinder Heads - Complete
Edelbrock Performer 50-state street legal heads provide outstanding bolt-on performance for street high-performance 1965-95 289, 302 and 351 Windsor V8s. Capable of 300+ horsepower when matched with the Edelbrock Performer Power Package. Performer heads #350-6032 come with 1.90'' intake valves for use with stock pistons. Top-quality 3/8'' rocker studs are included on complete heads. Bronze guides and hardened interlocking seats are included on all heads. Will not accept rail rockers. Hardened pushrods required.
Note: Aftermarket 289/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2'' bolt hole diameters (block is 7/16'' bolt hole), except 397-M-6049-P303 (''P'' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230'' shorter than a conventional spark plug and have a 5/8'' hex for easier access.
| Valve Lift | Intake | Exhaust |
| .100'' | 72 | 57 |
| .200'' | 132 | 104 |
| .300'' | 183 | 142 |
| .400'' | 216 | 159 |
| .500'' | 245 | 170 |
| .600'' | 249 | 174 |
| .700'' | 244 | 175 |
| Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28'' H2O | ||
Specifications:
Edelbrock Performer Series aluminum cylinder heads are specifically designed for performance street use. These heads are 50-state legal and provide excellent bolt-on performance for 1965-95 289, 302 & 351-Windsor engines. The performer aluminum heads are available with either 1.90" or 2.02" intake valves. The 1.90" intake valves are for use with Stock Pistons, while the 2.02" intake valves are for use with pistons that are notched for valve clearance. Sold individually, two per engine required.
Note: Hardened pushrods are required (350-9632 flat tapped only). These heads will NOT accept rail rockers. Ford 289-302 engines require the use of head bolt bushings (350-9680).
All bare heads come with valve guides and seats installed, but these heads will require final sizing and a valve job to match the valves being used.
Combustion Chamber Colume 60cc Intake Runner Volume 170cc Exhaust Runner Volume 60cc Intake Valve Diameter 1.90" / 2.02" Exhaust Valve Diameter 1.60" Valve Stem Diameter 11/32" Valve Guides Manganese Bronze Deck Thickness 5/8" Valve Spring Diameter 1.46" Valve Spring Maximum Lift .575" Rocker Stud 3/8" Guideplate Hardended Steel Pushrod Diameter 5/16" Valve Angle 20° Exhaust Port Location Stock Spark Plug Fitment 14mm x 3/4 reach, gasket seat
Made In The USA!
Does Edelbrock 60329 fit your vehicle?
1981 FORD THUNDERBIRD
- Liter: 5
- SubModel: BASE
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: F
1975 FORD E-150 ECONOLINE CLUB WAGON
- Liter: 5.8
- SubModel: BASE
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 351
- Engine Type: V8 ( 5.8L / 351 )
- Engine Vin: H
1985 FORD E-150 ECONOLINE
- Liter: 5.8
- SubModel: XL
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 351
- Engine Type: V8 ( 5.8L / 351 )
- Engine Vin: H
1990 FORD E-150 ECONOLINE CLUB WAGON
- Liter: 5.8
- SubModel: XL
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 351
- Engine Type: V8 ( 5.8L / 351 )
- Engine Vin: H
1976 FORD F-100
- Liter: 5
- SubModel: BASE
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: G
1970 FORD BRONCO
- Liter: 5
- SubModel: WAGON
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: G
1981 FORD F-150
- Liter: 5.8
- SubModel: RANGER
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 351
- Engine Type: V8 ( 5.8L / 351 )
- Engine Vin: G
1966 FORD MUSTANG
- Liter: 4.7
- SubModel: BASE
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 289
- Engine Type: V8 ( 4.7L / 289 )
- Engine Vin: A
1978 FORD F-350
- Liter: 5
- SubModel: RANGER
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: G
1982 FORD F-150
- Liter: 5
- SubModel: XL
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: F
1968 FORD FAIRLANE
- Liter: 5
- SubModel: 500
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: F
1991 FORD F-250
- Liter: 5
- SubModel: CUSTOM
- Aspiration: NATURALLY ASPIRATED
- Fitment Notes: Complete; 170cc/60cc Intake/Exhaust Port Vol.; 300-450HP; Standard Exh. Port; 60cc Chamber Vol.; 1.90 in. Intake Valve/1.60 in. Exh. Valve; Single;CARB E.O. D-215-49; Requires Head Bolt Bushings PN[9680] And OE Bolts Or Head Bolt Kit PN[8552]~ Will Not Accept Rail Rockers~ [Available While Supplies Last]~ 50 State Legal~ 1.90 in. Intake Valves Are For Use With Stock Pistons~ High Flow 2.02 in. Intake Valves Are For Pistons Notched For V. Clearance
- CUI: 302
- Engine Type: V8 ( 5L / 302 )
- Engine Vin: N
