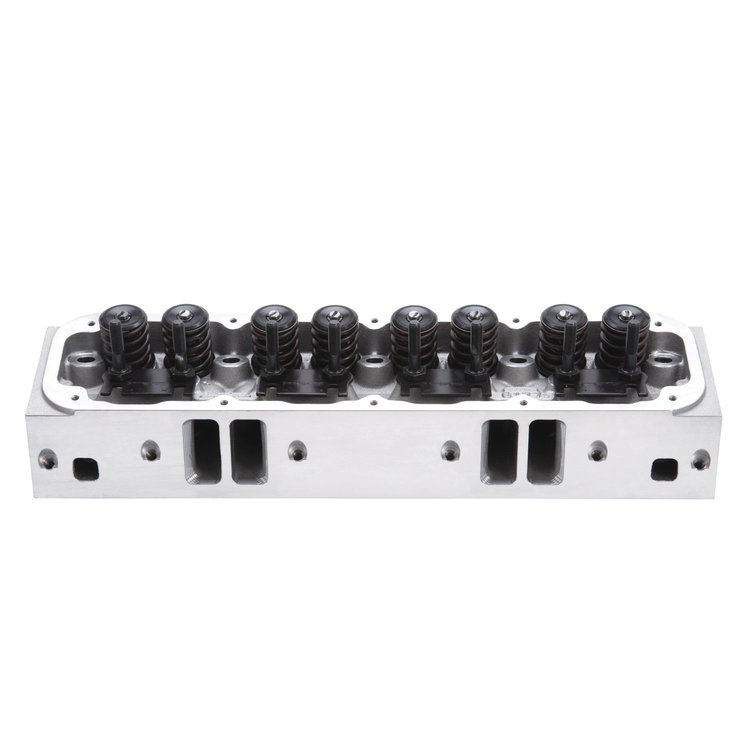

Edelbrock 61775 Performer RPM Aluminum Cylinder Head for Chrysler Magnum V8
350-61775
Product Q&A
View Now
Items You Need
| Ratings |
|---|
| Price |
| Brand |
Chrysler Magnum Performer RPM Aluminum Cylinder Heads
Edelbrock 61775 Performer RPM Aluminum Cylinder Head Features:
- Designed for 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8s
- Match with the Edelbrock RPM Air-Gap Magnum manifold 350-7577 for maximum horsepower and torque.
- Exhaust flanges in stock location to allow use of stock exhaust if desired
- Accepts widely available small-block Chevy adjustable rockers 1.6 ratio and classic valve covers 350-4177 and 350-41773
| Combustion Chamber Volume: | 58cc |
| Intake Runner Volume: | 176cc |
| Exhaust Runner Volume: | 75cc |
| Intake Valve Diameter: | 2.02'' |
| Exhaust Valve Diameter: | 1.60'' |
| Valve Stem Diameter: | 11/32'' |
| Valve Guides: | Manganese Bronze |
| Deck Thickness: | 5/8'' |
| Valve Spring Diameter: | 1.46'' |
| Valve Spring Maximum Lift: | 0.580'' |
| Rocker Stud: | 3/8'' |
| Guideplate: | Hardened Steel |
| Pushrod Diameter: | 5/16'' |
| Valve Angle: | 18° |
| Exhaust Port Location: | Stock |
| Spark Plug Fitment: | 14mm x 3/4'' Reach, Gasket Seat |
| Valve Lift | Intake | Exhaust |
| .100'' | 62 | 52 |
| .200'' | 119 | 105 |
| .300'' | 175 | 142 |
| .400'' | 225 | 169 |
| .500'' | 251 | 185 |
| .600'' | 260 | 190 |
| .700'' | N/A | N/A |
| Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28'' H2O | ||
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
